Control Bionics Neuronode Trilogy Attachment Instructions

Download this manual

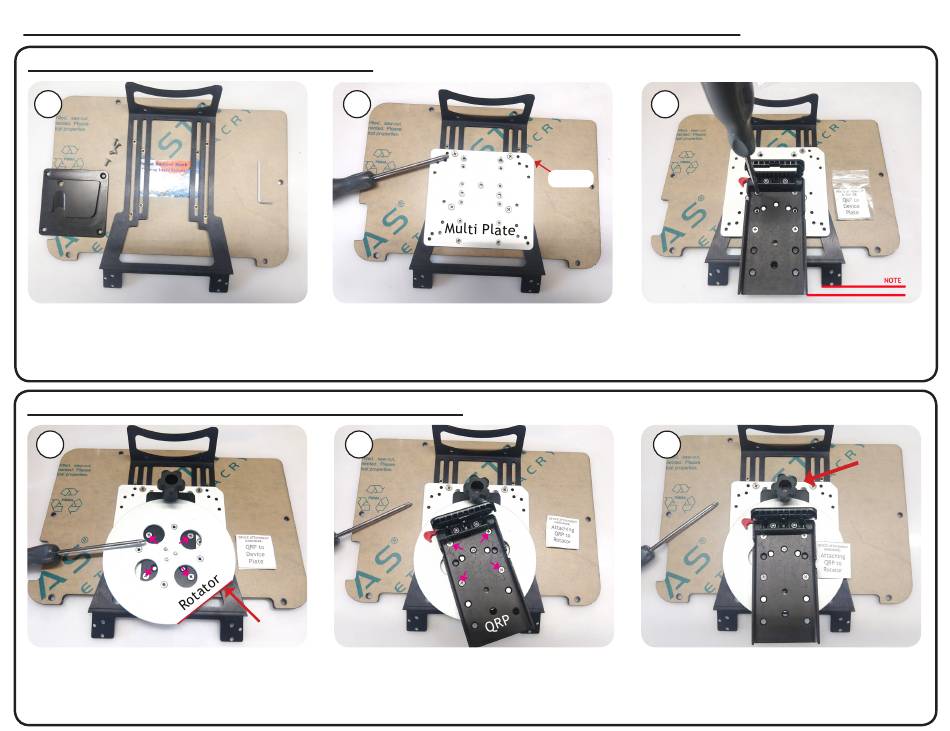

Instructions for attaching to Control Bionics Neuronode Trilogy

Attaching the QRP (quick connect plate)

Remove black plate from back.

Keep eyegaze bracket in place.

Attaching the QRP and a Universal Rotator (DP-UR)

Spin the rotator to access the attachment

holes. Use the four 8-32 x 1/4" screws to

attach the DP-UR to the Multi plate.

NOTE location of flat edge of rotator.

Attach Multi Plate with four M4-10

screws included with the Multi plate.

NOTE location of angled corner on top right

flat edge

Attach QRP to Rotator using 8-32 x 1/8"

screw (Attaching QRP to Rotator).

NOTE has to be 1/8" screws or rotator

will not spin.

NOTE

Attach QRP to Multi Plate using four

8-32 x 1/4" screws (QRP to Device Plate)

NOTE Location of QRP in relation to bottom

of eyegaze bracket.

Loosen knob on the rotator to spin

in either direction. Tighten knob when

device in at the desired "tilt"

QRP

Rotator

Knob

QRP

Page 1

Need help?

Do you have a question about the Neuronode Trilogy and is the answer not in the manual?

Page 1 Instructions for attaching to Control Bionics Neuronode Trilogy Attaching the QRP (quick connect plate) NOTE Remove black plate from back. Attach QRP to Multi Plate using four Attach Multi Plate with four M4-10 Keep eyegaze bracket in place. 8-32 x 1/4” screws (QRP to Device Plate) screws included with the Multi plate.
Page 2 Instructions for attaching to Control Bionics Neuronode Trilogy (cont.) Attaching the Universal Rotator (DP-UR), the Stand+90, and the Quick Connect Plate (QRP) Attach the Multi Plate and the Universal Open up the Stand90 and place it over Fold the Stand90 closed. Place four Rotator (DP-UR) as shown in the previous the Universal Rotator as shown.
Page 3 Instructions for attaching to Control Bionics Neuronode Trilogy (cont.) Attaching the the Quick Connect Plate (QCP) to the Multi Plate Quick Connect Plate (QCP) is used with the Quick Connect Receiver (QCR) Quick Connect Plate (QCP) Quick Connect Receiver (QCR)
