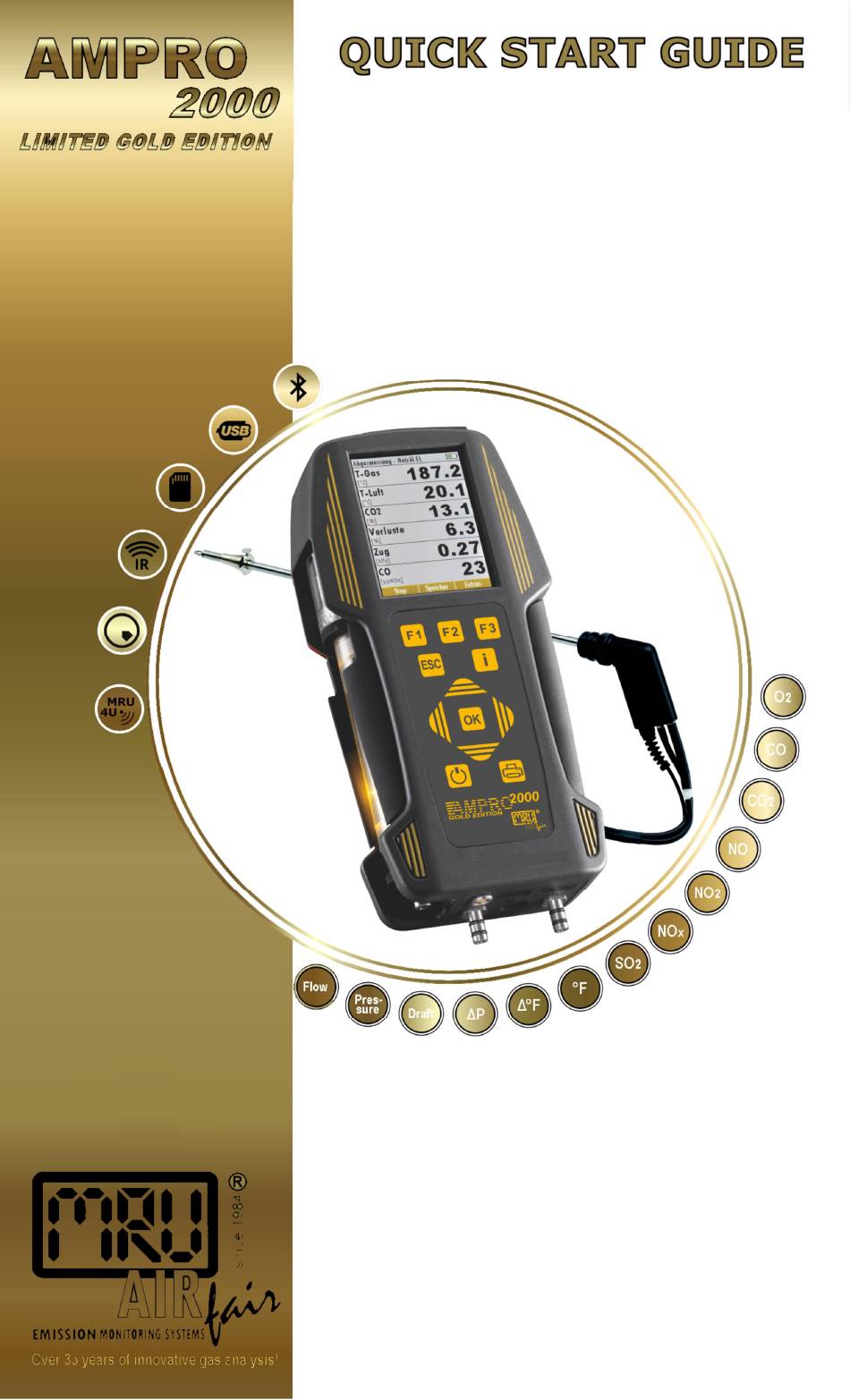

- Page 1 AMPRO 2000 – Quick Start Guide P a g e...
-
Page 2: Table Of Contents
AMPRO 2000 – Quick Start Guide INDEX ANALYZER: Introducing the AMPRO 2000 AMPRO 2000 connections (top and bottom) Display Key pad Power up the AMPRO 2000 Taking a gas measurement Modifying the measurement screen Storing measurements Viewing and changing analyzer settings Charging the battery Power down the AMPRO 2000 Leak proof test... -
Page 3: Introducing The Ampro 2000

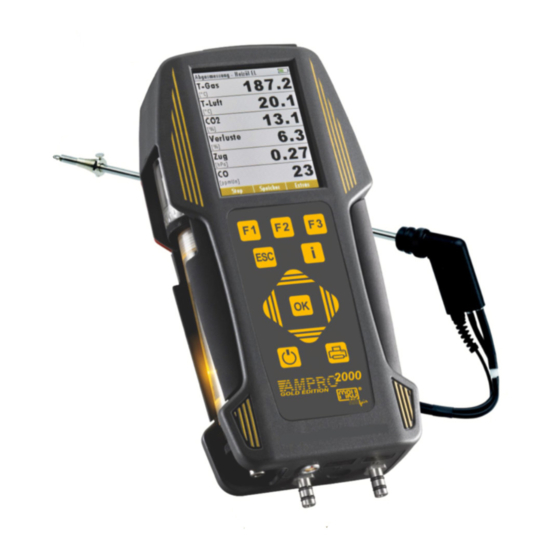

AMPRO 2000 – Quick Start Guide 1. INTRODUCING THE AMPRO 2000. · The AMPRO 2000 is unique in that it can analyze up to 7 gases – O , CO, CO , NO, NO , SO and H S in a single, compact handheld analyzer. - Page 4 AMPRO 2000 – Quick Start Guide The Display All information required to operate the analyzer is displayed as shown below. Menu bar Function key bar Display panel Menu Measurement value Zeroing active SD-Card in the slot Indication GREEN Read- and write access Indication YELLOW only Read access (SD-Card write protected)
-
Page 5: Taking A Gas Measurement
AMPRO 2000 – Quick Start Guide 3. TURN THE AMPRO 2000 ON USING THE BUTTON The screens below appears, the AMPRO 2000 automatically zeros itself every time it is switched on. The MRU Logo is Followed by this The zeroing bar is displayed briefly,... -
Page 6: Viewing And Changing Analyzer Settings
EXTRAS menu. Modify 8. HOW TO CHARGE THE INTERNAL BATTERY Connect The MRU then the When the Logo is analyzer battery is fully analyzer displayed switches charged, Trickle to the briefly…... -
Page 7: Leak Proof Test
AMPRO 2000 – Quick Start Guide HOW TO TURN THE ANALYZER OFF (power down) The analyzer can be turned off at any time but it should be clear of gases before it is turned off. Allow the analyzer to purge the sensors for at least one minute before shutting down. Press the on/off Press the OK Additional info will... - Page 8 AMPRO 2000 – Quick Start Guide Here is how it works: Important! The probe has to be connected to the analyzer, both the gas sampling line and the draft line must be connected. Once the test cap it connected to the probe tube tip, we have a closed system.
- Page 9 AMPRO 2000 – Quick Start Guide Possible reasons the test has failed. Probe handle and probe tube: Defect or missing O-Rings. Or the connection is not tight enough. Hoses: Defect hose - very common at the probe handle. Hoses: Defect hose - very common at the condensate separator port.
- Page 10 AMPRO 2000 – Quick Start Guide BLUETOOTH Make sure your analyzer has the correct Bluetooth settings! Measurement menu Extras menu Settings screen BT-LE for iOS Press F3 (extras) Press OK for settings Press F2 for Bluetooth Modify with arrow left/right The following steps have been performed by us already, but have be...
- Page 11 You have to disconnect any other devices that are paired with your phone (e.g. Bluetooth headset)! Activate Bluetooth on your phone Search for available devices Pair with the MRU analyzer Pin will be requested for older units Enter PIN 0000 or 1234...
- Page 12 AMPRO 2000 – Quick Start Guide Select your device Confirm with OK If this screen stays empty, another phone might already be paired. Disconnect the other phone first! 12 | P a g e...
- Page 13 AMPRO 2000 – Quick Start Guide iPHONE Pairing your analyzer with your Smartphone - Activate Bluetooth in your phone You can't connect your phone to the analyzer if another phone is already paired with the analyzer! You have to disconnect any other devices that are paired with your phone (e.g. Bluetooth headset)! Open Settings Select Bluetooth Activate Bluetooth...
-
Page 14: Taking A Measurement / Adding Parameters
AMPRO 2000 – Quick Start Guide Taking a measurement / adding parameters Screen while analyzer is zeroing Screen zeroing completed Select and then press Done Press to modify screen Press + for additional parameters contents Select the parameter you wish to Press "Done"... - Page 15 AMPRO 2000 – Quick Start Guide Additional Information Main page Protocols Protocols Shows saved measurements Saved measurement Click on any saved measurement Displayed as "Table" Protocols Protocols Main page Saved measurement Saved measurement / EXTRAS Displayed as "Graph" Use this button to send the measurements per email Sites Sites...
- Page 16 AMPRO 2000 – Quick Start Guide Settings Settings Settings Insert email address Change log intervals Modify measuring units Change log intervals Modify measuring units Service Device info Find a MRU service location Shows details about the connected analyzer 16 | P a g e...
