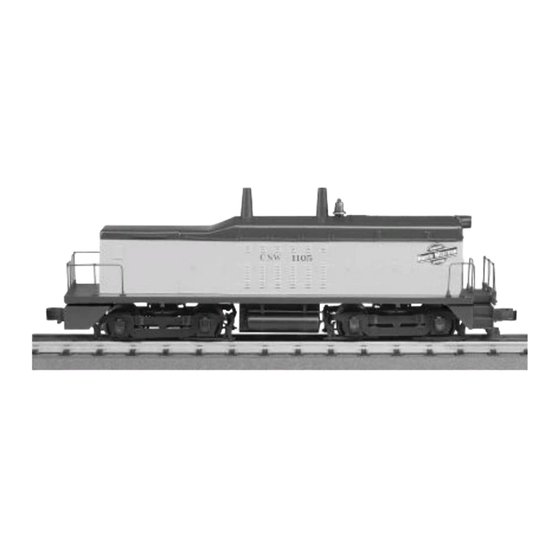

RAILKING NW-2 CALF DIESEL
ENGINE
OPERATING INSTRUCTIONS
Thank you for purchasing the RailKing production of General Motor's
NW-2 calf diesel engine. The engine's durable ABS body and die-cast
trucks are traditionally sized for operation on any O-27 Gauge track. The
engine makes a perfect compliment for a powered RailKing NW-2 Calf
diesel engine and features an operating headlight and operating leading
coupler and is completely compatible with most 3-rail locomotives, rolling
stock and accessories.
If the locomotive is being operated with a ProtoCoupler™ equipped
powered engine, a ProtoCoupler™ kit can be ordered so that the unit can be
upgraded for use with the ProtoSound® module located in the powered unit.
Contact your authorized MTH dealer or MTH directly for details on this
option.
Advertisement
Table of Contents
Related Manuals for MTHTrains Rail King NW-2 CALF DIESEL ENGINE
Summary of Contents for MTHTrains Rail King NW-2 CALF DIESEL ENGINE
- Page 1 RAILKING NW-2 CALF DIESEL ENGINE OPERATING INSTRUCTIONS Thank you for purchasing the RailKing production of General Motor’s NW-2 calf diesel engine. The engine’s durable ABS body and die-cast trucks are traditionally sized for operation on any O-27 Gauge track. The engine makes a perfect compliment for a powered RailKing NW-2 Calf diesel engine and features an operating headlight and operating leading coupler and is completely compatible with most 3-rail locomotives, rolling...
- Page 2 OIL & LUBRICATION INSTRUCTIONS In order for the engine to perform correctly and quietly, it is important that the chassis be lubricated before operation. Lubrication should include all truck block bushings and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L" in Fig. 1 below.
- Page 3 Railking NW-2 " Calf " Unit P a r t s Name and Number Part # Shell ( U.P. #D.S. 1050B ) FC-2200031 Shell ( C&NW #1105 ) FC-2200032 Handrail ( black )( right ) FC-2210006 Handrail ( black )( left ) FC-2220006 Handrail ( blacK ) FC-2250002...
- Page 5 O-27 OPERATION While the RailKing NW-2 Calf diesel is more than capable of operating on O-27 curves and switches, you may find that certain light freight cars are prone to derailing when being pulled or pushed by the RailKing NW-2 Calf through O-27 switches.
- Page 6 SERVICE & WARRANTY INFORMATION HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED ONE YEAR WARRANTY For warranty repair, do not return your product to the place of purchase unless it was purchased from Mike’s Train House in Columbia, MD. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
