Compatibility
This engine will operate on any traditional
42² Standard Gauge tubular track system,
including M.T.H.'s tubular track. It is also
compatible with most standard AC
transformers. (See page 7 for a complete list
of compatible transformers and wiring
instructions.)
PLEASE READ BEFORE USE AND SAVE

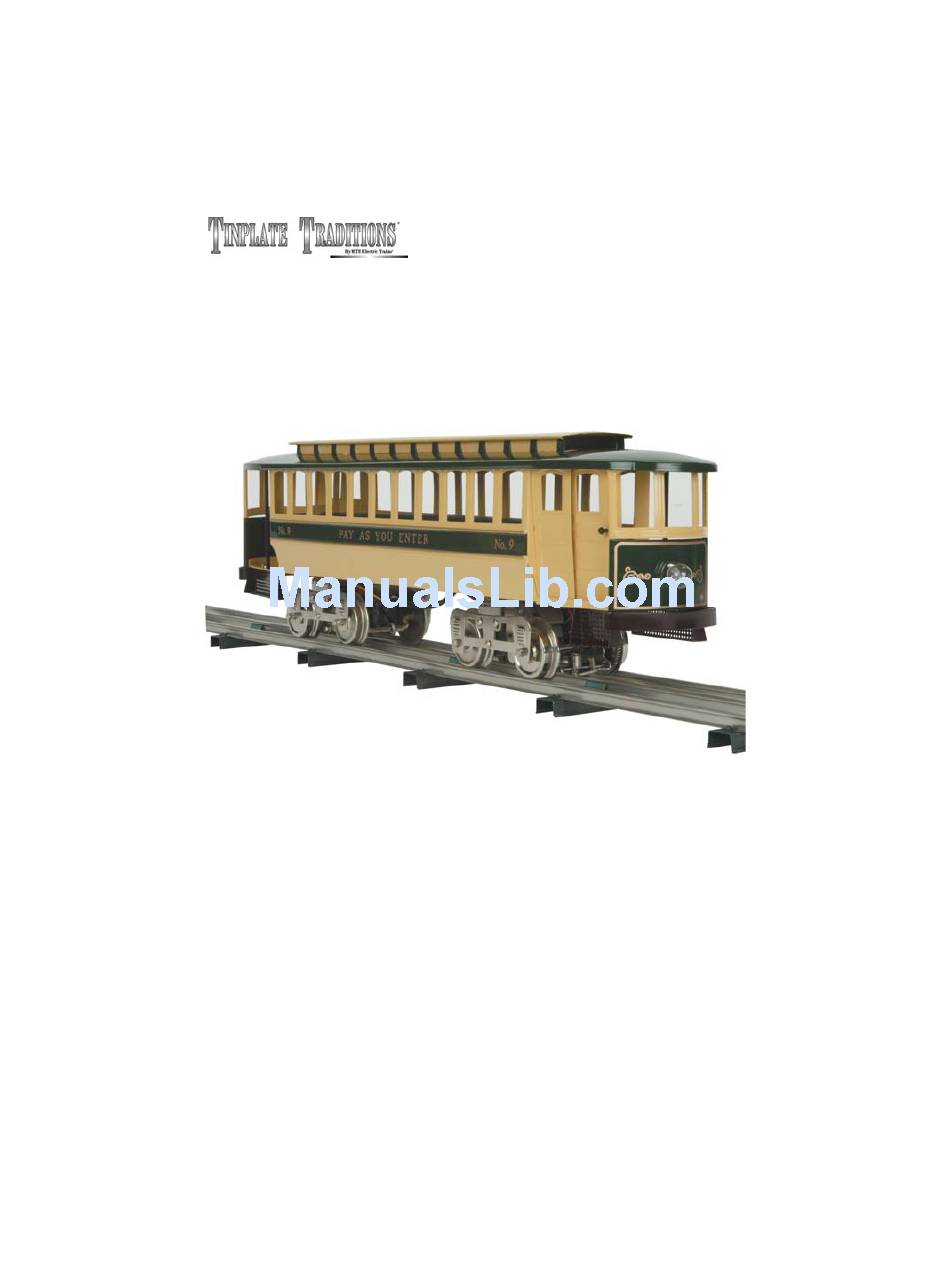

No. 9
Pay-As-You-Ente
r Trolley
OPERATOR'S MANUAL
TRADITIONAL MODEL
Advertisement
Table of Contents
Related Manuals for MTHTrains No. 9 Pay-As-You-Enter Trolley (TRADITIONAL)
Summary of Contents for MTHTrains No. 9 Pay-As-You-Enter Trolley (TRADITIONAL)
- Page 1 No. 9 Pay-As-You-Ente r Trolley OPERATOR’S MANUAL TRADITIONAL MODEL Compatibility This engine will operate on any traditional 42² Standard Gauge tubular track system, including M.T.H.’s tubular track. It is also compatible with most standard AC transformers. (See page 7 for a complete list of compatible transformers and wiring instructions.) PLEASE READ BEFORE USE AND SAVE...
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist....................3 Lubrication.....................3 Basic Operation....................4 Maintenance......................5 Lubricating and Greasing Instructions...........5 Cleaning The Wheels and Track............6 Headlight Replacement Instructions............7 Transformer Compatibility and Wiring Chart........8 Service & Warranty Information............9 Limited One-Year Warranty..............9 CAUTION: ELECTRICALLY OPERATED PRODUCT: Not recommended for children under 10 years of age. -
Page 3: Set Up Checklist
Set Up Checklist • Lubricate the locomotive • Apply power to run as described in the Basic Operating Section of this manual Lubrication DO NOT DO NOT OVER OIL OVER OIL You should lubricate the engine to prevent it from squeaking. Use light household oil and follow the lubrication points marked “L”... -
Page 4: Basic Operation
Basic Operation The Throttle knob controls how fast your No.9 Trolley will travel. The Traditional No.9 Trolley uses a mechanical reversing unit for controlling the direction of operation. Each time the power is interrupted and then re-applied, the mechanical reversing unit will change to the next state in a Neutral - Forward - Neutral - Reverse sequence. -
Page 5: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and linkage components and pickup rollers to prevent squeaking. Use light household oil, such as that found in M.T.H.'s maintenance kit. -
Page 6: Cleaning The Wheels And Track
Cleaning The Wheels and Track Periodically check the locomotive wheels and pickups for dirt and buildup, which can cause poor electrical contact and traction. Wheels can be cleaned using denatured (not rubbing) alcohol applied with a cotton swab. To clean the track, use RailKing Track Cleaning Fluid and a clean rag or denatured (not rubbing) alcohol. -
Page 7: Headlight Replacement Instructions
Headlight Replacement Instructions Unscrew the bulb counter-clockwise to remove the burned out bulb (See Figure 4) Figure 4 Replacement bulbs and wire ties are available from the M.T.H. Parts Department (order online: www.mth-railking.com; email parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia, MD 21046-1532;... -
Page 8: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note the chart details how the terminals on these transformers should be attached to your layout. Transformer Min/Max. -
Page 9: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H. - Page 10 AUTHORIZED SERVICE CENTER AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING A.S.C. RETAILER LIST ALABAMA COLORADO ILLINOIS SOUTHERLAND STATION CUSTOM RAILWAY SUPPLY BERWYN'S TOY TRAINS & HUNTSVILLE COLORADO SPRINGS MODELS 256-533-4720 719-634-4616 BERWYN 708-484-4384...
- Page 11 COAST TRAINS AND LOUISIANA MINNESOTA COLLECTIBLES AMERICA'S TRAIN YARD DON'S HOBBY CO. WALL BATON ROUGE MANKATO 732-556-9005 225-926-5592 507-387-1330 HOLLY BEACH TRAIN DEPOT MAINE MISSOURI WILDWOOD WHEELS, WINGS & THINGS SWITCH STAND 609-522-2379 LUDLOW SAINT LOUIS 207-532-6277 314-781-4458 NEW YORK L B C MODEL TRAINS MARK TWAIN HOBBY CENTER MARYLAND...
- Page 12 BUSSINGER TRAINS EASTERN DEPOT NORTH CAROLINA AMBLER TROY THE ROUNDHOUSE & 215-628-2366 570-297-1975 BACKSHOP CARY JIM'S HOBBY SERVICE J & J RAILROAD CROSSING 919-465-0810 BERWICK 570-759-2695 TURTLE CREEK DRY BRIDGE STATION 412-824-6009 MOUNT AIRY YE OLDE TRAIN & 336-786-9811 CHRISTMAS SHOPPE THE TRAIN SHOPPE &...
- Page 13 TRAIN DEPOT G B T V & TRAINS WASHINGTON MANASSAS GREEN BAY EASTSIDE TRAINS 703-335-2216 920-496-9697 KIRKLAND 425-828-4098 CHESTERFIELD HOBBIES GRAMPA'S TRAIN SHOP MIDLOTHIAN RICE LAKE WEST VIRGINIA 804-379-9091 715-234-2996 PATRICK'S TRAINS WHEELING DAVIS HOBBY SUPPLIES 304-232-0714 CANADA PORTSMOUTH TOY TRAIN WORKSHOP 757-397-1983 CUMBERLAND WISCONSIN...
