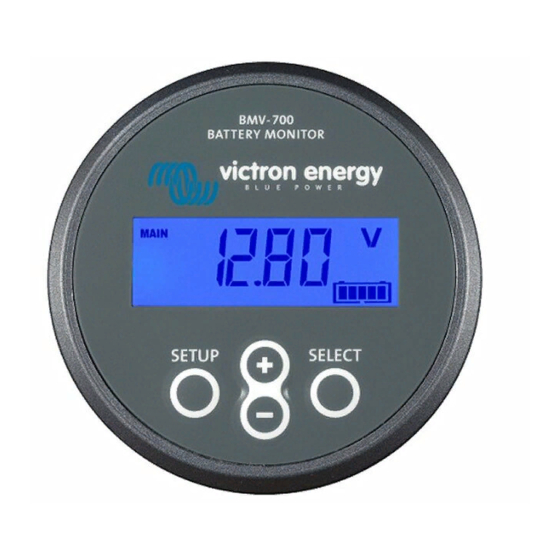

Victron energy BMV 700 Quick Installation Manual
Hide thumbs Also See for BMV 700:

Advertisement

Quick Links

1
-
Working in the vicinity of a lead acid battery is dangerous. Batteries can generate explosive gases during
operation. Never smoke or allow a spark or flame in the vicinity of a battery. Provide sufficient ventilation around
the battery.
-
Wear eye and clothing protection. Avoid touching eyes while working near batteries. Wash your hands when
done.
-
If battery acid contacts skin or clothing, wash them immediately with soap and water. If acid enters an eye,
immediately flood the eye with running cold water for at least 15 minutes and get medical attention immediately.
-
Be careful when using metal tools in the vicinity of batteries. Dropping a metal tool onto a battery might cause a
short circuit and possibly an explosion.
-
Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a battery. A
battery can produce a short circuit current high enough to melt objects such as rings, causing severe burns.
-
Disconnect the negative pole of the battery before installation.
2

Battery monitor BMV contents

3
Full manual available online

Battery safety warnings

Front plate
4 screws
Attachment flange
BMV head unit
Attachment sleeve
BMV700 product page
https://ve3.nl/3r
Page 1

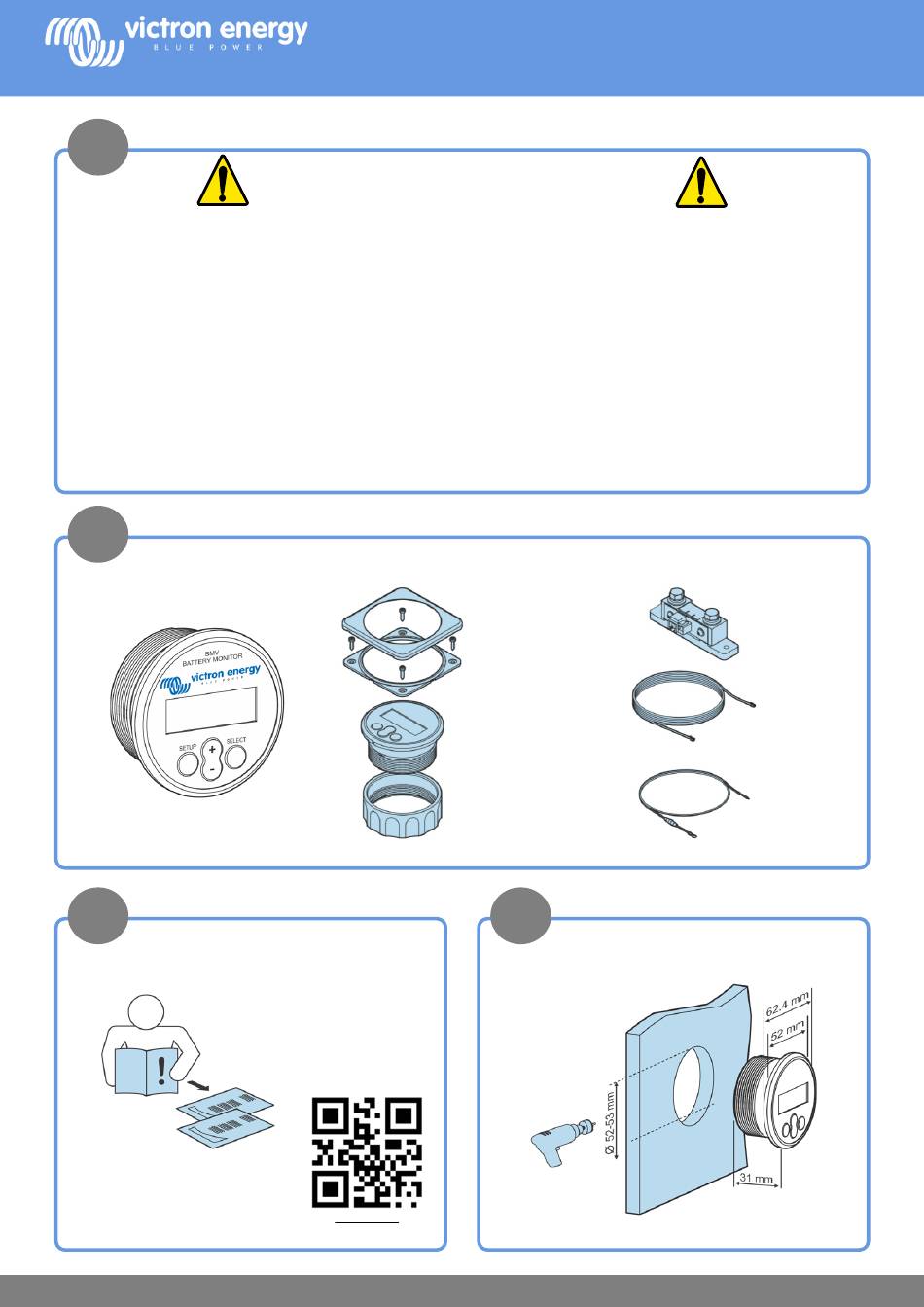

Quick installation guide
4
BMV and mounting dimensions
BMV 700
BMV shunt
RJ12 cable
(10m)
Power cable
(2m)
Rev: 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMV 700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victron energy BMV 700

  • Page 1 BMV 700 Quick installation guide Battery safety warnings Working in the vicinity of a lead acid battery is dangerous. Batteries can generate explosive gases during operation. Never smoke or allow a spark or flame in the vicinity of a battery. Provide sufficient ventilation around the battery.
  • Page 2 BMV 700 Quick installation guide Mounting option A Mounting option B Page 2 Rev: 00...
  • Page 3 BMV 700 Quick installation guide BMV connections RJ12 LOAD BATTERY ONLY CHARGER Buzzer RJ12 Shunt side view Relay Shunt top view VE.Direct Head unit top view Head unit rear view LOAD BATTERY ONLY RJ12 CHARGER Battery negative connection System negative connection ...
  • Page 4 BMV 700 Quick installation guide Make essential settings Make lithium settings Additional settings if lithium batteries are used Set the battery capacity   Set the charge efficiency at 99% Press any button   Set the Peukert exponent at 1.05 Use + and –...
