Battery monitor

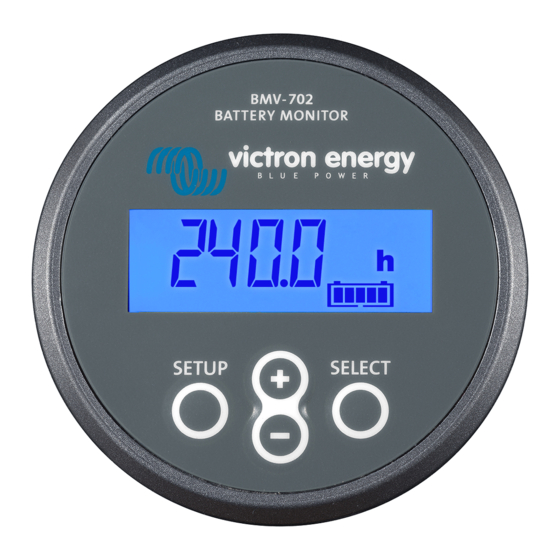

BMV-700 & BMV-702
quick installation guide
FIRST TIMERS
In case of Li-Ion batteries, several
settings may have to be changed after
the setup wizard is completed.
Please refer to the manual.
The BMV will automatically adjust itself
to the nominal voltage of commonly
used battery systems.
Please refer to the manual.
1

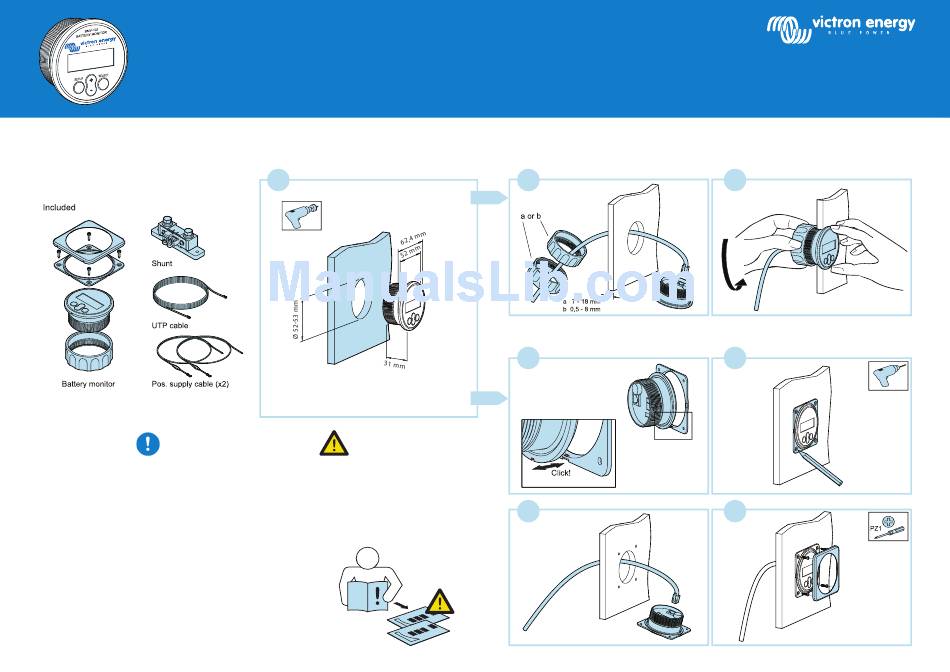

Method A
Method B
WARNING
Please read this guide carefully to avoid
incorrect connections that can cause the
battery monitor to malfunction and/or create
a fire hazard.
Disconnect the negative pole of the battery
before installation.
2
2
4
3
3
5
V2.0 01-01-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMV-700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Victron energy BMV-700

  • Page 1 Battery monitor BMV-700 & BMV-702 quick installation guide Method A Method B FIRST TIMERS WARNING In case of Li-Ion batteries, several Please read this guide carefully to avoid settings may have to be changed after incorrect connections that can cause the the setup wizard is completed.
  • Page 2 Fig. 1 Fig. 2 Wiring diagrams Connect the negative pole of the battery last! BMV-700 BMV-702 con gured for STARTER/AUXILIARY-battery monitoring. Fig. 3 BMV-702 con gured for battery TEMPERATURE monitoring Fig. 4...
  • Page 3 Connecting multiple batteries without midpoint voltage monitoring : 24 V WRONG Fig. 5 Fig. 6 Due to voltage drop over the + and - cables midpoint voltages are not identical Applying midpoint voltage monitoring : 24 V Always use busbars when applying midpoint voltage monitoring! Cables to busbars must all have the same length! This cable should be short.
  • Page 4 Connecting multiple batteries without midpoint voltage monitoring : 48 V WRONG Fig. 9 Fig. 10 Due to voltage drop over the + and - cables midpoint voltages are not identical Applying midpoint voltage monitoring : 48 V Always use busbars when applying midpoint voltage monitoring! Cables to busbars must all have the same length! This cable should be short.
