Summary of Contents for SAEVO Optilight Max

  • Page 2: Presentation Of Manual

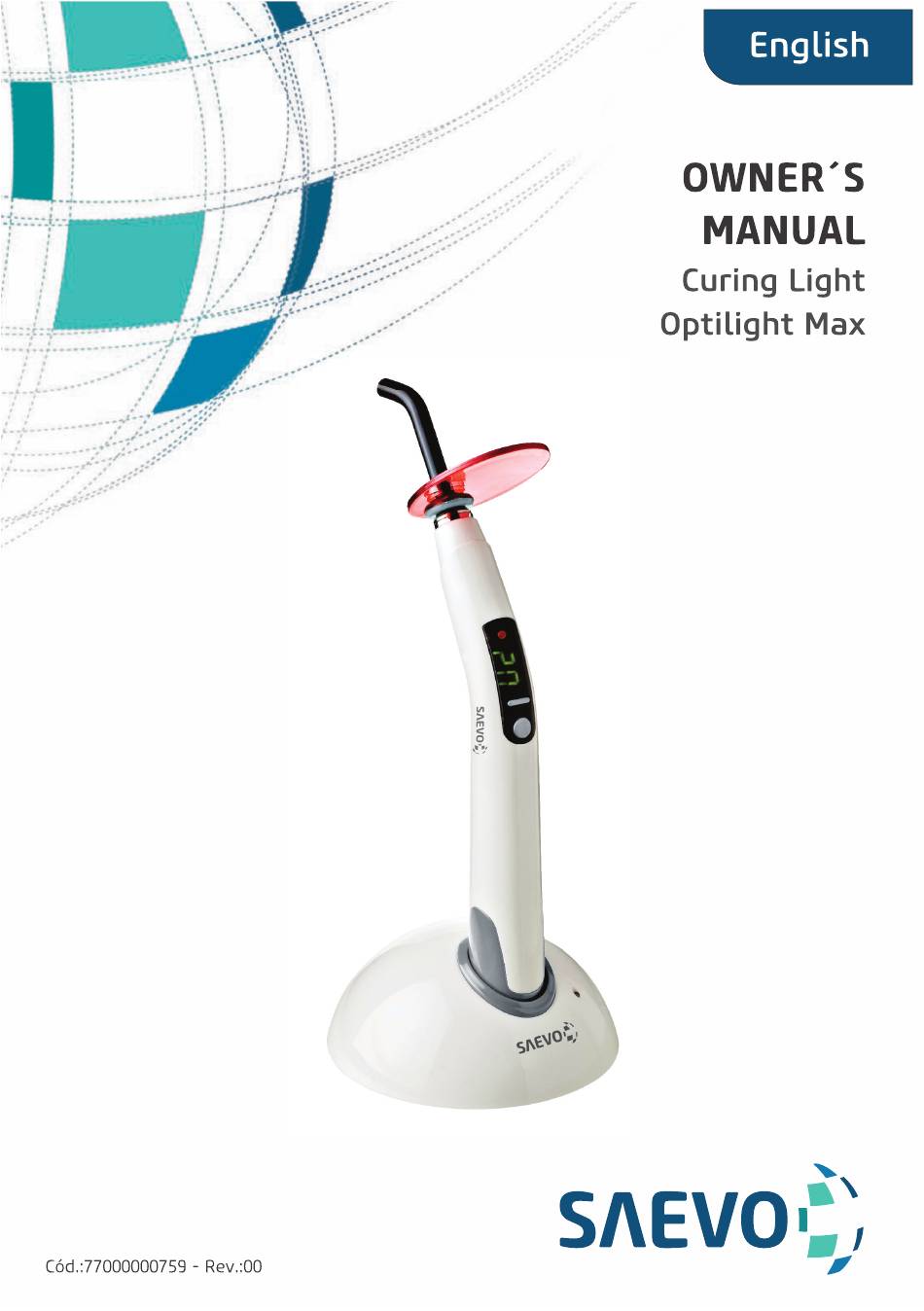

    PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Equipment for dental bleaching and photopolymerization of resins. Trade Name: Curing Light Optilight Max Model: Optilight Max Brand: Saevo Manufacturer/Distribuitor: Alliage S/A Indústrias Médico Odontológica C.N.P.J. 55.979.736/0001-45 - Insc. Est. 582.002.897.114 Rod. Abrão Assed, Km 53+450m - Cx. Postal 782 CEP 14097-500 Ribeirão Preto - S.P.
  • Page 3 INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 07 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 09 TECHNICAL SPECIFICATIONS 09 General features 11 Electromagnetic emission 15 Dimensions 16 Packing symbols 16 Simbologias do produto 17 INSTALLATION OF THE EQUIPMENT 18 OPERATION OF EQUIPMENT 20 PRECAUTIONS, RESTRICTIONS AND WARNINGS 20 Recommendations for the equipment’s conservation...
  • Page 4: Identification Of Equipment

    IDENTIFICATION OF EQUIPMENT Dear Customer Congratulations. You have made a good choice when you decided to buy a SAEVO QUALITY product comparable to the best products available in the World. This manual is a general presentation of your product and it will give you important details to help you to solve possible problems.
  • Page 5: Purpose Of The Equipment

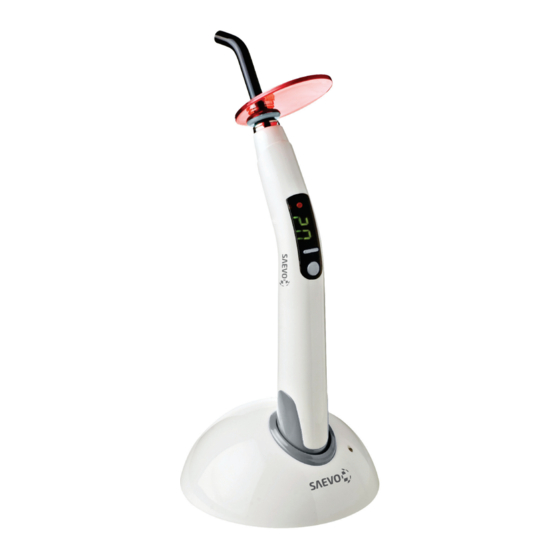

    Description of Equipment The Optilight Max is the latest generation of the appliances of photoactivation by LED light. This short name is the acronym for Light Emitting Diode, a totally different manner of emitting light, when compared with the conventional appliances of halogen light.
  • Page 6 • It does not require forced ventilation, thus avoiding noise emission. We noted that the light emitted by the Optilight Max is completely contained within the absorption interval of the photo starter, therefore it’s 100% used, whereas the conventional equipment running on halogen lamps has non-used wave-length regions.
  • Page 7: Modules, Accessories, Options And Materials Of Con- Sumption

    MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION 01 – Light Conductor 02 – Light Protection Shield 03 – Control Panel 04 - Handpiece 05 – Button to turn on the equipment and activate / interrupt operation 06 – Charging base 07 –...
  • Page 8 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION Accessories which come with the product: Light Protection Handpiece Charging base Shield Light Conductor Power supply source The content of this page is for informative purpose, so the equipment can present itself different from the illustration.
  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS General features Power Supply Ve: 100 - 240V~ - 50/60Hz Vs: 5V - 1,5 A Frequency 50/60Hz Source Power Light Source 1 LED Light Power 1200 mW/cm ± 200 mW/cm Semicondutor LED (InGaN) Wavelength 420nm - 480nm Timer 5,10,15 and 20 seconds Time Sounder a “beep”...
  • Page 10 TECHNICAL SPECIFICATIONS Degree of protection against electric shocks Applied part of Type B Degree of protection against harmful penetration of water IPX 0 Degree of saf ety of application in the presence of an anesthetic mixture inf lammable with air, oxygen or nitrous oxide It is not suitable Battery of Li-ion DC 3,7V 2200mAh...
  • Page 11: Electromagnetic Emissions

    Electromagnetic emission Electromagnetic Emissions The Optilight Max is made to be used in the electromagnetic environments specified below. The client or the user of the Optilight Max must be sure that it is used in such environment. Emission test Compliance...
  • Page 12: Guidelines And Manufacturer's Declaration - Electromagnetic Immunity

    Guidelines and manufacturer's declaration - electromagnetic immunity The Optilight Max is made to be used in the electromagnetic environments specified below. The client or the user of the Optilight Max must be sure that it is used in such environment. Immunity...
  • Page 13 Guidelines and manufacturer's declaration - electromagnetic immunity The Optilight Max is made to be used in the electromagnetic environments specified below. The client or the user of the Optilight Max must be sure that it is used in such environment. Immunity...
  • Page 14 Recommended distances between portable and mobile RF communication equipments and the Optilight Max The Optilight Max is made to be used in an electromagnetic environment in which RF disturbances are controlled. The client or the user of the Optilight Max may help preventing electromagnetic...
  • Page 15 TECHNICAL SPECIFICATIONS Dimensions (mm)
  • Page 16: Packing Symbols

    TECHNICAL SPECIFICATIONS Packing symbols It determines the maximum Packing to be transported and quantity of boxes which can be / or stored avoiding humidity, stacked during transportation and rains and wet floor. storage “as per packaging”. The packing must be stored and Packing to be transported and / transported away from direct or stored with the harrows up.
  • Page 17: Installation Of The Equipment

    INSTALLATION OF THE EQUIPMENT • For your safety the Optilight Max has an automatic bivolt power supply source of 100V~ - 240V~ - 50/60Hz. • Connect the cable of the power supply source (12) to the charging base (06) and the power supply source (10) in the socket.
  • Page 18: Operation Of Equipment

    OPERATION OF EQUIPMENT Ramp Hand piece Hand piece CORRECT INCORRECT positioning for positioning for battery charging. battery charging. • Press the button (05) to turn on the equipment. • Select the application mode pressing the selection button (09), of which the variations are: - Continuous: Maximum and continuous mode of light intensity (same luminosity from start to finish of the polymerization).
  • Page 19 OPERATION OF EQUIPMENT ATTENTION: - Recharge the battery when one of the LED continuous, ramp and pulsed are blinking; - Keep the handpiece in the charging base (connected to the mains power) when not using; - When the LED of the charging base (14) is indicating red, the battery is being charged; - The approximate recharging time is 3 hours.
  • Page 20: Precautions, Restrictions And Warnings

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Recommendations for the equipment’s conservation Your Saevo equipment has been designed and improved following modern technology standards. All devices need special care, which a lot of times are forgotten for several reasons and circumstances, because of that, here are some important reminders for your everyday.
  • Page 21: Precautions And Warnings "During The Use" Of Equipment

    - The equipment should only be operated by duly enabled and trained technicians (Dental Surgeons, Capacitated Professionals). - If any maintenance should be required, only use services of the Saevo Authorized Technical Assistance. - Do not expose the plastic parts to contact with chemical substances, use in the routines of dental treatment, such as: acids, mercury, acrylic liquids, amalgams, etc.
  • Page 22: Precautions And Warnings "After" The Use Of Equipment

    (failures, causes and solutions). If it is not possible to resolve the problem, turn off the equipment, remove the power supply cable from the socket and contact your representative (Saevo). Precautions to be adopted against foreseeable or uncommon risks, related...
  • Page 23: Corrective And Preventive Maintenance And Preservation

    CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Additional procedures for reuse The equipment can be reused in undetermined, i.e. unlimited, quantities, only needing to be cleaned and disinfected. Cleaning Important: In order to execute cleaning or any type of maintenance, ensure that the equipment is disconnected from the electrical network.
  • Page 24 For protecting your equipment, look for a Saevo technical assistance for periodic reviews as preventive maintenances. Corrective Maintenance Saevo states that the supplying of the circuits’ diagram, Part lists or any other information that permits the technical assistance by the user, can be requested, since previously agreed between the buyer and Saevo.
  • Page 25: Unforeseen Events - Solution Of Problems

    3 hours. - Overheating protection - Wait a few minutes. activated “error code: oU. - LED damaged “error - Get in touch with the Saevo code: Er. technical assistance. - The equipment is not - Resin not appropriate for the - Acquire the appropriate re- polymerizing the resins.
  • Page 26: Final Considerations

    Among the care you have to take with your equipment, the most important is regarding of the spare parts replacement. To ensure the lifetime of your device, only replace original spare parts from Saevo. They have the assurance of the standards and technical specifications required by the Saevo representative.
