Page 2: Presentation Of Manual

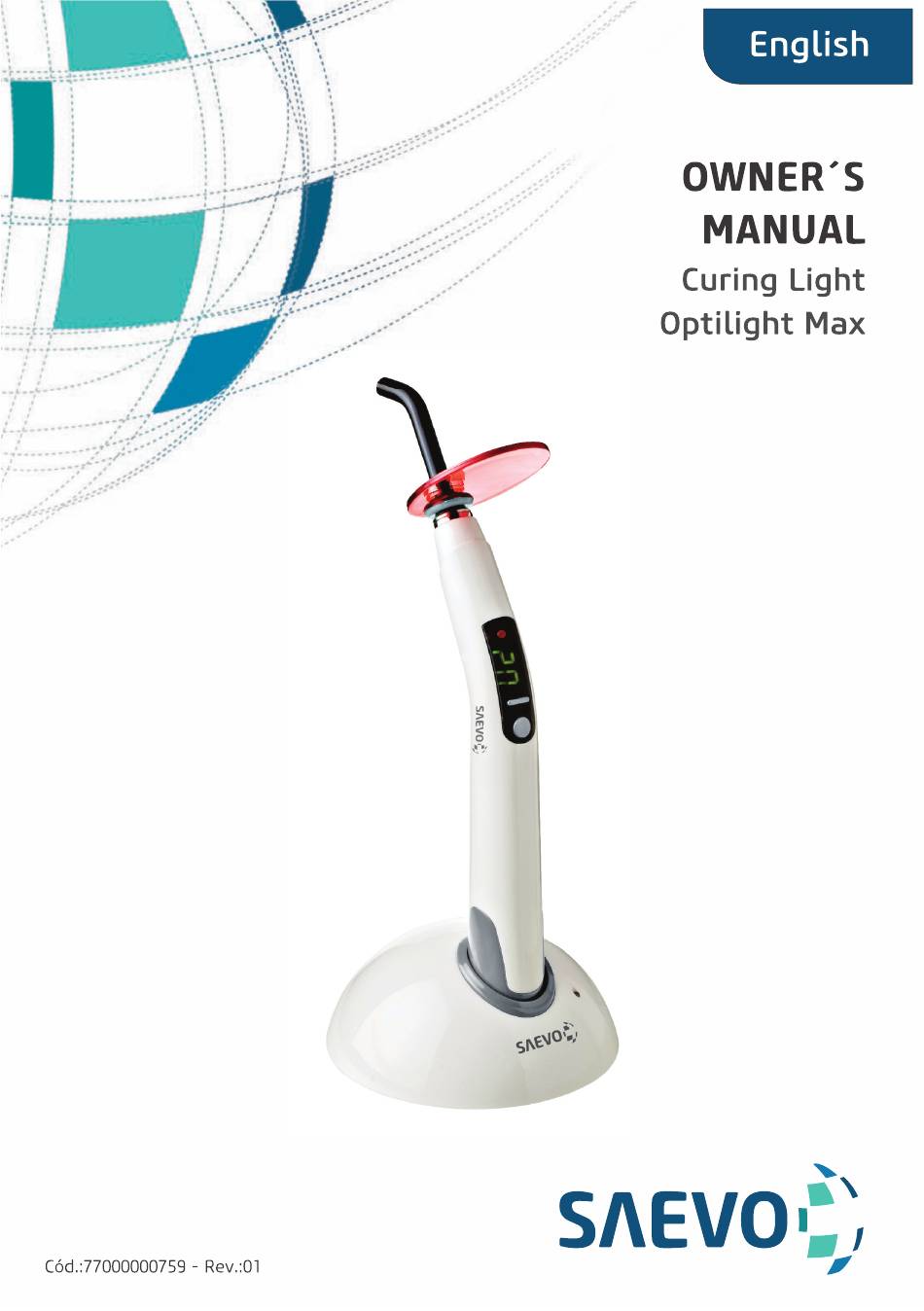

PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Equipment for dental bleaching and photopolymerization of resins Trade Name: Curing Light Optilight Model: Max Brand: Saevo Manufacturer/Distribuitor: Alliage S/A Indústrias Médico Odontológica C.N.P.J. 55.979.736/0001-45 - Insc. Est. 582.002.897.114 Rod. Abrão Assed, Km 53+450m - Cx. Postal 782 CEP 14097-500 Ribeirão Preto - S.P. -
Page 3: Table Of Contents
INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 07 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 09 TECHNICAL SPECIFICATIONS 09 General features 11 Electromagnetic emission 16 Dimensions 17 Packing symbols 17 Product symbols 18 INSTALLATION OF EQUIPMENT 19 OPERATION OF EQUIPMENT 21 PRECAUTION, RESTRICTION AND WARNING 21 Recommendations for the equipment’s conservation 21 Transport conditions, warehousing and operation... -
Page 4: Identification Of Equipment
This manual is a general presentation of your product and it will give you important details to help you to solve possible problems. Please, read it and keep this with you. IDENTIFICATION Technical Name: Equipment for dental bleaching and photopolymerization of resins Trade Name: Curing Light Optilight Model: Max... - Page 5 Description of Equipment The Optilight Max is the latest generation of the appliances of photoactivation by LED light. This short name is the acronym for Light Emitting Diode, a totally different manner of emitting light, when compared with the conventional appliances of halogen light.
- Page 6 • It does not require forced ventilation, thus avoiding noise emission. We noted that the light emitted by the Optilight Max is completely contained within the absorption interval of the photo starter, therefore it’s 100% used, whereas the conventional equipment running on halogen lamps has non-used wave-length regions.
-
Page 7: Modules, Accessories, Options And Materials Of Consumption
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION 01 – Light Conductor 02 – Light Protection Shield 03 – Control Panel 04 - Handpiece 05 – Button to turn on the equipment and activate / interrupt operation 06 – Charging base 07 –... - Page 8 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION Accessories which come with the product: Light Protection Charging base Shield Light Conductor Power supply source The content of this page is for informative purpose, so the equipment can present itself different from the illustration.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS General features Power Supply Ve: 100 - 240V~ - 50/60Hz Vs: 5V - 1,5 A Frequency 50/60Hz Source Power Light Source 1 LED Light Power 700 mW/cm Semicondutor LED (InGaN) Wavelength 420nm - 500nm Timer 5,10,15 and 20 seconds Time Sounder a “beep”... - Page 10 TECHNICAL SPECIFICATIONS Applied part Type B Degree of protection against harmful penetration of water IP00 Degree of saf ety of application in the presence of an anesthetic mixture inf lammable with air, oxygen or nitrous oxide It is not suitable Battery of Li-ion DC 3.7V 2200mAh.
-
Page 11: Electromagnetic Emission
TECHNICAL SPECIFICATIONS Electromagnetic emission This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment. Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit. - Page 12 TECHNICAL SPECIFICATIONS Guidance and manufacture’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of device should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance...
- Page 13 TECHNICAL SPECIFICATIONS Guidance and manufacture’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity IEC 60601 C o m p l i a n ce Electromagnetic environment - guidance...
- Page 14 TECHNICAL SPECIFICATIONS Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 15 TECHNICAL SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device, should assure that it is used in such an environment. Test Band Maximum Immunity...
-
Page 16: Dimensions
TECHNICAL SPECIFICATIONS Dimensions (mm) -
Page 17: Packing Symbols
TECHNICAL SPECIFICATIONS Packing symbols Stacking Limit by number Keep dry This side Up Keep away from sunlight Fragile, handle with care Temperature limitation Product symbols Type B General warning Attention Recyclable Grounding (at several points of the Refer to the instruction manual equipment) indicates the condition of being grounded Serial number... - Page 18 INSTALLATION OF THE EQUIPMENT • For your safety the Optilight Max has an automatic bivolt power supply source of 100V~ - 240V~ - 50/60Hz. • Connect the cable of the power supply source (12) to the charging base (06) and the power supply source (10) in the socket.
-
Page 19: Operation Of Equipment
OPERATION OF EQUIPMENT Ramp Hand piece Hand piece CORRECT INCORRECT positioning for positioning for battery charging. battery charging. • Press the button (05) to turn on the equipment. • Select the application mode pressing the selection button (09), of which the variations are: - Continuous: Maximum and continuous mode of light intensity (same luminosity from start to finish of the polymerization). - Page 20 OPERATION OF EQUIPMENT ATTENTION: - Recharge the battery when one of the LED continuous, ramp and pulsed are blinking; - Keep the handpiece in the charging base (connected to the mains power) when not using; - When the LED of the charging base (14) is indicating red, the battery is being charged; - The approximate recharging time is 3 hours.
-
Page 21: Precaution, Restriction And Warning
OPERATION OF EQUIPMENT Automatic disconnection: The equipment will be turned off automatically to save energy. Thus, if the appliance is not on the charging base and the user doesnot use it within 3 minutes, the appliance turns off automatically. In order to turn it on again, press the on/off button. WARNING: - Never point the blue beam of light at anybody’s eyes;... -
Page 22: Sensitivity To Predictable Environmental Conditions In Ordinary Situations Of Use
PRECAUTIONS, RESTRICTIONS AND WARNINGS Sensitivity to predictable environmental conditions in ordinary situations of - The equipment has been designed not to be sensible to interferences as magnetic fields, external electrical influences, electrostatic discharges, the pressure or the variation of pressure, since the equipment is installed and kept clean, conserved, transported and operated conforming this operation instruction. -
Page 23: Precautions And Warnings "After" The Use Of Equipment
PRECAUTIONS, RESTRICTIONS AND WARNINGS Precautions and warnings “after” the use of equipment - Turn the equipment off while in not in use for a long time. - Carry out the cleaning and disinfection after the use of the equipment, including in the first use. - Do not change any part of the equipment. -
Page 24: Corrective And Preventive Maintenance And Preservation
CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Cleaning ,Disinfection and Sterilization Attention Cleaning, disinfection, and sterilization have limited impact on the reusable parts of the equipment. Therefore, the number of repeated procedures should not exceed 20 times. Preparation for use Immediately after use, the reprocessing equipment is immersed in <40 °C tap water (drinking water quality, ‘water' mentioned in this chapter, which is required to meet this standard) to remove dirt. - Page 25 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Dry the fiber rod with a lint-free cotton cloth. Inspection and maintenance After cleaning and disinfecting, the body light guide is visually inspected for cleanliness. No visible contaminants are considered to be clean. If the body light guide is found to be corroded and rusted, stop using it immediately.
-
Page 26: Preventive Maintenance
CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Preventive Maintenance The equipment must suffer routinely measurements, following the current legislation of the country. But, never with a period superior to 3 years. For protecting your equipment, look for a Alliage technical assistance for periodic reviews as preventive maintenances. -
Page 27: Unforeseen Events – Solution Of Problems
UNFORESEEN EVENTS – SOLUTION OF PROBLEMS Upon coming across any problem in operation, follow the instructions below to check and repair the problem, and/or get in touch with your representative. Imprevistos Provável Causa Soluções Problem Probable cause Solution - The Curing Light does not - Battery in the handpiece - Recharge the handpiece on work. -
Page 28: Equipment's Warranty
EQUIPMENT’S WARRANTY This equipment is covered by the warranty terms and norms contained in the Warranty Certificate that accompany the product. FINAL CONSIDERATIONS Among the care you have to take with your equipment, the most important is regarding of the spare parts replacement.
