Summary of Contents for JUMO MAERA S29 SW

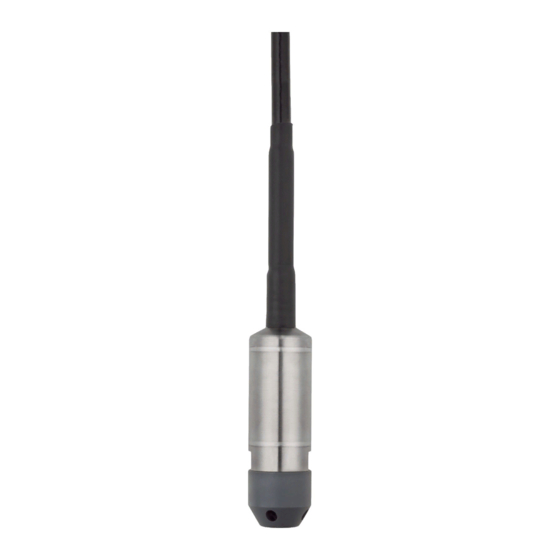

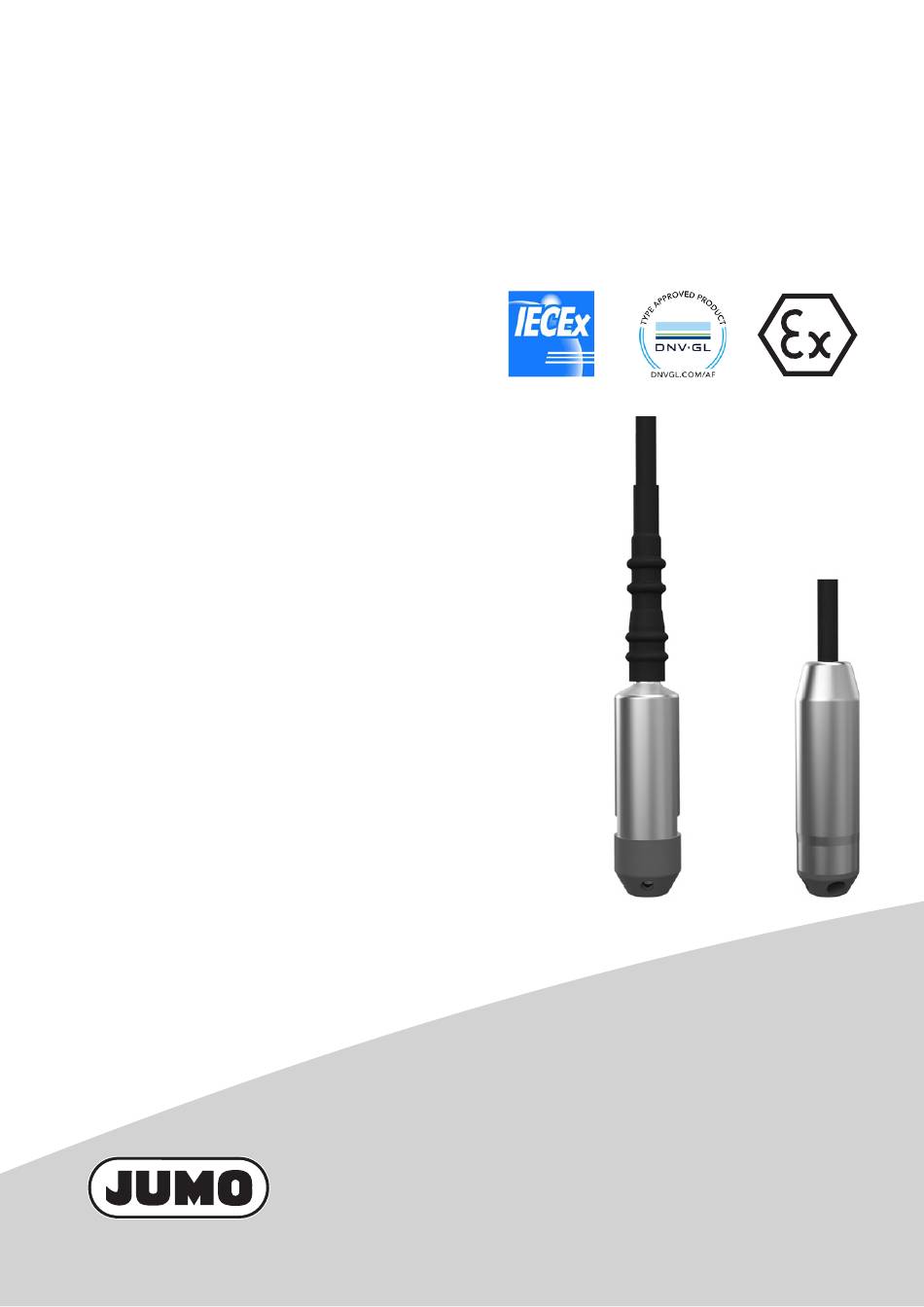

- Page 1 JUMO MAERA S29 SW Titanium or stainless steel level probe Installation Instructions 40439300T94Z002K000 V6.00/EN/00744209/2020-07-28...
-
Page 3: Table Of Contents
Contents Contents Safety information..........5 Safety signs . - Page 4 Contents Declaration of conformity........25 Examination certificate .
-
Page 5: Safety Information
Safety information 1 Safety information Safety signs 1.1.1 Warning symbols DANGER! This symbol indicates that personal injury from electrocution may occur if the appropriate precaution- ary measures are not taken. WARNING! This symbol in connection with the signal word indicates that personal injury may occur if the respective precautionary measures are not carried out. -
Page 6: Introduction
The admissible values can be found in the certificate. Brief description The JUMO MAERA S29 SW level probe is used for the continuous hydrostatic level measurement in ventilated tanks. Measuring is carried out unaffected by electrical medium features or any foam forma- tion. -
Page 7: Identifying The Device Version
Identifying the device version 3 Identifying the device version Nameplate The nameplates (examples) shown below are located on the case of the level probe. 3 6 0 3 9 Fu l d a , G E R M A N Y Fig. -
Page 8: Order Details
3 Identifying the device version Order details Basic type 404393 JUMO MAERA S29 SW – Level probe made of titanium or stainless steel Basic type extension None Shipbuilding approval (only available in titanium version [process connection material 60]) Explosion protection... - Page 9 3 Identifying the device version Electrical connection PUR cable, black, shielded (only available in stainless steel version [process connection ma- terial 20]) FEP cable, black, shielded, UV-resistant (only available in titanium version [process connec- tion material 60]) Length of connecting cable 10 m 15 m 20 m...
-
Page 10: Accessories
Use of the wire holder ensures that the cable is not deformed in an unacceptable manner. The wire holder is compatible with all JUMO level probes. The clamping range is 5.5 to 10.5 mm. The maximum tensile strength is 2.5 kN. The case is made of hot-dip galvanized steel sheet. -
Page 11: Terminal Case With Pressure Compensation Element
3 Identifying the device version 3.3.3 Terminal case with pressure compensation element The terminal case, part no. 00061206, is used for secure installation of the level probe cable. The end of the pressure equalization hose is always protected from deposits and condensation (IP65). The re- maining distribution can be performed with a standard cable without a pressure equalization hose. -
Page 12: Ex-I Repeater Power Supply / Input Isolating Amplifier
3 Identifying the device version 3.3.5 Ex-i repeater power supply / input isolating amplifier The Ex-i repeater power supply / input isolating amplifier, part no. 00577948, is designed for operating intrinsically safe transmitters (Ex-i) and mA current sources installed in potentially explosive (Ex) areas. Two-wire transmitters are supplied with energy and analog 0/4 to 20 mA measured values are transmit- ted from the Ex-area to the non-Ex-area. -
Page 13: Goods Acceptance
3 Identifying the device version Goods acceptance 1. Check the packaging for possible damage. 2. Check the scope of delivery for completeness and compliance with the order. 3. Check the level probe for possible signs of damage caused during transportation. CAUTION! The membrane at the process connection of the level probe must not be damaged. -
Page 14: Installation And Mounting
Installation and mounting 4 Installation and mounting DANGER! The installation and the operation of the level probe must be carried out in accordance with this operating manual and the applicable regulations and standards. The supply and output of the level probe must lie in the zone which is not intrinsically safe. The sensor circuit can be routed to zone 1 in accordance with device group II. - Page 15 4 Installation and mounting Level probe, hanging vertically in the medium Guide tube for level probe Cable clamp (Accessories, part no. 00061389) Sealing screw (Accessories, part no. 00333329) Terminal case with pressure compensation element (Accessories, part no. 00061206)
- Page 16 4 Installation and mounting CAUTION! The electrical connection must only be carried out by qualified personnel. CAUTION! For setup/operation, the regulations according to the German Hazardous Substances Ordinance and the German Ordinance of Industrial Safety and Health (for the relevant device version), as well as this operating manual, are binding. The maximum admissible ambient temperature of 50 °C must always be observed for the level probe.
-
Page 17: Dimensions
4 Installation and mounting Dimensions Titanium Stainless steel Cable length according to customer preference Cable length according to customer preference Protective cap Protective cap 5 bore holes for every Ø 5 mm 5 bore holes for every Ø 5 mm... -
Page 18: Connection Diagram
4 Installation and mounting Connection diagram Connection Terminal assignment Cable (electrical connection 25) (electrical connection 16) 4 to 20 mA, 2-wire Rated voltage supply DC 24 V White White 0 V/S- Gray Brown Shielding Caution: Ground the device! Black Black Ground all connected devices (such as pumps and valves) to the same potential! The voltage peaks must not exceed or fall below the specified voltage supply values! -
Page 19: Technical Data
Technical data 5 Technical data General Information Reference conditions According to DIN 16086 and DIN 61298 Measuring principle Piezoresistive sensor with separating membrane Pressure transfer medium Synthetic oil Admissible load changes > 10 million, 0 % to 100 % measuring range Mounting position Vertical/hanging from the cable Input... -
Page 20: Output
5 Technical data Output Analog output Current Output 405 4 to 20 mA, 2-wire Step response T 2 ms Burden Current 4 to 20 mA, 2-wire ≤ (U -16 V) ÷ 0.022 A (Ω) Electrical data Voltage Supply U For basic type extension 404393/ DC 16 to 28 V (nominal 24 V) For basic type extension 404393/ DC 21 to 24 V (nominal 24 V) -
Page 21: Mechanical Features
5 Technical data Mechanical features Ensure the medium durability of the material! Titanium Stainless steel Material Protective cap Process connection Titanium grade 2 Stainless steel 316 L Measuring membranes Titanium grade 2 Stainless steel 316 L Case Titanium grade 2 Stainless steel 316 L Shrink tubing Polyolefin... -
Page 22: Approvals And Approval Marks
5 Technical data Approvals and approval marks Approval Testing agency Certificates/certification Inspection basis Valid for mark numbers Eurofins Electrosuisse SEV 17 ATEX 0136 X EN 60079-0 Type 404393/362 Product Testing AG EN 60079-11 Type 404393/662 DNV GL DNV GL TAA00001TH DNV GL CG-0339, Type 404393/062 November-2016... -
Page 23: Operation, Maintenance, And Returns
Please find the declaration of decontamination on our website at: http://www.jumo.de/de_DE/support/produktservice/reparaturdienst.html Please only dismount the level probe in a currentless condition. As further damage may be caused by dismounting the device, it should be ensured that neither the level probe with membrane nor the cable suffer mechanical damage. -
Page 24: Malfunctions/Faults
Malfunctions/faults 7 Malfunctions/faults DANGER! Medium residue may cause damage to humans, the environment, and equipment! CAUTION! Irreparable damage occurs if the membrane comes into contact with sharp or hard objects! Type of fault Possible causes Measures No measuring and/or output Voltage supply is too low Check the voltage supply, signal... -
Page 25: Declaration Of Conformity
Declaration of conformity 8 Declaration of conformity Document No. / Document n°. Manufacturer / Etabli par Address / Adresse Product / Produit Name / Nom Type / Type Data sheet no. / N° Document d'identification We hereby declare in sole responsibility that the designated product fulfills the requirements of the European Directives. Nous déclare sous notre seule responsabilité... - Page 26 8 Declaration of conformity Standards/Specifications applied / Normes/Spécifications appliquées Reference / Référence Edition / Édition Comment / Remarque Valid for Type / Valable pour le type Directive / Directive Name / Nom Reference / Référence Comment / Remarque Date of first application of the CE mark to the product / Date de 1ère application du sigle sur le produit Standards/Specifications applied / Normes/Spécifications appliquées Reference / Référence...
- Page 27 8 Declaration of conformity EU type examination certificate / Certificat d'examen de type UE Reference / Référence Notified Body / Organisme notifié Identification no. / N° d'identification Valid for Type / Valable pour le type Recognized quality assurance systems of production / Systèmes de qualité reconnus de production Notified Body / Organisme notifié...
- Page 28 8 Declaration of conformity Standards/Specifications applied / Normes/Spécifications appliquées Reference / Référence Edition / Édition Comment / Remarque Valid for Type / Valable pour le type Issued by / Etabli par Place, date / Lieu, date Legally binding signatures / Signatures juridiquement valable...
-
Page 29: Examination Certificate
Examination certificate 9 Examination certificate... - Page 30 9 Examination certificate...
- Page 31 9 Examination certificate...
- Page 32 9 Examination certificate...
-
Page 33: Iecex Certificate Of Conformity
IECEx certificate of conformity 10 IECEx certificate of conformity... - Page 34 10 IECEx certificate of conformity...
- Page 35 10 IECEx certificate of conformity...
- Page 36 10 IECEx certificate of conformity...
- Page 37 10 IECEx certificate of conformity...
- Page 38 10 IECEx certificate of conformity...
-
Page 39: China Rohs
China RoHS 11 China RoHS... - Page 40 11 China RoHS...
- Page 42 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 6733 Myers Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow, Essex, CM20 2DY, UK Delivery address:...
