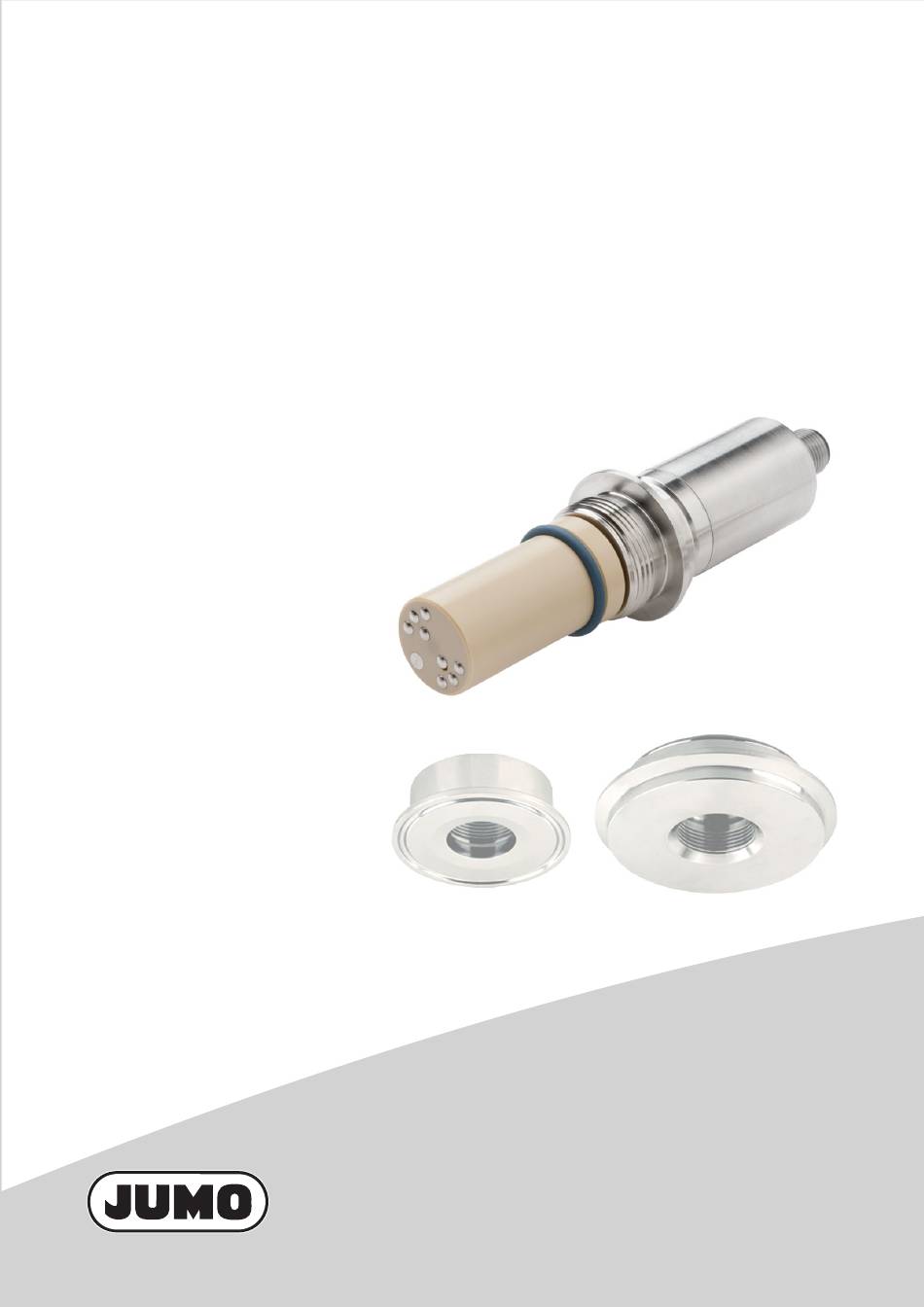

- Page 1 JUMO tecLine CR-4P Conductive 4-electrode conductivity sensor Type 202930 B 202930.0 Operating Instructions 2012-04-05/00502496...
- Page 2 WARNING: Incorrect measurement values or failure of the instrument or a transmitter connected to it, could potentially cause dangerous, imprecise dosing or a system malfunction! Suitable preventive measures to stop this happening must be in place. Note: Please read these operating instructions before commissioning the instrument. Keep the manual in a place which is accessible to all users at all times.
-
Page 3: Table Of Contents
Instrument identification ............8 Nameplate ....................8 Type description ..................8 Accessories ....................9 Mounting .................. 10 General .......................10 JUMO PEKA process connection adapter ..........11 Mounting suggestions ................11 Installation ................15 Electrical connection ..................15 Terminal assignment and wiring colors .............15 CR-4P cable ....................16 Connection example ..................17... -
Page 5: Typographical Conventions
1 Typographical conventions Warning signs Danger This symbol is used when there may be danger to personnel if the instructions are ignored or not followed correctly! Caution This symbol is used when there may be damage to equipment or data if the instructions are ignored or not followed correctly! Reference signs Note... -
Page 6: Description
1 µS/cm to 600 mS/cm, with just one measuring sensor. The hygienic design of the sensor and the EHEDG-certified system for process connection (JUMO PEKA), mean that it can be used in pharmaceutical and food technology without difficulty. JUMO PEKA is an adapter system that combines the measuring sensor with the process connection. - Page 7 2 Description Function current/voltage control voltage/current voltage voltage measurement The measuring sensors have two pairs of electrodes. The transmitter applies alternating current at the outer pair of electrodes. A voltage is released at the inner electrodes - subject to the conductivity of the measuring material. The transmitter acquires the voltage and uses it to calculate the electrolytic conductivity value.
-
Page 8: Instrument Identification
3 Instrument identification Nameplate On the measuring sensor JUMO GmbH & Co. KG Fulda, Germany www.jumo.net Typ: 202930/10-1005-997-83/000 VARTN: 20/00123456 F-Nr.: 01234567 01 0 0942 0002 Cell M: 0,30 1/cm The date of manufacture is encoded in "F-Nr." (serial number): 0942 means year of manufacture 2009/calendar week 42. -
Page 9: Accessories
Accessories Designation Sales No. CR-4P cable, 5 m, made up, with M12 connector 00528699 CR-4P cable, 10 m, made up, with M12 connector 00528700 JUMO PEKA process Material Sales No. connection adapter for Varivent DN 40-125 Stainless steel 1.4435/316L 00445046 Varivent DN 40-125 Stainless steel 1.4435/316L;... -
Page 10: Mounting
The measuring sensor must not be modified mechanically (e.g. shortened, drilled, ground). A minimum distance of at least two meters must be maintained when installing several JUMO tecLine CR-4P type conductivity sensors. Installation position The conductivity sensor can be mounted in any position. But it is essential to make sure that the measuring sensor electrodes are fully immersed in the measuring material. -
Page 11: Jumo Peka Process Connection Adapter
4 Mounting JUMO PEKA process connection adapter The EHEDG-certified system for process connection – JUMO PEKA – allows it to be used in pharmaceutical and food technology without difficulty. JUMO PEKA is an adapter system that combines the measuring sensor with the process connection. - Page 12 JUMO tecLine CR-4P conductivity sensor. The DN xx clamp adapter, DIN 32676 is not supplied by JUMO and must be provided by the customer! The clamp DN xx T-piece, DIN short, similar to DIN 11852 is not supplied by JUMO and must be provided by the customer!
- Page 13 JUMO tecLine CR-4P conductivity sensor. The DN xx threaded adapter, DIN 11864 is not supplied by JUMO and must be provided by the customer! The DN xx T-piece is not supplied by JUMO and must be provided by the customer!
- Page 14 JUMO tecLine CR-4P conductivity sensor. Collar clamp adapter NKS DN 40, Form A, DIN 11864-3 is not supplied by JUMO and must be provided by the customer! The DN xx T-piece is not supplied by JUMO and must be provided by the customer!
-
Page 15: Installation
5 Installation Electrical connection • Lay the input, output, and supply lines so they are physically separated from each other and are not parallel • If possible, use the CR-4P cable (see Accessories) to connect the conductivity sensor; do not lay the connecting cable close to components or lines through which current is flowing •... -
Page 16: Cr-4P Cable
5 Installation CR-4P cable Use only the CR-4P cable for conductivity sensor connection: • CR-4P cable, 5 m, made up, with M12 connector Sales no.: 00528699 • CR-4P cable, 10 m, made up, with M12 connector Sales no.: 00528700 M12 cable socket: metal, 8-pin Cable diameter: 7.5 mm... -
Page 17: Connection Example
Cable routing in he transmitter Run the connecting cables through the JUMO AQUIS 500 CR cable glands. Locate the measuring lead as shown in the diagram. Fasten the measuring lead to the screen with the clip (3). - Page 18 Terminal 4 - BL Terminal 8 - YE Terminal 9 - GN Terminal 10 - BN Connection of JUMO dTRANS CR 02 Row 1 (a) Option 1 (b) Option 2 (c) Option 3 Row 2 Main input board (conductivity/resistance/temperature/standard signal)
-
Page 19: Calibration
General JUMO tecLine CR-4P conductivity sensors are exactly gaged at the factory. The cell constant of every measuring sensor is documented both on the cell stem and on the calibration certificate that is also supplied. -
Page 20: Maintenance/Troubleshooting
7 Maintenance/troubleshooting Cleaning the conductivity sensor Conductive conductivity sensors are not authorized for use in highly adherent, oily or glutinous media - we recommend using our inductive conductivity measuring instruments here! After cleaning the conductivity sensor, always rinse it with water! The conductive conductivity sensor electrodes are in direct contact with the measurement medium. -
Page 21: Troubleshooting
7 Maintenance/troubleshooting Troubleshooting Troubleshooting must always consider all the components of the conductivity measurement chain! The transmitter and the connecting cable must also be tested, as well as the conductivity sensor. Error Possible cause Remedy Measurement value Conductivity sensor is Clean the conductivity is too high or too low dirty... -
Page 22: Technical Data
The measured cell constant is recorded on the stem of the conductivity sensor. A cell constant deviation can be adjusted at the transmitter. The CR-4P cable is required for connection (see section 5.3 "CR-4P cable") See 4.2 "JUMO PEKA process connection adapter" and data sheet 409711. - Page 24 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 6733 Myers Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow - Essex CM20 2DY, UK Phone:...
