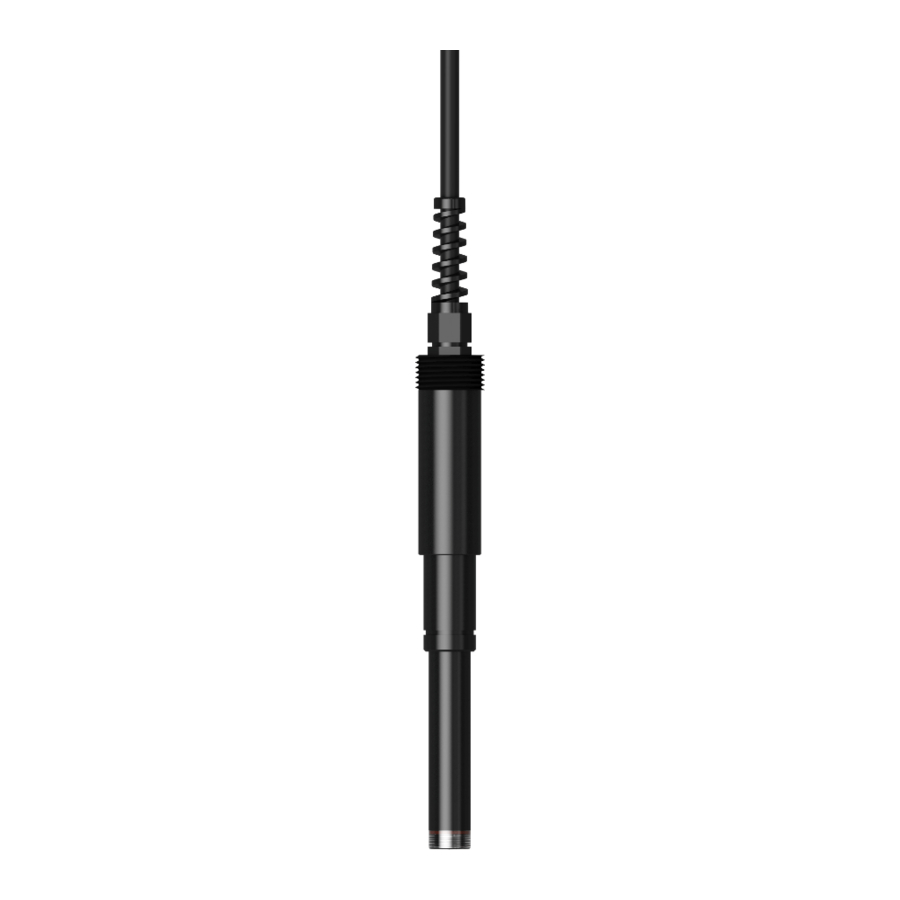

- Page 1 JUMO digiLine O-DO S10 Intelligent sensor for dissolved oxygen with digital interface and analog output Operating Manual 20261400T90Z001K000 V1.00/EN/00753657/2021-05-11...
-
Page 3: Table Of Contents
Contents Contents Introduction ..........5 Safety information . - Page 4 Contents Electrical connection ......... 32 Fixed cable with M12 plug, A-coded .
-
Page 5: Introduction
At the end of its service life, the device and any batteries present do not belong in the trash! Please en- sure that they are disposed of properly and in an environmentally friendly manner. Intended use The JUMO digiLine O-DO S10 has been developed for measuring the partial pressure of dissolved ox- ygen and the measurands derived from it: •... -
Page 6: Typical Areas Of Application
A damaged sensor can cause damage and/or incorrect dosing in the application by providing incorrect measurement results. Only use the JUMO digiLine O-DO S10 for its intended purpose and only use it if it is in a safe con- dition. -
Page 7: Acceptance Of Goods, Storage, And Transport
Please enclose the fully completed cover letter for product returns with the return shipment, includ- ing information on contamination protection. You can download the cover letter via the following link: http://produktruecksendung.jumo.info Please do not forget the following information: • Description of the application and •... -
Page 8: Features
The sensor is streamlined and has a robust construction. The sensor cap is easy to replace if it becomes worn. The sensor body of the JUMO digiLine O-DO S10 consists of PVC material, which allows it to be used in fresh water and salt water. A fixed cable with a 5-pole M12 connector is mounted on the sensor. -
Page 9: Design
1 Introduction Design The basic design of the sensor is as shown below: Unscrewable sensor cap with luminophore Sensor cap seal Snap ring (accessories) Union nut with thread G 1" (accessories) Sensor body with digiLine optoelectronics Sensor thread Rp 1" Cable passage Securely connected connecting cable Function principle... -
Page 10: Factors Influencing Oxygen Measurement
The temperature required for compensation can be provided by the temperature probe integrated in the sensor, or it can also be transferred externally from the JUMO digiLine or Modbus master device. Anoth- er option is to enter a fixed temperature value while configuring the JUMO digiLine sensor. -
Page 11: Compensation Variables (Influencing Factors) Depending On The Oxygen Measuring Unit
1 Introduction 1.9.4 Compensation variables (influencing factors) depending on the oxygen measur- ing unit Compensation variables Temperature Air pressure Salinity hPa (mbar) % sat. % vol. The sensor measures the temperature and automatically outputs the temperature-compensated mea- sured value for oxygen. The value of this compensation variable must be transferred to the sensor by the connected transmit- ter/controller or during configuration via the DSM. -
Page 12: Identifying The Device Version
Identifying the device version 2 Identifying the device version Nameplate Position The nameplate is glued to the sensor housing. Table of contents The nameplate shows important information. This includes: Description Designation on the nameplate Example Device type 202614/10-37-21-10/000 Fabrication number F no. -
Page 13: Order Details
2 Identifying the device version Order details Basic type 202614 JUMO digiLine O-DO S10 – optical oxygen sensor Basic type extension Standard design Measuring range 0 to 20 ppm (mg/l) Electrical connection Fixed cable with M12 connector Length of permanent cable... -
Page 14: Accessories
5 m JUMO M12 digiLine master connecting cable, 5-pole, A-coded, 00638333 length 1.5 m JUMO M12 connecting cable, 5-pole, A-coded, length 15 m 00638324 JUMO M12 connecting cable, 5-pole, A-coded, length 10 m 00638322 JUMO M12 connecting cable, 5-pole, A-coded, length 5 m 00638315 JUMO M12 connecting cable, 5-pole, A-coded, length 1.5 m... - Page 15 Designation Figure Part no. Plug-in power supply unit 24 V / 1 A 00743955 JUMO digiLine hub 00646871 JUMO power supply unit for digiLine hub 00661597 Software Designation Part no. Setup program digiLine DSM 00655787 Setup program digiLine DSM including data management...
- Page 16 Designation Part no. Pipe-mounted kit for AQUIS 500 RS 00398162 Weather protection canopy for AQUIS 500 RS 00398161 Setup program for JUMO AQUIS 500 on DVD 00483602 PC interface, converter RS232/TTL 00301315 PC interface, converter USB/TTL and adapter (pins/socket) 00456352...
-
Page 17: Mounting
Installation of the sensor may only be carried out by qualified personnel! Mounting site and environmental conditions A suspended fitting or an immersion fitting (particularly suitable for aeration tanks) from JUMO should preferably be used for mounting the sensor in a basin, a tank, or a container. -
Page 18: Sensor Fittings
3.2.1 Suspended fitting The suspended fitting holds the JUMO digiLine O-DO S10 oxygen sensor and is primarily used to take measurements from open basins or channels. It can be attached to a support pillar by means of a cross clamp and positioned far from the basin edge with the retaining bracket hanging from a chain chapter 3.4 "Setup of a measuring point with support pillar", Page 29. - Page 19 3 Mounting Suspended fitting dimensions Fastener with chain holder Sensor holder...
- Page 20 3 Mounting Suspended fitting with cleaning kit The suspended fitting is optionally available in a version with cleaning kit. The cleaning kit en- ables water/air flushing of the built-in sensor with a maximum cleaning pressure of 3 bar and a maxi- mum cleaning temperature of 60°C.
-
Page 21: Immersion Fitting
3.2.2 Immersion fitting The immersion fitting holds the JUMO digiLine O-DO S10 oxygen sensor. It is angled at the bottom and is primarily used for taking measurements from aeration tanks. It protects the sensor and allows you to take measurements at various immersion depths. The fitting can be mounted on the edge of the basin or attached to a support pillar using a cross clamp chapter 3.4 "Setup of a measuring point with support... - Page 22 3 Mounting Immersion fitting dimensions Angled fastener Pipe clamp Sensor holder...
- Page 23 3 Mounting Immersion fitting with cleaning kit The immersion fitting is optionally available in a version with cleaning kit. The cleaning kit enables water/air flushing of the built-in sensor with a maximum cleaning pressure of 3 bar and a maximum cleaning temperature of 60°C.
-
Page 24: Flow Fitting
3.2.3 Flow fitting The flow fitting holds the JUMO digiLine O-DO S10 oxygen sensor and is mounted directly in the supply line for the medium being measured or in the bypass. Its special design type ensures the correct inflow to the sensor, thus preventing incorrect measurements. Please note the following when planning your piping set-up: •... -
Page 25: Insertion In Fittings
3 Mounting Insertion in fittings 3.3.1 Insertion of the sensor in the suspended or immersion fitting CAUTION! Risk of damage to the sensor membrane due to mechanical influences. A damaged membrane leads to incorrect measurement results. Avoid mechanical loads on the sensor membrane during all steps of installing the sensor in the sen- sor holder! NOTE! For installing the sensor in the suspended or immersion fitting, you need the optionally available mount-... - Page 26 3 Mounting The sensor is now prepared for mounting in the sensor holder as shown in screen C. 4. Now first push the sensor as far as possible into the sensor holder (2). 5. Fully insert the sensor into the sensor holder by turning the sensor union nut (arrow in the screen below).
-
Page 27: Insertion Of The Sensor Into The Pvc Flow Fitting
3 Mounting 3.3.2 Insertion of the sensor into the PVC flow fitting NOTE! For installing the sensor in the flow fitting, you need the optionally available mounting set (union nut with thread G 1" + 2 snap rings, part no. 00730253). 1. -
Page 28: Installation Of The Sensor In An On-Site Immersion Fitting
3 Mounting 3.3.3 Installation of the sensor in an on-site immersion fitting Another installation option for the JUMO digiLine O-DO S10 is installation in an immersion fitting provid- user with of the installation adapter (part no.: 00747563) chapter 2.4 "Accessories", Page 14. -
Page 29: Setup Of A Measuring Point With Support Pillar
The support pillar with pedestal base, cantilever arm, and chain is intended for mounting on the edge of the basin. The JUMO digiLine O-DO S10 sensor is mounted either in a suspended fitting or an immersion fitting, as described above. It is possible to set various immersion depths and clearances from the basin edge using the cantilever arm and the chain (for suspended fitting) and the cross clamp (for immersion fitting). - Page 30 Setup of the measuring point with the AQUIS 500 RS transmitter/controller This setup can be realized in the same way with the modular AQUIS touch S multichannel measuring device. JUMO AQUIS 500 RS indicating device/controller Pipe-mounted kit Weather protection canopy...
-
Page 31: Sensor Dimensions
3 Mounting Sensor dimensions Connecting cable (fixed cable with M12 connec- tor) Nameplate Sensor body with optoelectronics Unscrewable sensor cap with luminophore... -
Page 32: Electrical Connection
2 (+24 V) and 3 (GND) are required. Connection to transmitters/controllers The connection of the sensor to the modular JUMO AQUIS touch multichannel measuring device, the JUMO AQUIS 500 RS transmitter/controller and the JUMO mTRON T automation system is described in detail in the respective operating manuals of the devices. -
Page 33: Connection Examples
The example shown below shows an installation for monitoring an aquaculture. 3 sensors (for the mea- surands of conductivity, oxygen content, and pH) are connected to a JUMO AQUIS touch S. The sensors are connected to one another via a JUMO digiLine hub and M12 connecting cables. Appropriate fittings are available from JUMO for mounting the sensors. - Page 34 The example shown below shows an installation for monitoring an aquaculture. 3 sensors (for the mea- surands of conductivity, oxygen content, and pH) are connected to a JUMO mTRON T. The sensors are connected to one another via a JUMO digiLine hub and M12 connecting cables. Appropriate fittings are available from JUMO for mounting the sensors.
- Page 35 (2) JUMO digiLine O-DO S10 – optical oxygen sensor for dissolved oxygen (3) JUMO digiLine master connecting cable with exposed wire ends at one end for connection to devices with screw or spring-cage terminals (for connection see the operating manual of the JUMO AQUIS...
- Page 36 4 Electrical connection Two-wire current interface operation (standard signal 4 to 20 mA) of the JUMO digiLine O-DO S10 The connection of a sensor JUMO digiLine O-DO S10 to a measuring device/automation device as a two-wire transmitter with a standard signal 4 to 20 mA. The sensor can be connected to a PC using the USB converter that is available as an accessory (part no.
-
Page 37: Startup
• The sensor has been electrically connected to a JUMO digiLine or Modbus master device. • The sensor has been configured; either on a JUMO digiLine or Modbus master device, or using the JUMO DSM. NOTE! The sensor will have been checked to ensure correct function and calibrated at the production plant, and it is delivered ready for operation. -
Page 38: Calibration Interval
Check the measurement medium for the presence of chlorine. Calibration interval With the JUMO digiLine O-DO S10, it is recommended to perform at least one calibration per year, de- pending on the operating conditions. After replacing the sensor cap, a calibration must be performed. -
Page 39: End Value Calibration
5 Startup 5.3.1 End value calibration With end value calibration, the slope of the sensor is calibrated beyond the defined state of 100 % oxy- gen saturation. This state can in principle be achieved in two ways: • By positioning the sensor in water vapor-saturated air (for example, directly over a water surface). •... -
Page 40: Zero Point Calibration
5 Startup 5.3.2 Zero point calibration For very precise measurements in the range below 10% oxygen saturation, it is recommended to per- form a zero point calibration in an oxygen-free environment in addition to the end value calibration. Zero point calibration is performed after immersing the sensor in a water-sodium sulfite solution Source of supply for sodium sulfite: Relevant trade for laboratory chemicals. -
Page 41: Calibration Logbook
The calibration logbook can be extracted on either the JUMO AQUIS touch S/P, on the JUMO AQUIS 500 RS, or on the PC using the JUMO DSM software. The num- ber of saved calibration logbook entries in the DSM database is unlimited. -
Page 42: Maintenance
Maintenance 6 Maintenance Removal of the sensor NOTE! Before removing the sensor from the process (the fitting), make sure that no process medium can es- cape during removal. NOTICE! Risk of damage to the sensor due to process medium entering during improper removal A sensor cap that does not seal can cause damage to the sensor due to process medium entering. -
Page 43: Replacing The Sensor Cap
The JUMO digiLine O-DO S10 also enables simple and convenient calibration and configuration already in the laboratory using the JUMO DSM PC software. This software can be used to calibrate the sensor for operation on the JUMO mTRON T automation system. -
Page 44: Functions For Self-Diagnostics
Error: State of the sensor element; sensor cap missing The RS485 interface can thus be used to determine measured values outside of the tolerances or a fail- ure of the oxygen and temperature measurement input both in JUMO digiLine operation and in Modbus operation. -
Page 45: Technical Data
Technical data 7 Technical data Specifications Measuring principle Optical measurement according to the principle of luminescence quenching Measurands Dissolved oxygen Temperature Measuring ranges dissolved oxygen 0.00 to 20.00 ppm (mg/l) 0.00 to 250.00 % sat. 0.00 to 52.00 % vol. 0.00 to 514.00 hPa pO Temperature -5 to +50 °C... -
Page 46: Interfaces
The Modbus RTU protocol is intended to operate the sensor on a JUMO mTRON T CPU or a transmitter/controller AQUIS 500 RS. For operation on a JUMO mTRON T, the interface parameters must be set prior to initial startup with the JUMO DSM software. The JUMO AQUIS 500 RS recognizes the sensor automatically and sets the appro- priate interface parameters. -
Page 47: Case
Modular multichannel measuring devices for liquid analysis with integrated con- troller and paperless recorder JUMO AQUIS touch S/P data sheets 202580/202581 Indicating device/controller JUMO AQUIS 500 RS data sheet 202569 Scalable measurement, control, and automation system JUMO mTRON T data sheets 705000/705001... -
Page 48: Certificates
EU-Konformitätserklärung EU declaration of conformity / Déclaration UE de conformité Dokument-Nr. CE 822 Document No. / Document n°. Hersteller JUMO GmbH & Co. KG Manufacturer / Etabli par Anschrift Moritz-Juchheim-Straße 1, 36039 Fulda, Germany Address / Adresse Produkt Product / Produit Name Typenblatt-Nr. - Page 49 8 Certificates ! "#$ % !& ' ( ))) Angewendete Normen/Spezifikationen Standards/Specifications applied / Normes/Spécifications appliquées Fundstelle Ausgabe Bemerkung Reference / Référence Edition / Édition Comment / Remarque EN 61326-1...
- Page 50 ! "#$ % !& ' ( ))) Aussteller JUMO GmbH & Co. KG Issued by / Etabli par Ort, Datum Fulda, 2021-01-07 Place, date / Lieu, date Geschäftsführer...
-
Page 51: China Rohs
8 Certificates China RoHS... - Page 52 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 6733 Myers Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow, Essex, CM20 2DY, UK Delivery address:...
