Installation Guide | VLT®Safety Option MCB 152

4.4.3 Wiring Procedures

Procedure

1. Remove the jumper wire between control terminals 37 and 12/13 (24 V).

Cutting or breaking the jumper is not sufficient to avoid short-circuiting.

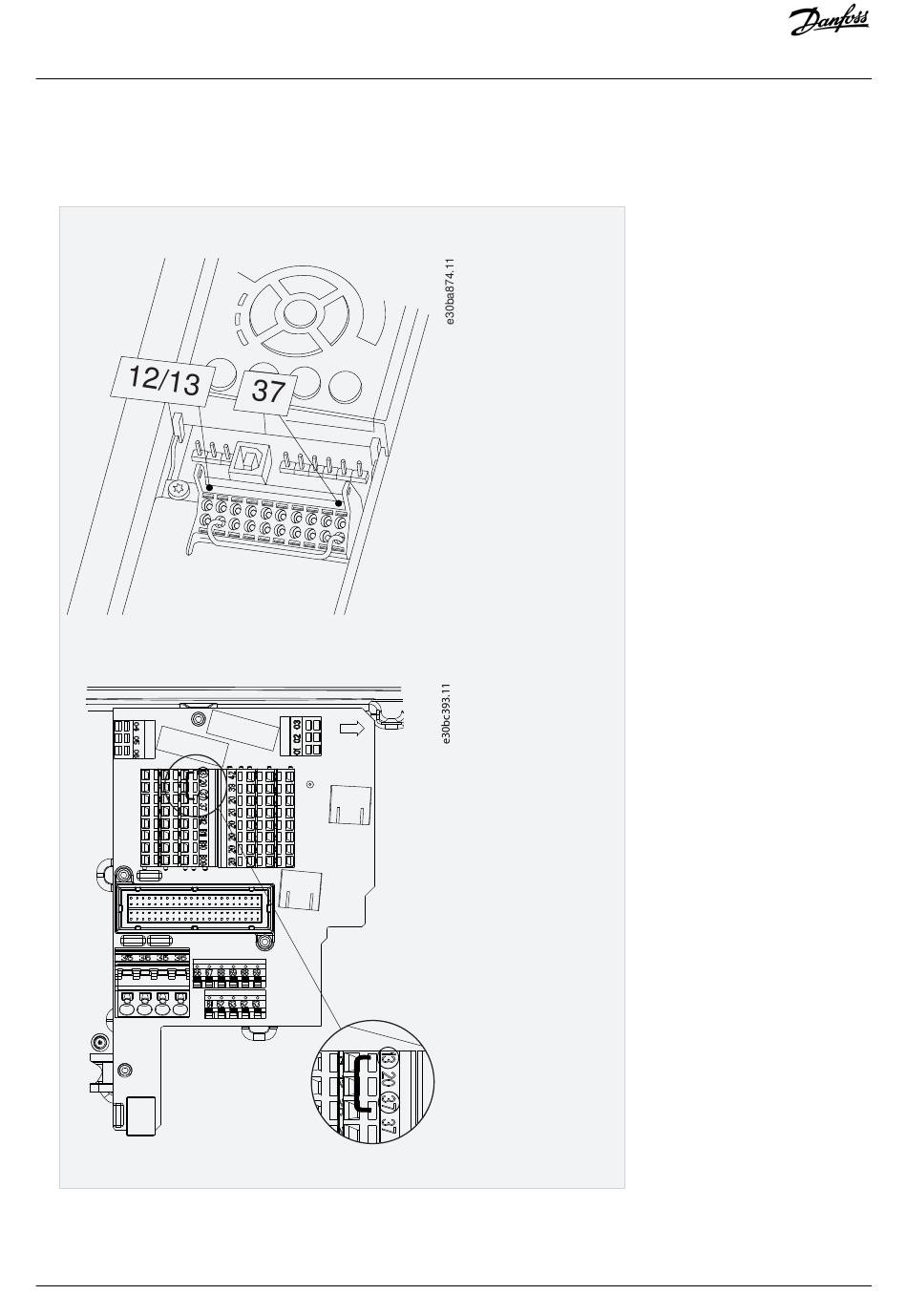

Illustration 12:

Jumper between Terminals 12/13 and 37 (VLT® AutomationDrive FC 302)

Illustration 13:

Jumper between Terminal 12/13 (24 V) and 37, VLT® Decentral Drive FCD 302

Installation

AN327351953089en-000101 / 130R0578
