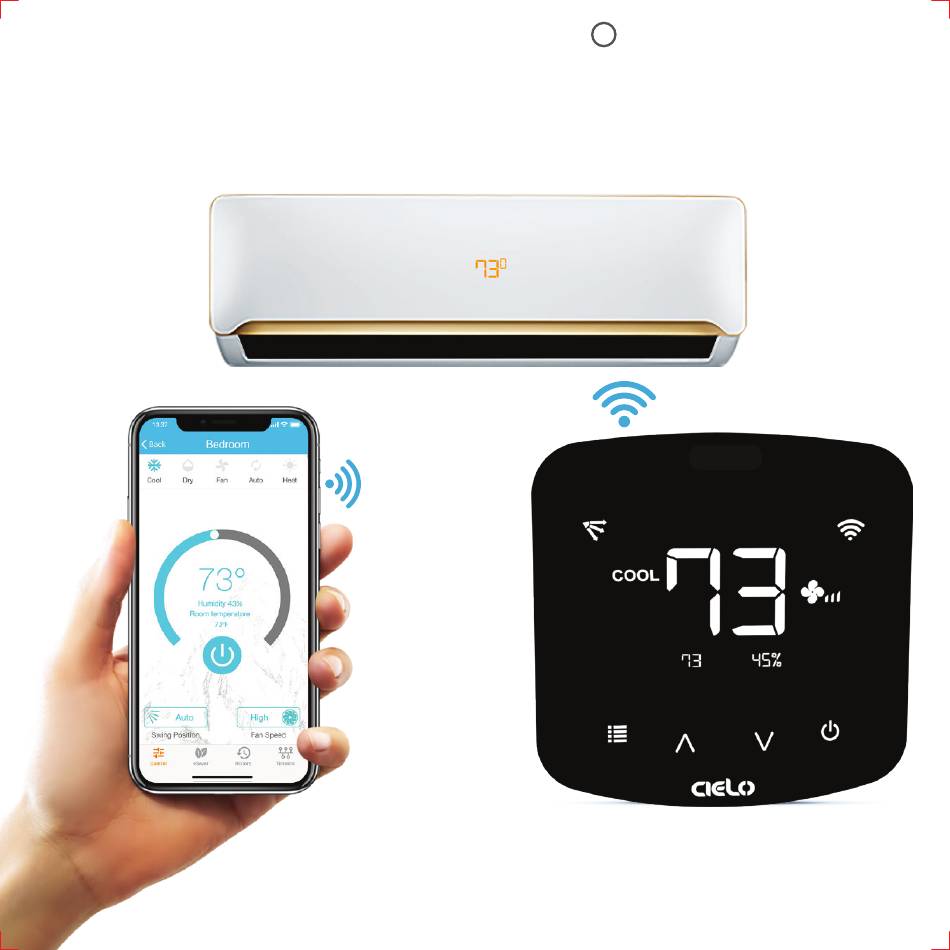

- Page 1 CIELO BREEZ PLUS Makes any air condi�oner smart Smart Wi-Fi Controller for air condi�oners & heat pumps (User Manual)
- Page 2 STEP 1A: MOUNTING & PLACEMENT Cielo Breez Plus can be wall mounted using the wall moun�ng kit or placed on a table using table stand (both included in the box). Please mount your Breez Plus on a wall or place it on a table in AC's line of sight and power it up.
- Page 3 STEP 1C: IR SIGNALS - CIELO BREEZ PLUS Breez Plus has four transmi�ers to send IR signals to the air condi�oner. One towards front, one towards the top and one each on top corners at 45 degrees. Important: Please ensure that IR signal reaches your air condi�oner from either of these transmi�ers.
- Page 4 STEP 1D: PRIOR TO APP INSTALLATION Your Smart Phone • Make sure that your smart phone’s Wi-Fi is turned ON. • Make sure that your smart phone has internet access. Your Wi-Fi Router • Make sure that you have working internet connec�on on your Wi-Fi router. •...
- Page 5 • Go to the App Store / Play Store. ‘Cielo Home’ App • In ‘search’ sec�on type ‘Cielo Home’. • Once ‘Cielo Home’ App is displayed, tap the ‘GET’ bu�on. • Open the App a�er installa�on is complete. STEP 2B: LOGIN/REGISTER •...
- Page 6 STEP 3A: REGISTRATION - iOS USERS Note: Registra�on process is meant to connect the Breez Plus to your home Wi-Fi network through the ‘Cielo Home’ App. Step 1: A�er successful login, you are at the Home screen. Step 2: Tap the ‘+‘ bu�on as shown in the red circle.
- Page 7 STEP 3A: REGISTRATION - iOS USERS (CONT’D) Step 6: Your phone will show the list of available Wi-Fi networks. Step 7: Select your Wi-Fi network from the list (there should be No cap�ve portal or port blocking on your selected network). Step 8: Enter the password of your Wi-Fi network and tap the ‘Connect’...
- Page 8 Step 12 Step 13 Quick Tip: All four bu�ons at the bo�om of Breez Plus will blink once at the same �me a�er receiving the remote control's signal. If they do not blink, please check the ba�eries of remote control.
- Page 9 STEP 3B: REGISTRATION - ANDROID USERS Note: Registra�on process is meant to connect the Breez Plus to your home Wi-Fi network through the ‘Cielo Home’ App. Step 1: A�er successful login, you are at the home screen. Step 2: Tap the ‘+’ bu�on as shown in the red circle.
- Page 10 STEP 3B: REGISTRATION - ANDROID USERS (CONT’D) Step 6: Select your Wi-Fi from the drop down list (there should be No cap�ve portal or port blocking on your selected network). Step 7: Enter the password of your Wi-Fi network and tap the ‘Connect’ bu�on. Step 8: Customize your device with a name of your choice (for example, Bedroom, Lounge, Office, etc.) and tap on ‘Done’.
- Page 11 Step 11 Step 12 Quick Tip: All four bu�ons at the bo�om of Breez Plus will blink once at the same �me a�er receiving the remote control's signal. If they do not blink, please check the ba�eries of remote control.
- Page 12 YOUR HOME SCREEN Your home screen shows the real �me status of all your Cielo Devices. A registered Cielo Device can show either of the 3 status, outlined in circles: 1 - Green - Device is online. You’re good to go! 2 - Red - Device is offline.
- Page 13 Timeline Control eSaver History Cielo Breez Plus Works With Amazon Alexa & the Google Assistant Technical Support Our dedicated team of experts is there to help from 9AM to 9PM EST (Mon-Fri). Please contact us at +1 (425) 529-5775 or visit our website: www.cielowigle.com...
- Page 14 QUICK TIP: CONFIGURING THE RIGHT REMOTE CONTROL FOR YOUR AC Cielo Device auto detects relevant remote control for Screen A Screen B your AC during registra�on process. If it is not working with your AC, please select your remote model...
- Page 15 BREEZ PLUS - LOCAL CONTROL OPTIONS Set Point Temperature Wi-Fi Status Swing Positions AC Modes Fan Speed Room Temperature Room Humidity Menu Button Power On/Off Button Temperature Up Button Temperature Down Button Adjus�ng the temperature of your AC: Use the up or down bu�on to set the temperature of your choice.
- Page 16 BREEZ PLUS - LOCAL CONTROL OPTIONS (CONT’D) Set Point Temperature Wi-Fi Status Swing Positions AC Modes Fan Speed Room Temperature Room Humidity Menu Button Power On/Off Button Temperature Up Button Temperature Down Button Turning the display of Breez Plus On/Off: Press the Temperature Down Bu�on for six seconds and release.
- Page 17 Please DO NOT use any other voltage level to power up Breez Plus. Step 3: Choose C & R wires. Pull these wires and pass them through the hole of back plate of Breez Plus. Screw in the back plate of Breez Plus into the wall.
- Page 18 INSTRUCTIONS FOR BREEZ PLUS WIRED CONNECTIONS (24V OR 12V) Step 4: Breez Plus has two connec�ons marked as 24V at its back. Connect C & R wires at these two connec�ons. Step 5: Press fit the Breez plus on its back plate.
- Page 19 2. WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU WANT TO CLAIM UNDER THIS LIMITED WARRANTY Before being able to claim under this Limited Warranty, the owner of the Product must (a) no�fy Cielo WiGle Inc. of the inten�on on to claim by visi�ng our website during the Warranty Period and providing a descrip�on of the alleged failure, and (b) comply with...
- Page 20 OR THAT PRODUCT INFORMATION OR USE OF THE SERVICES OR PRODUCT WILL PROVIDE SAFETY IN YOUR HOME. YOU USE ALL PRODUCT INFORMATION, THE SERVICES, AND THE PRODUCT AT YOUR OWN DISCRETION AND RISK. YOU WILL BE SOLELY RESPONSIBLE FOR, AND CIELO WIGLE INC.
