RD 11 – BP20 – 78650 Beynes – France
Tel : +33 (0) 134 947 700
info@alcyonelectronique.fr
Fax : +33 (0) 134 875 340
www.alcyonelectronique.fr

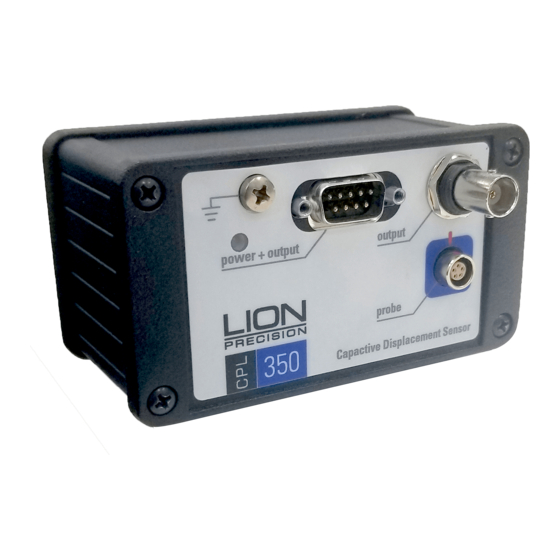

CPL350 USER'S GUIDE
Capacitive Displacement Sensor
Oakdale, MN, USA www.lionprecision.com 651-484-6544
1
www.lionprecision.com/two-year-warranty/
Document No. M017-6450.001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lion Precision CPL350
Summary of Contents for Lion Precision CPL350
- Page 1 RD 11 – BP20 – 78650 Beynes – France Tel : +33 (0) 134 947 700 info@alcyonelectronique.fr Fax : +33 (0) 134 875 340 www.alcyonelectronique.fr CPL350 USER’S GUIDE Capacitive Displacement Sensor Oakdale, MN, USA www.lionprecision.com 651-484-6544 www.lionprecision.com/two-year-warranty/ Document No. M017-6450.001...
-
Page 2: Table Of Contents
APPROVALS AND SAFETY CONSIDERATIONS OVERVIEW SYSTEM CONTENTS CALIBRATION USING THIS MANUAL GETTING HELP The CPL350 is compliant with the following CE standards: TECHNICAL LIBRARY CONNECTING TO THE CPL350 Probe Connections To Connect the Probes To Disconnect the Probes Analog Output BNC Connector Single-Ended ±10 V... -
Page 3: Approvals And Safety Considerations
GETTING HELP Lion Precision wants to help you get the most from your system. If there is anything we can do, contact us: Telephone: 800-292-6544, 651-484-6544 General information: info@lionprecision.com... -
Page 4: Technical Library
CONNECTING TO THE CPL350 Probe Connections To Connect the Probes 1. Insert the probe cable connector into the “Probe” connector on the CPL350. 2. Rotate until the red dots on the connectors align. 3. Push the connector in until it clicks. -
Page 5: Power Supply Requirements
Power Supply Requirements The power supply provided with your CPL350 provides the required ±15VDC input power. If using your own power supply, be aware that high-frequency noise from a switching-type power supply may appear in the output. For high resolution results, be sure to provide clean power. -
Page 6: Changing Bandwidth
Higher bandwidths allow you to accurately measure faster moving targets. Lower bandwidth reduces the noise on the output and creates higher resolution. The CPL350 is set to 15 kHz unless specified otherwise in the order and on the calibration sheet received with the system. -
Page 7: Specifications
SPECIFICATIONS 0.004%F.S. at 15 kHz typical, dependent on Resolution* calibration Linearity Error ±0.5% F. S. typical, dependent on calibration Error Band ±1.0% F. S. typical, dependent on calibration DIP Switch selectable Bandwidth (-3 db) 100 Hz, 1 kHz, 10 kHz, 15 kHz ( –10%+30%) Operating Temperature 4°-50°C Probe Thermal Stability... -
Page 8: Optional Mounting Flange
OPTIONAL MOUNTING FLANGE An optional flange for easy mounting of the CPL350 is available (P017-6455). The flange attaches to the bottom of the device with four flathead screws (included in the flange kit). inch 4.49 4.88 0.22 CPL350 With Attached Mounting Flange Be confident when you do business with Lion Precision Oakdale, MN, USA www.lionprecision.com 651-484-6544...
