Lion Precision LRD2100 User Manual

Output and Mechanical Detail
Light/Dark switching is affected by the direction of label movement and the Output Polarity
connection. Output descriptions below are for web direction indicated in the illustration and are
reversed for web movement in the other direction.
Dark Switching
Output Polarity = GND
Light Switching
Output Polarity = +V
*Some models label this indicator as "Edge"
M4x.7
(x4)
1.00"
25.4mm
0.20"
0.60"
5.1mm
15.2mm
Gap 0.03"
0.76mm
(Adjustable)
Specifications
Voltage
Power supply
Current
on or off
Response time
Switching Frequency
Output Current (sinking or sourcing)
Output
Switching output
Temperature Operating Range
Supply
Protections
Switching output
Two-Year Warranty details at: www.lionprecision.com/warranty.html
Web Movement
Direction
Output Indicator*
Outputs
Output Indicator*
Outputs
5.50"
140mm
1.20"
0.60"
30.5mm
15.2mm
S E N S O R
3.50"
89mm
Throat Depth
11-28 V (reverse polarity protected)
50mA
20µs max
10kHz max
150mA max (overload protected)
PNP (sourcing) or NPN (sinking),
Dark or light switching
40°F to 140°F (4°C to 60°C)
Inverse Polarity Protection
Short Circuit and Overload Protection
User's Guide
for the

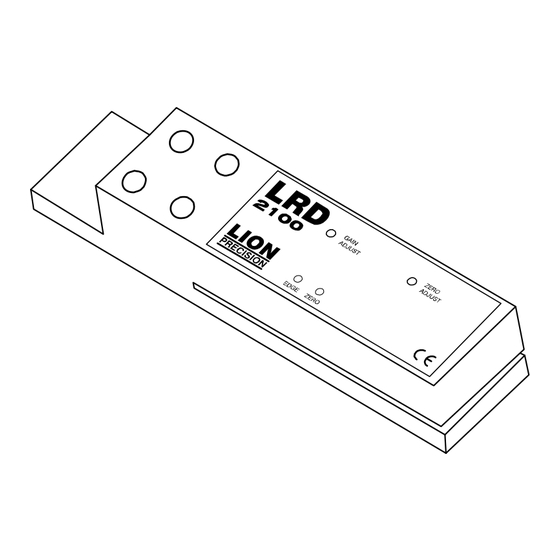

LRD2100 and LRD2100C Label Sensors
from
Lion Precision
Lion Precision
St. Paul, MN, USA
651-484-6544
www.lionprecision.com
Document Number: M014-4660.026
