Summary of Contents for Lion Precision LRD6110

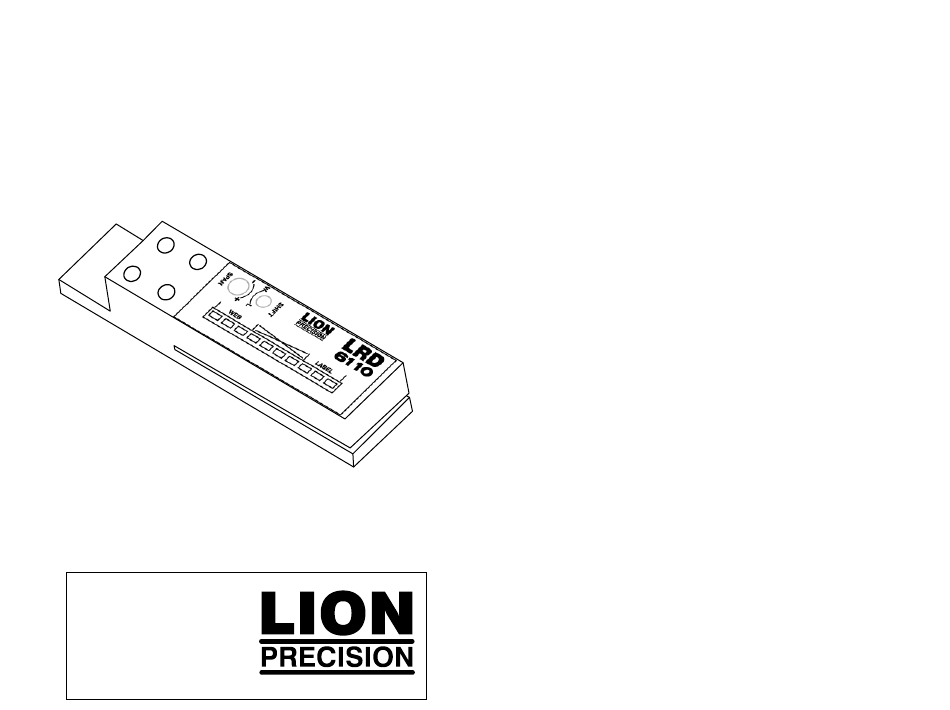

- Page 1 User’s Guide for the LRD6110 and LRD6110C Label Sensors from Lion Precision Lion Precision 563 Shoreview Park Road St. Paul, MN 55126 651-484-6544 www.lionprecision.com Document Number: M015-3380.018...
- Page 2 All power must be off when installing the sensor. Brown wire (Output Polarity) must be connected to +V or Ground for reliable operation. “Shift” adjustment will be damaged if over turned. Do not exert extra force when adjustment stops. LRD6110 with Integral Cable Wire Connection Notes...
- Page 3 “X” region during transition from web to label. See the LRD6110 setup video at www.labelsensors.com Notes: The LRD6110 may not work reliably with solid foil labels. For solid foil labels, use the LRD8200 Two-Year Warranty details at: www.lionprecision.com/warranty.html...
- Page 4 Supply Inverse Polarity Protection Output and Mechanical Detail Protections Switching output Short Circuit and Overload Protection Dark Switching Outputs Output Polarity = +V Light Switching Outputs Output Polarity = GND 5.50" M4x.7 140mm (x4) 1.00" 25.4mm 1.20" 0.20" 0.60" 30.5mm 5.1mm 0.60"...
