Summary of Contents for Lion Precision LRD8200

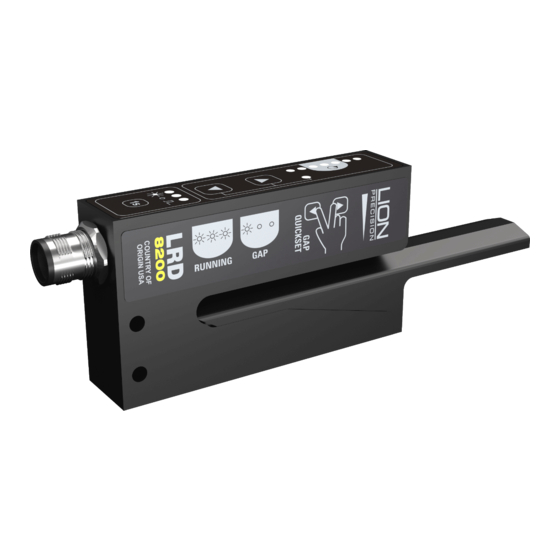

- Page 1 USER’S GUIDE for the LRD8200 Ultrasonic Label Sensor Oakdale, MN, USA www.lionprecision.com 651-484-6544 Two-Year Warranty details at: www.lionprecision.com/two-year-warranty Document Number: M014-4660.026...
- Page 2 Description Sensor Setup The Lion Precision LRD8200 Label Sensor uses ultrasonic technology to monitor label 1. Labels must pass under the “Sensing Area” indicator (see fig. 1). registra�on and/or count labels. A change in the sensor output indicates the 2. Place a gap in the sensor (or remove a label and place the liner only in the presence of a label edge.
- Page 3 15.2 0.20 0.80 1.25 20.3 31.8 4X M4 x 0.7 0.225 5.72 4.95 50.8 125.7 0.125 3.18 Be confident when you do business with Lion Precision. Oakdale, MN, USA www.lionprecision.com 651-484-6544 Two-Year Warranty details at: www.lionprecision.com/two-year-warranty Document Number: M014-4660.026...
