Output and Mechanical Detail

Dark Switching
Output Polarity = +V
Light Switching
Output Polarity = GND
M4x.7
(x4)
25.4mm
0.20"
0.60"
5.1mm
15.2mm

Specifications

Voltage

Power supply

Current
on or off
Response time
Switching Frequency
Output Current (sinking or sourcing)
Output
Switching output
Temperature
Operating Range
Supply
Protections
Switching output
Outputs
Outputs
5.50"
140mm
1.00"
1.20"
0.60"
30.5mm
15.2mm
Gap 0.03"
0.76mm
11-28 VDC (reverse polarity protected)
50mA
20µs max
10kHz max
150mA max (overload protected)
PNP or NPN, dark or light switching
40°F to 140°F (4°C to 60°C)
Inverse Polarity Protection
Short Circuit and Overload Protection
User's Guide
for the

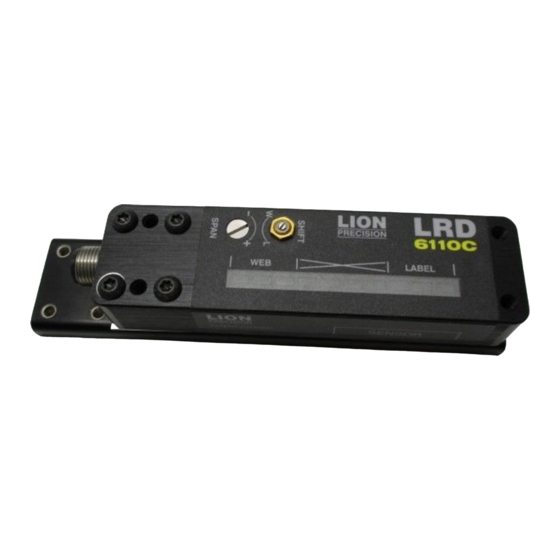

LRD6110 and LRD6110C Label Sensors
from
Lion Precision
Lion Precision
563 Shoreview Park Road
St. Paul, MN 55126
651-484-6544
www.lionprecision.com
Document Number: M015-3380.016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRD6110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lion Precision LRD6110

  • Page 1 Output and Mechanical Detail User’s Guide for the LRD6110 and LRD6110C Label Sensors from Lion Precision Dark Switching Outputs Output Polarity = +V Light Switching Outputs Output Polarity = GND 5.50" M4x.7 140mm (x4) 1.00" 25.4mm 1.20" 0.20" 0.60" 0.60"...
  • Page 2 2 (White) Notes: 2 (White) NPN Output 150mA max. 150mA max. 4 (Black) The LRD6110 may not work reliably with solid foil PNP Output 3 (Blue) Ground Connected to 150mA max. labels. Some inks, usually black, have a high carbon...
