3-Port 1394b Mini PCI Express Card
1. Introduction
Thank you for purchasing this IEEE 1394b FireWire 800 Mini PCI Express
Card. It is the newest
spur the development of more innovative high-performance devices
and applications. It doubles the throughput of the original 1394a
technology, dramatically increases the maximum distance of FireWire
connections, and supports many new types of cabling.
Features:
Supports Mini PCIe form factor
✓
PCI Express Base Specifications 1.0a Compliant, 2.5Gbps (250Mbytes/sec)
✓
Transfer Rate
Fully IEEE1394 OHCI compliance
✓
Two 9-pin (1394b) and one 6-pin (1394a legacy) external connectors with
✓
the adapter board
Up to 800Mbits/sec IEEE 1394b FireWire 800 transfer rate
✓
Supports bus 12V power with the power cable
✓

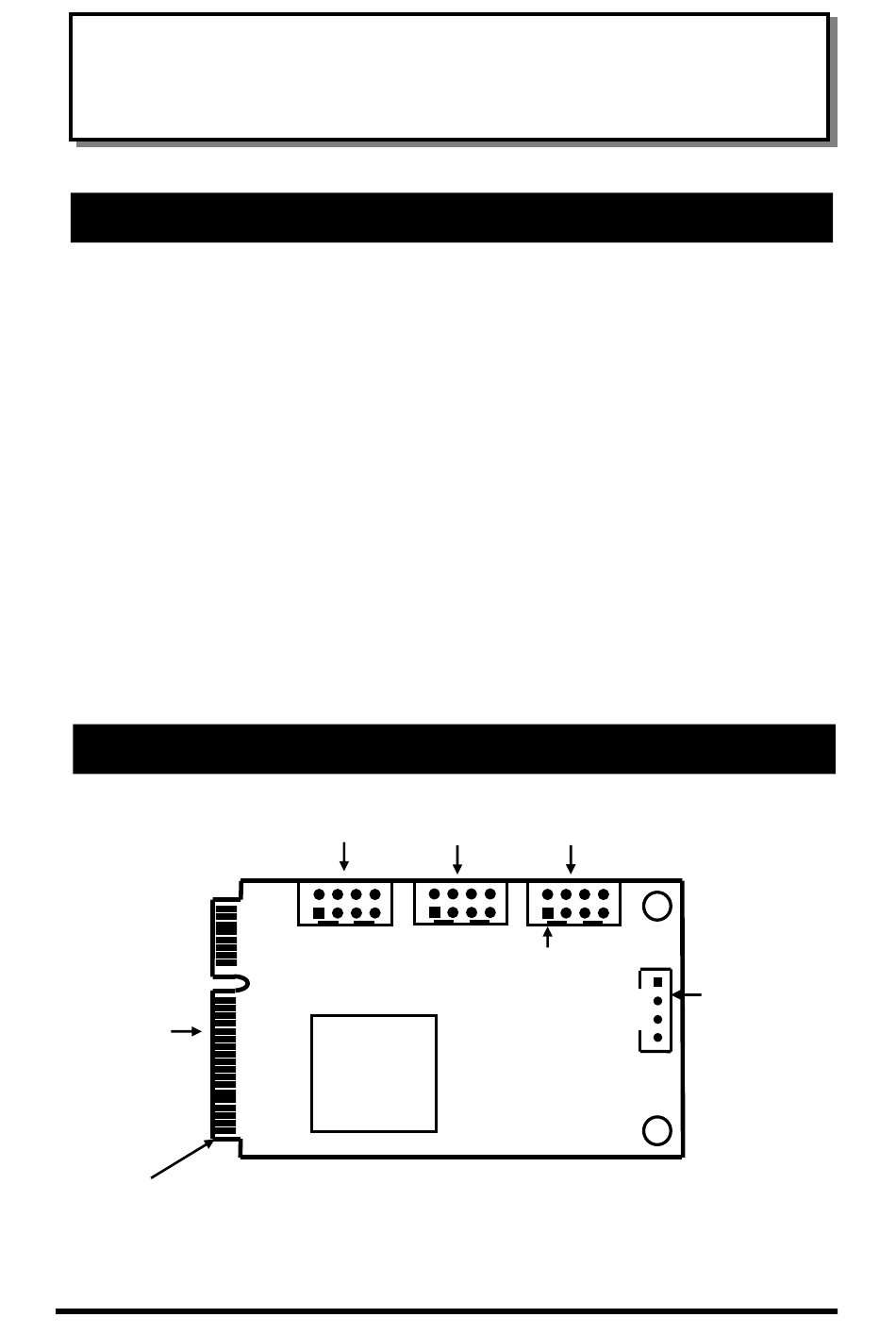

2. Board Layout
Mini PCIe
golden
fingers
Pin #1

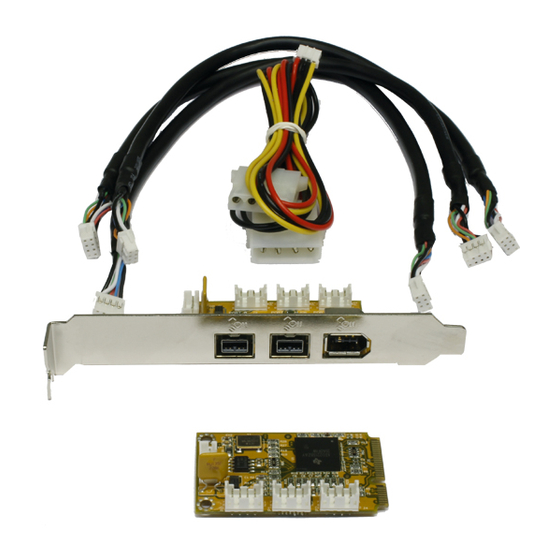

Card and accessories:
EX-48015
generation of FireWire technology, promises to
J4: 1394b
J3: 1394b
Port 2
Port 1
1
J2: 1394b
Port 0
Pin #1
J5: Aux. Power
Connector
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-48015
Summary of Contents for Exsys EX-48015
- Page 1 EX-48015 3-Port 1394b Mini PCI Express Card 1. Introduction Thank you for purchasing this IEEE 1394b FireWire 800 Mini PCI Express Card. It is the newest generation of FireWire technology, promises to spur the development of more innovative high-performance devices and applications.
- Page 2 3-Port 1394b Mini PCIe Card Mini PCIe Card Internal 1394b Cables 1394 Bus Low Profile Bracket Power Cable & Adapter Board 3. Installing the Mini PCIe Card Remove the Mini PCIe card from its protective antistatic packaging, remove the screw holding the Mini PCIe card to the motherboard and insert the new Mini PCIe card into the socket.
- Page 3 3-Port 1394b Mini PCIe Card One end of the 1394b cable on Mini PCIe Card The other end of the 1394b cable on the Adapter Board Install bus power cable for 1394b ports: To inject 12V bus power to the 1394 connectors, please install the power cable on the adapter board instead of Mini PCIe card.
- Page 4 3-Port 1394b Mini PCIe Card 4. Software Installation The following table lists the OS support of the IEEE 1394b Mini PCI Express Host Adapter. Since both Windows and Mac OS X have bundled the 1394b FireWire 800 drivers, it does not need any additional driver to make it work: Driver Supports (Kernel) Win XP...
