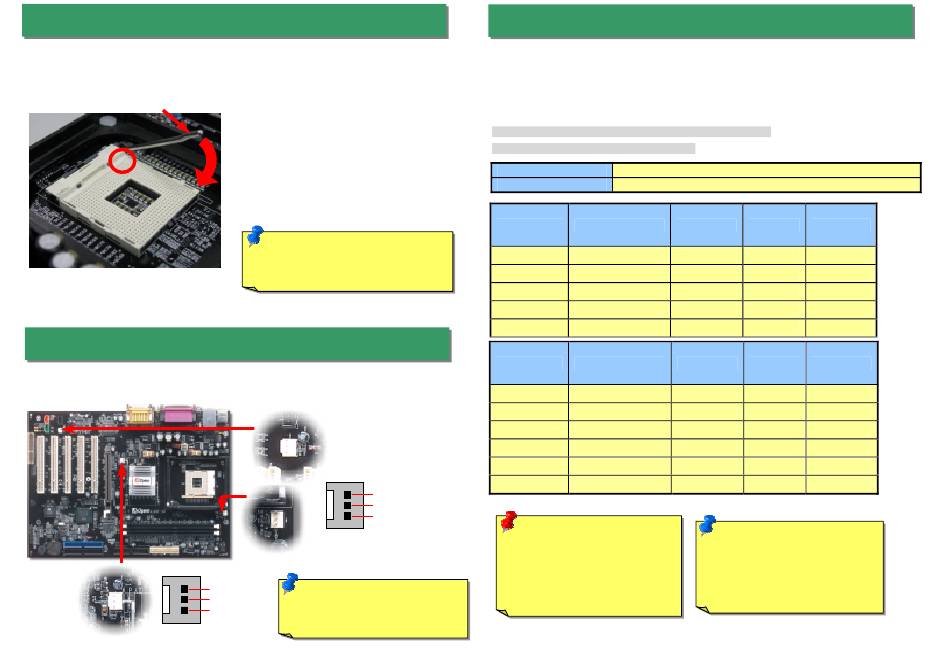

3. Installing Processor
This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package
developed by Intel. Other forms of CPU package are impossible to be fitted in.
CPU socket lever
CPU Pin 1 and cut edge
4. Installing CPU & System Fan
Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you
can also plug it on System Fan (FAN2) or FAN3 (AUX Fan) connector.
FAN2 Connector
1.
Pull up the CPU socket lever and up to
90-degree angle.
2.
Locate Pin 1 in the socket and look for
a (golden) cut edge on the CPU upper
interface. Match Pin 1 and cut edge.
Then insert the CPU into the socket.
3.
Press down the CPU socket lever and
finish CPU installation.
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
may damage the CPU.
FAN3 Connector
GND
+12V
SENSOR
CPU Fan Connector
GND
Note: Some CPU fans do not
+12V
have sensor pin so they cannot
SENSOR
support fan monitoring.
5. Setting CPU Voltage & Frequency
Setting CPU Core Voltage
The CPU core voltage will be automatically detected. It is not necessary to set CPU core
voltage.
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through the
BIOS setup, and no jumpers or switches are needed.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setting
Core Frequency = CPU FSB Clock * CPU Ratio
CPU Ratio
8x, 9x, 10x... 21x, 22x, 23x, 24x
CPU FSB
100 MHz
Northwood CPU
CPU Core Frequency
Pentium 4 1.6G
1600MHz
Pentium 4 1.8G
1800MHz
Pentium 4 2.0G
2000MHz
Pentium 4 2.2G
2200MHz
Pentium 4 2.4G
2400MHz
Willamette CPU
CPU Core Frequency
Pentium 4 1.5G
1500MHz
Pentium 4 1.6G
1600MHz
Pentium 4 1.7G
1700MHz
Pentium 4 1.8G
1800MHz
Pentium 4 1.9G
1900MHz
Pentium 4 2.0G
2000MHz
®
Warning:
Intel
845D chipset
supports
maximum
400MHz
(100MHz*4) system bus and
66MHz AGP clock; higher clock
setting
may
cause
serious
system damage.
FSB Clock
System Bus
Ratio
100MHz
400MHz
16x
100MHz
400MHz
18x
100MHz
400MHz
20x
100MHz
400MHz
22x
100MHz
400MHz
24x
FSB Clock
System Bus
Ratio
100MHz
400MHz
15x
100MHz
400MHz
16x
100MHz
400MHz
17x
100MHz
400MHz
18x
100MHz
400MHz
19x
100MHz
400MHz
20x
Note: Since the latest processor,
Northwood, would detect the
clock ratio automatically, you
may not be able to adjust the
clock ratio in BIOS manually.
