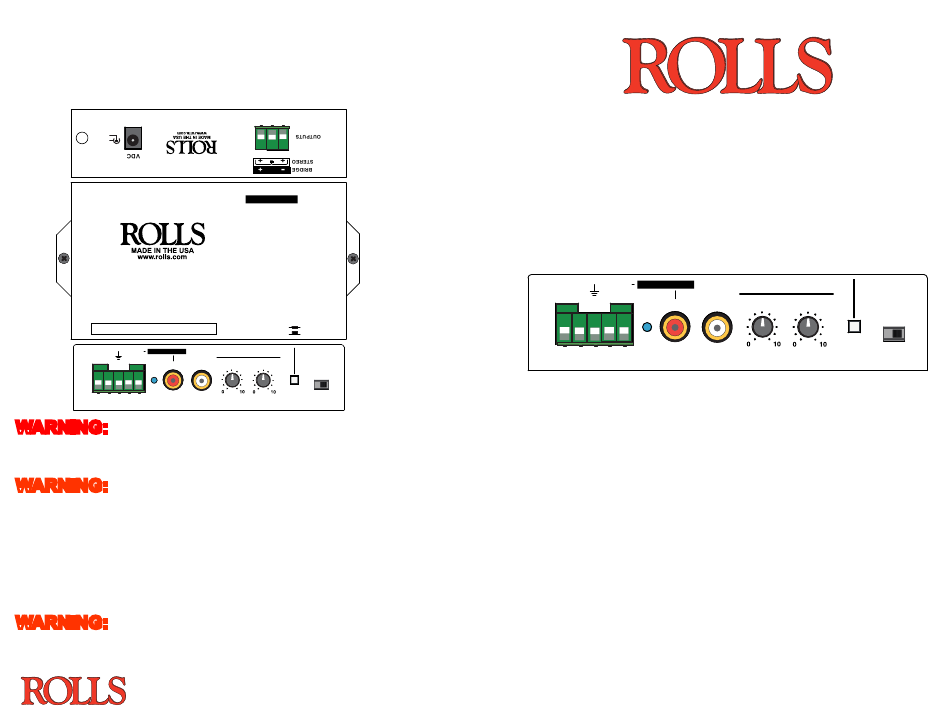

Bridge or Stereo Operation:
The bridge - stereo function of the PA202 is a way of converting the unit
from two channels at 20 watts each to one channel at 40 watts. To do
this depress the CONFIGURATION SWITCH and follow the silk screen-
ing on the chassis for the mono-bridge operation.
+
-
PA202
Mini Two Channel Amp 20 + 20 watts
INPUTS
LEFT
RIGHT
BRIDGE INPUTS
- +
- +
RIGHT
LEFT
PWR
WARNING:
THE MINIMUM SPEAKER IMPEDANCE FOR
STEREO (2 CHANNEL OPERATION) IS 4 OHMS EACH.
WARNING:
THE MINIMUM SPEAKER IMPEDANCE FOR
MONO/BRIDGE IS 8 OHMS.
IF YOU CONNECT AND USE THE PA202 WITH A LOWER
SPEAKER IMPEDANCE THAN LISTED ABOVE YOU
WILL DAMAGE THE UNIT AND POSSIBLY OTHER
EQUIPMENT THAT IS CONNECTED TO THE PA202.
WARNING:
DO NOT GROUND THE SPEAKER OUTPUT
TERMINALS. THE SPEAKER TERMINALS MAY NOT BE
AT GROUND POTENTIAL.
RIGHT LEFT
OUTPUTS:
BRIDGE
CONFIGURATION
BRIDGE:
STEREO:
CHANNEL VOLUME
LEFT
RIGHT
LIMITER
off
on
Salt Lake City, Utah
4/20
-
PA202
Mini 20 + 20 watt
Power Amplifier
PA202
Mini Two Channel Amp 20 + 20 watts
INPUTS
LEFT
RIGHT
BRIDGE INPUTS
- +
- +
RIGHT
PWR
PA202
Mini Power Amplifier
• RCA Inputs
• Dual volume controls
• Pluggable Screw terminal in and out
• Low noise, efficient operation
• Small compact size
• Class D high efficiency amp

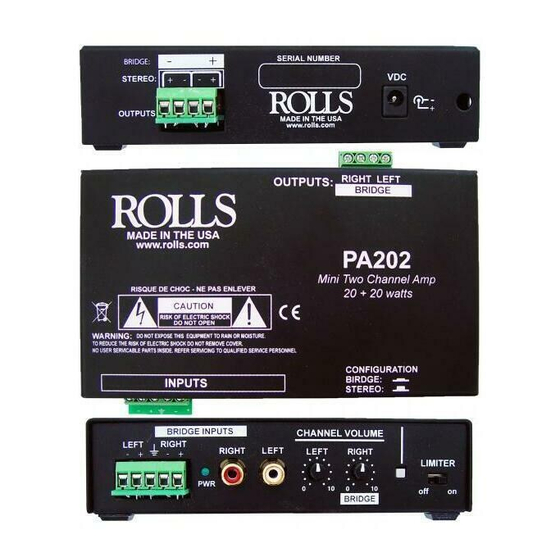

The PA202 is a very compact 20 + 20 watt high efficiency amp
with barrier strip terminals for the balanced input and speaker out-
puts. The unit is perfect for small speakers in small environments.
Great for in ceiling and projector applications where small size is
needed along with class D low radiated heat locations.
Quick Start Guide
RIGHT LEFT
OUTPUTS:
BRIDGE
CONFIGURATION
BRIDGE:
STEREO:
CHANNEL VOLUME
LEFT
LEFT
RIGHT
LIMITER
off
on
Advertisement
Related Manuals for Rolls PA202
Summary of Contents for Rolls PA202
- Page 1 Bridge or Stereo Operation: The bridge - stereo function of the PA202 is a way of converting the unit RIGHT LEFT from two channels at 20 watts each to one channel at 40 watts. To do OUTPUTS: BRIDGE this depress the CONFIGURATION SWITCH and follow the silk screen- ing on the chassis for the mono-bridge operation.
- Page 2 The limiter is a function that will not allow very loud signals to pass through the PA202 by limiting their volume temporarily to a normal level, preventing damage to the speakers or the unit its self. It is important to note that the limiter utilizes a circuit that decreases the amount of very loud signals it does not cut out all potentially loud signals.
