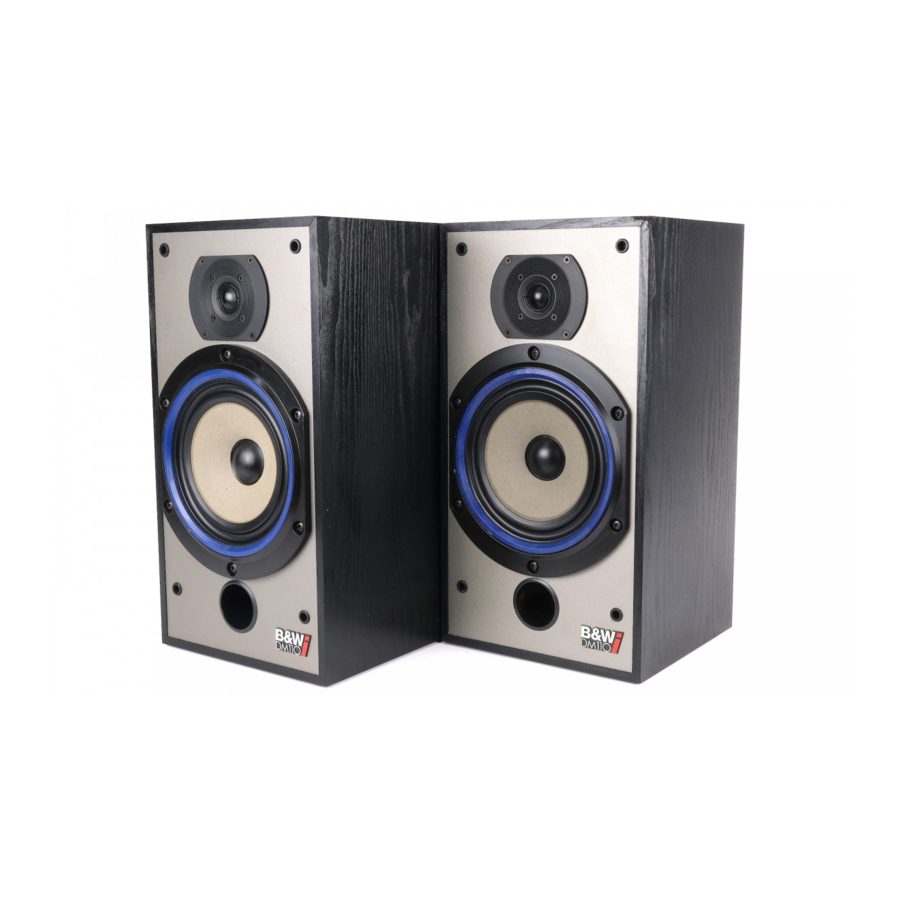

DM110i
Stand-mount/Bookshelf loudspeaker system
Product Summary
The DM110i is a 2-way vented box standmount/bookshelf system with high power handling
capacity.
Super sensitive, with high acoustical output yet affordable.
Technical highlights
Modal analysis techniques revealed a simple bonding technique of corner joints could improve
rigidity and reduce coloration.
New thinking on crossover design has also led to the provision of higher safe power handling
and fuse protection overload.
The driver chassis have non-magnetised castings for all the bass midrange units ensuring resonant
free high-level sound of the highest amplitude.
Drive Units
1 x 26mm high-frequency driver with
dome/coil construction of special
polymide material
1 x 200mm nominal piston dia and
26mm high temperature voice coil with
critically impregnated composite short
fibre cone
Frequency Response
± 3dB 70Hz to 20kHz
B&W Loudspeakers Ltd reserves the right to amend details of the specifications without notice in line with technical developments. E & OE. All trademarks acknowledged.
Sensitivity
90dB (2.83V, 1m)
Power Handling
10W – 75W
Dimensions
Height: 490mm Width: 260mm
Depth: 250mm
Finish
American Walnut or Black Ash vinyl
www.bwspeakers.com
