Electro-Harmonix XO ENIGMA: Q BALLS Manual

from EHX Customer Service before returning your product. Include with your returned unit: a
written description of the problem as well as your name, address, telephone number, e-mail
address, and RA#; and a copy of your receipt clearly showing the purchase date.
United States & Canada
EHX CUSTOMER SERVICE
ELECTRO-HARMONIX
c/o NEW SENSOR CORP.
55-01 2ND STREET
LONG ISLAND CITY, NY 11101
Tel: 718-937-8300
Email: info@ehx.com
Europe
JOHN WILLIAMS
ELECTRO-HARMONIX UK
13 CWMDONKIN TERRACE
SWANSEA SA2 0RQ
UNITED KINGDOM
Tel: +44 179 247 3258
Email: electroharmonixuk@virginmedia.com
This warranty gives a purchaser specific legal rights. A purchaser may have even greater
rights depending upon the laws of the jurisdiction within which the product was purchased.
To hear demos on all EHX pedals visit us on the web at www.ehx.com
Email us at info@ehx.com
– FCC COMPLIANCE –
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment under FCC rule

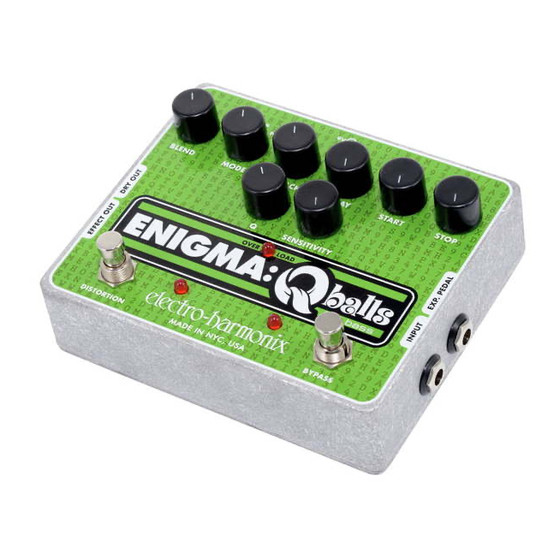

ENIGMA: Q BALLS
FOR BASS
ongratulations on your purchase of the Enigma: Q-Balls envelope
controlled filter for bass! This is a very powerful tool for musical
expression that opens a new horizon of sonic potential for your
bass. Please take a few minutes to familiarize yourself with the
Enigma's controls and how they work.
Envelope controlled filters are a unique type of sound modifier where the
intensity of the effect is controlled by the user's playing dynamics. The
volume and dynamic of the incoming audio signal is used to control a swept
filter. As the volume increases or decreases so does the frequency of the
filter.
With 3 selectable filter modes, along with START, STOP, ATTACK, DECAY,
Q and SENSITIVITY controls, all of the classic Q sounds are available to
the user. Also, many new sounds and vivid textures can be achieved like
never before. A new analog distortion circuit was created specifically for the
ENIGMA, and adds a dynamic edge to the filters sound. With the addition of
an expression pedal input (expression pedal not included), the ENIGMA
provides manual control of the filter sweep.
WARNING: Use only the US96DC-200Bl AC Adapter that the
ENIGMA comes supplied with. Do not use any other AC Adapters.
Using other AC adapters, even those made by Electro-Harmonix, could
cause harm to the unit, the adapter or you. The ENIGMA does not use
batteries.
— CONTROLS —
BLEND – Controls the output mix of the dry and effected signal. Fully CCW is
100% dry with no effect added. Fully CW is 100% wet with no remaining dry
signal.
— POWER —
