Electro-Harmonix XO The Worm Manual

- FCC COMPLIANCE -
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation. If the device is not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communications and void the user's authority to guarantee the equipment.
This equipment has been tested and found to comply with the limits for a
Note:
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment under FCC rules.

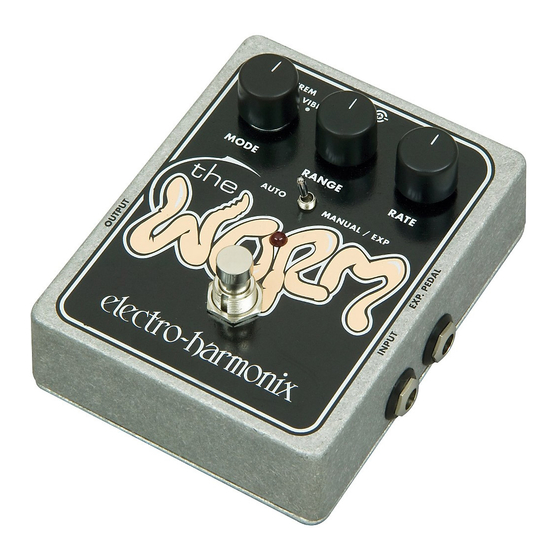

The Worm
Analog Modulation Pedal
Congratulations on your purchase of The Worm, a multi-functional modulation pedal.
The Worm is four analog effects in one: Modulated Wah, Phaser, Tremolo and Vibrato.
Your Worm comes equipped with a 24 volt DC (inner positive) / 100mA external power
adapter. Use only the power adapter that is supplied! Using the wrong adapter can cause
serious bodily injury and may damage your unit. This will void the warranty.
MODE Rotary Switch – Selects between the four different types of effects: WAH,
PHASER, TREMOLO and VIBRATO.
RANGE Knob – Adjusts the amount of effect that will be applied to your signal. As
the RANGE knob is turned from the Counter-Clockwise (minimum) position to the
Clockwise (maximum) position, the intensity of the effect will increase.
RATE Knob – Adjusts the speed of modulation for the effect. As the RATE knob is
turned from the Counter-Clockwise (minimum) position to the Clockwise (maximum)
position, the speed of the effect will go from slow to fast.
AUTO / MANUAL/EXP Toggle Switch – Set this switch to AUTO mode for normal
modulation use. When this switch is set to MANUAL/EXP mode, the internal
modulation waveform is disconnected from the circuit and the RANGE knob will
sweep through the effect. In addition, while in MANUAL/EXP mode, you can connect
an expression pedal or control voltage (between 0 – 5V only) to the EXP. PEDAL jack
and use the expression pedal to sweep the effects.
STATUS LED and FOOTSWITCH – If the effect is engaged, the LED will blink at
the same rate that the effect modulates. If the LED is off, The Worm is in True
Bypass mode. The footswitch engages/disengages the effect.
-AC ADAPTOR-
- CONTROLS -
