Electro-Harmonix CHILLSWITCH Manual

- WARRANTY INFORMATION -
Please register online at http://www.ehx.com/product-registration or complete
and return the enclosed warranty card within 10 days of purchase. Electro-
Harmonix will repair or replace, at its discretion, a product that fails to operate
due to defects in materials or workmanship for a period of one year from date of
purchase. This applies only to original purchasers who have bought their product
from an authorized Electro-Harmonix retailer. Repaired or replaced units will then
be warranted for the unexpired portion of the original warranty term.
If you should need to return your unit for service within the warranty period,
please contact the appropriate office listed below. Customers outside the regions
listed below, please contact EHX Customer Service for information on warranty
repairs at info@ehx.com or +1-718-937-8300. USA and Canadian customers:
please obtain a Return Authorization Number (RA#) from EHX Customer
Service before returning your product. Include with your returned unit: a written
description of the problem as well as your name, address, telephone number, e-
mail address, and RA#; and a copy of your receipt clearly showing the purchase
date.
United States & Canada
EHX CUSTOMER SERVICE
ELECTRO-HARMONIX
c/o NEW SENSOR CORP.
55-01 2ND STREET
LONG ISLAND CITY, NY 11101
Tel: 718-937-8300
Email: info@ehx.com
Europe
JOHN WILLIAMS
ELECTRO-HARMONIX UK
13 CWMDONKIN TERRACE
SWANSEA SA2 0RQ
UNITED KINGDOM
Tel: +44 179 247 3258
Email: electroharmonixuk@virginmedia.com
This warranty gives a purchaser specific legal rights. A purchaser may have even
greater rights depending upon the laws of the jurisdiction within which the
product was purchased.
To hear demos on all EHX pedals visit us on the web at www.ehx.com
Email us at info@ehx.com

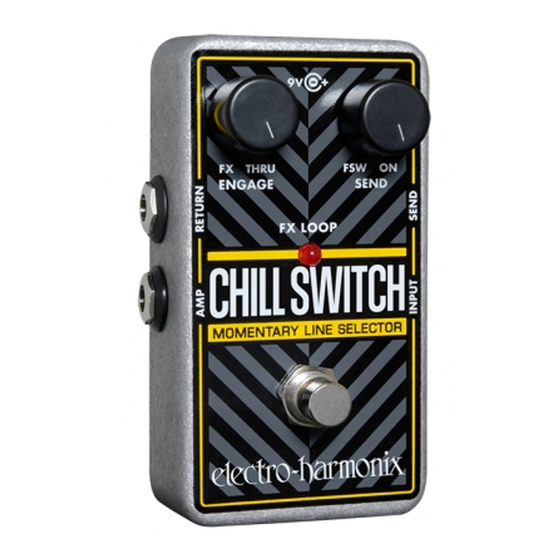

CHILLSWITCH
MOMENTARY LINE SELECTOR
Congratulations on your purchase of the Electro-Harmonix CHILLSWITCH.
– KILL SETUP –
In this setup, the CHILLSWITCH allows you
to quickly switch between mute and unmute
by pressing the footswitch, resulting in a
hard rhythmic tremolo effect.
INPUT JACK – Connect to the output of
your instrument or another effects pedal
SEND JACK – Disconnect
RETURN JACK – Disconnect
AMP JACK – Connect to the input of your
amplifier or another effects pedal
- LED INDICATOR –
In either setup, the LED reflects the signal present at the AMP jack.
LED OFF – The AMP jack outputs the original INPUT signal
LED ON – The AMP jack outputs the signal from the effects loop (or no signal, in Kill Setup)
– LINE SELECTOR SETUP –
In this setup, the CHILLSWITCH allows you
to quickly switch between an effects loop
and your dry signal by pressing the
footswitch. Depending on the effects in the
loop, it could trigger a burst of distortion, or
perhaps a foot-controlled delay feedback...
the possibilities are endless!
INPUT JACK – Connect to the output of
your instrument or another effects pedal
SEND JACK – Connect to the input of your
effects loop
RETURN JACK – Connect to the output of
your effects loop
AMP JACK – Connect to the input of your
amplifier or another effects pedal
