Electro-Harmonix CHILLSWITCH Manual page 2

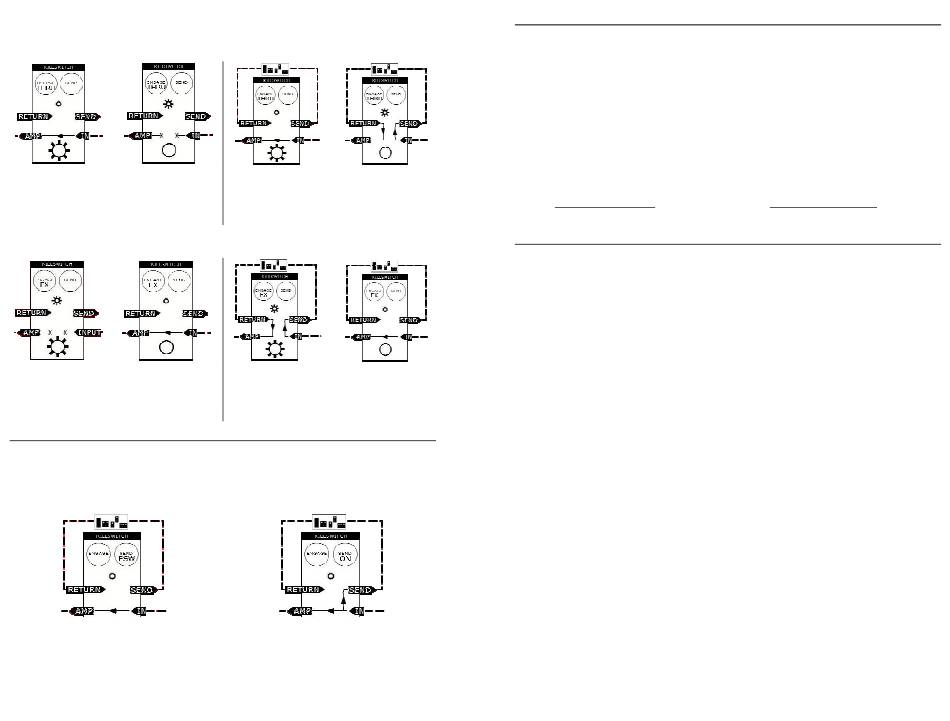

– "ENGAGE" ROTARY SWITCH –
The ENGAGE rotary switch affects how the footswitch controls the AMP output.
– KILL SETUP –
ENGAGE: THRU
While footswitch is
While footswitch is
pressed, the INPUT
released, the AMP
signal travels directly
output is muted
to the AMP output
– KILL SETUP –
ENGAGE: FX
While footswitch is
While footswitch is
released, the INPUT
pressed, the AMP
signal travels directly
output is muted
to the AMP output
– "SEND" ROTARY SWITCH –
The SEND rotary switch allows you to choose between routing the INPUT signal to the SEND
jack at all times (ON position) or only when the FX Loop is active (FSW position). The setting
of the SEND switch is ignored when using the KILL setup.
SEND: FSW
The INPUT signal only travels to the SEND
jack when the FX Loop is activated.
Use this setting with an envelope-triggered
effect (auto-wah): The CHILLSWITCH will
reset the envelope sweep with each press of
the footswitch
– LINE SELECTOR SETUP –
ENGAGE: THRU
While footswitch is While footswitch is
pressed, the INPUT released, the INPUT
signal travels directly signal travels
to the AMP output* through the FX Loop
*See "SEND" ROTARY SWITCH section
– LINE SELECTOR SETUP –
ENGAGE: FX
While footswitch is While footswitch is
pressed, the INPUT released, the INPUT
signal travels signal travels directly
through the FX Loop to the AMP output*
*See "SEND" ROTARY SWITCH section
SEND: ON
The INPUT signal always travels to the Send
jack
Use this setting with a delay effect:
The CHILLSWITCH will continuously send
the INPUT signal to the delay
Power from the internal 9-volt battery is activated by plugging into the INPUT jack. The input
cable should be removed when the unit is not in use to avoid running down the battery.
The barrel connector on the front of the CHILLSWITCH is for a 9-volt battery eliminator
capable of delivering at least 25 mA of current. The optional 9V power supply from Electro-
Harmonix is 9.6DC-200BI (same as used by Boss™ & Ibanez™) 9.6 Volts DC 200mA. The
power supply must have a barrel connector with center negative. The unit's battery may be
left in or taken out when the eliminator is in use. The actual current draw of the
CHILLSWITCH is 12.5 mA.
To change the 9-volt battery, remove the 4 screws on the bottom of the CHILLSWITCH.
Once the screws are removed, take off the bottom plate and change the battery. Please do
not touch the circuit board or you risk damaging a component.
Input Jack Impedance
INPUT – 2.2 MΩ
RETURN – 2.2 MΩ
- FCC COMPLIANCE -
This device complies with part 15 of the FCC Rules.
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. If the device is not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications and void
the user's authority to guarantee the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment under FCC rules.
- POWER –
Output Jack Impedance
AMP – 220 Ω
SEND – 220 Ω
Operation is subject to the
–
