Kiwi Camping Morepork 1 Swag Pitching Instructions

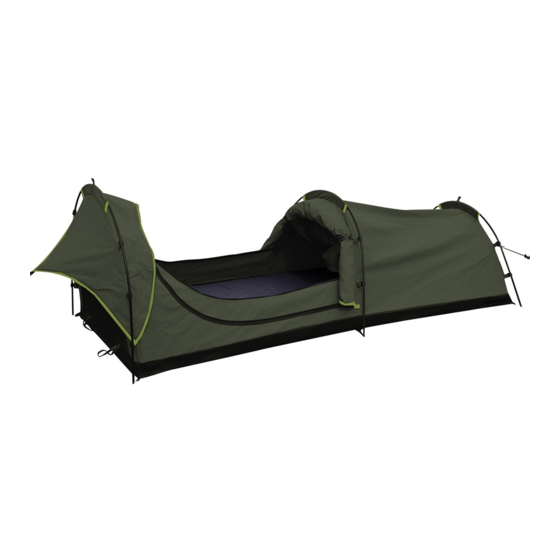

Morepork 1 Swag
Model No. KC077-022
PITCHING INSTRUCTIONS
Your swag includes:
Foam mat (50mm high-density foam)
8 x steel pegs (6mm)
1 x aluminium alloy pole (2055mm x 9.5mm)
1 x aluminium alloy pole (1805mm x 9.5mm)
1 x aluminium alloy pole (1525mm x 9.5mm)
2 x guy ropes
1. Select a dry, level site and clear the ground of any
sharp objects.
2. Remove the swag from it's carry bag, untie buckles
and unroll swag, keep all zips closed to keep the
swag in its correct shape.
3. Peg out the base pegging points.
4. Assemble the three aluminium alloy poles by
interlocking the sections.
To make sure the tent stays
in place insert the pegs into
the ground at a 45° angle,
not straight down.
5. Feed the longest pole through the sleeve at the head
of the swag. Secure the ends with the pin and rings.
Clip speed-clips to pole to help hold the pole in place.
6. Insert the middle sized pole through the middle
sleeve. Secure the ends with the pin and rings. Clip
speed-clips to pole to help hold the pole in place.
7. Insert remaining pole into the sleeve at the foot of the
swag. Secure the ends with the pin and rings. Clip
speed-clips to pole to help hold the pole in place.
8. Rope out the guy ropes and fine tune so it remains
taut and positioned correctly.
REVERSE THE PROCEDURE TO LOWER SWAG
