iM3 P6 Directions For Use Manual

Piezo ultrasonic scaler
Hide thumbs Also See for P6:
Table of Contents

Advertisement

Quick Links

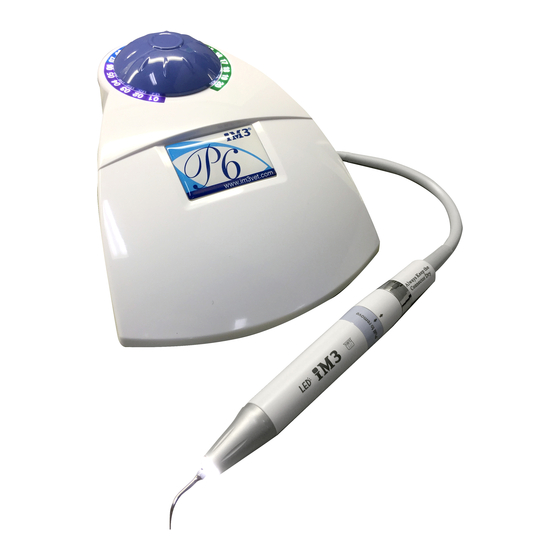

iM3 P6/P6 LED Piezo Ultrasonic Scaler
Manufactured for and distributed by:
iM3 Pty Ltd, 21 Chaplin Drive, Lane Cove NSW 2066, Australia
iM3 Dental Ltd
IRELAND
Tel: +353 (0) 1 6911277
sales@im3dental.com
www.im3vet.com
Directions for Use
iM3 Pty Ltd
Sydney, AUSTRALIA
Tel: +612 9420 5766
sales@im3vet.com
made in Taiwan
iM3 Inc
Vancouver, WA USA
Tel: (800) 664-6348
info@im3usa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6 and is the answer not in the manual?

Questions and answers

Related Manuals for iM3 P6

Summary of Contents for iM3 P6

  • Page 1 P6/P6 LED Piezo Ultrasonic Scaler Directions for Use Manufactured for and distributed by: iM3 Pty Ltd, 21 Chaplin Drive, Lane Cove NSW 2066, Australia iM3 Dental Ltd iM3 Pty Ltd iM3 Inc IRELAND Sydney, AUSTRALIA Vancouver, WA USA Tel: +353 (0) 1 6911277...

  • Page 2: Copyrights

    Bonart Co., Ltd. owns all rights to this publication. This publication shall be used solely as a reference for operation, maintenance, and repair of Bonart equipment. No part of this document may be reproduced or distributed in any form for any other purpose. In the event of inadvertent or deliberate publication, Bonart intends to enforce its rights to...

  • Page 3: Operator Safety

    The iM3 P6 Piezoelectric Ultrasonic Scaler generates ultrasonic waves in the hand piece to vibrate the tip, which allows the iM3 P6 to remove calculus and tartar easily. These ultrasonic waves are created by 4 ceramic piezoelectric plates subjected to high frequency alternating currents.

  • Page 4: Table Of Contents

    Table of Contents ……………………………... Copyrights ..………………………. Operator Safety ..……………………………. Contents ..……………………………. Section I. Indications for use …………………….. Section II. Contraindications and Warnings .…………………………….. Section III. Precautions ……………………………... Section IV. Infection Control …..………………………….. Section V. Installation Section VI. General Descriptions and Information of Parts ……………. ……………………………….

  • Page 5: Section I. Indications For Use

     Do not use the iM3 P6 if the patient or operator is wearing a pacemaker.  Do not immerse the iM3 P6 in water or liquid. If the iM3 P6 has water damage, return the machine to iM3 for servicing.
  • Page 6 3-B: Precautions for Ultrasonic Prophylaxis Procedures  Scaler tips (piezo tips) will wear with use. Tips with 2mm of wear will lose approximately 50% of their scaling efficiency. In general, it is recommended that tips be discarded and replaced every 4-6 months to maintain optimal efficiency and avoid breakage.

  • Page 7: Section Iv. Infection Control

    3-D: Precautions for Tips For proper installation of the tips, please follow the instructions below. A. Screw and secure the tip clockwise on the hand piece with your fingers. B. Insert the attached tip into the torque wrench opening. C. Ensure that the root of the tip is in the opening of the torque wrench. D.
  • Page 8 (dry heat, radiation, ethylene oxide, gas, low- temperature plasma, etc.) CAUTION: Prior to cleaning and sterilizing your iM3 P6 unit, always remember to turn off the device by using the power switch and disconnect the power plug from the outlet.

  • Page 9: Section V. Installation

    5-B: Water Line Requirements  Incoming water supply line pressure to the iM3 P6 must be 25 psi (172 kPa minimum) to 60 psi (414Kpa maximum). If your dental water supply line pressure is above 60 psi, install a water regulator on the water supply line to your iM3 P6 unit.
  • Page 10 NOTE: Other piezo tips are available and can be purchased separately through distributors. Included items are subject to change depending on location. NOTE: Upon receipt of your iM3 P6, check your iM3 P6 unit for any damages. If any damages are found, please contact your dealer immediately.
  • Page 11 Inspect all connections for leaks. To remove the water line from the iM3 P6 scaler, first turn off the water supply or disconnect the water supply line. Then loosen nut on the water tube from the receptacle of the unit and gently pull the water tube out.
  • Page 12 5-I: Assembling the Scaler Unit 1. Ensure that the power switch is set to off. If plugged in, the power indicator light should not be lit. 2. Plug the power cord of the main unit into a grounded AC power outlet. 3.

  • Page 13: Section Vi. General Descriptions And Information Of Parts

    Section VI: General Information and Parts Description Fig.3, Outlook diagram 1. Main Unit The main unit generates power and produces a signal that is passed to the hand piece. The hand piece is then powered up and vibrates the installed tip. 2.

  • Page 14: Section Vii. Techniques

    5. Hold the hand piece over a sink or drain with a tip installed. Verify that water is reaching the tip. 6. Check your iM3 piezo tip for wear and replace as needed. Tips should be disposed of and replaced every 4-6 months.
  • Page 15 4. During treatment, try to keep the angle between the surface of the tooth and scaling insert at 15 degrees. If the patient experiences any discomfort during treatment, follow the suggestions below:  Increase your manual movement speed of the hand piece on the surface when treating sensitive areas.

  • Page 16: Section Viii. System Maintenance

    4-6 months. 8-C. Main Unit Maintenance The housing of the iM3 P6, as well as the hand piece cord, should be cleaned and disinfected (using alcohol or soap and warm water) on a daily basis.
  • Page 17  Electromagnetic Immunity The device is intended for use in the electromagnetic environment specified below. The user must assure that the device is used in such an environment. Immunity Test Item IEC 60601 Test Level Compliance Level Electromagnetic Environment - Guidance Electrostatic ±...
  • Page 18  Electromagnetic Immunity, Handheld Radiofrequency Equipment The device is designed for use in the magnetic and electromagnetic environment described in the table below. The user must ensure conformity of the electromagnetic environment. Immunity test Test level Compliance Level Electromagnetic Environment Guidance Portable and mobile radiofrequency communication devices must not be used near the medical device (including cables) at a distance below that recommended and calculated...

  • Page 19: Section X. Troubleshooting

    Section X: Troubleshooting Although service and repair of the iM3 P6 system should be performed by iM3 personnel, the following are some basic trouble shooting procedures that will help save you time and avoid making service calls.
  • Page 20 Water dial is set too low. Check the dial setting. 10-B Service and Support For technical support and assistance, please refer to the information below. iM3 Dental Ltd iM3 Pty Ltd iM3 Inc IRELAND Sydney, AUSTRALIA Vancouver, WA USA...

  • Page 21: Section Xi. Symbols

    Section XI: Symbols CE marking of conformity Fragile; handle with care Manufacturer Keep dry Date of manufacture This side up Authorized representative in Requires immediate attention the European Community Type BF equipment Serial number Consult instructions for use Illumination, LED Autoclavable up to 135 °C Section XII: Specifications ...

  • Page 22: Section Xiii. Disposal

    15% ~ 85% Relative Humidity  860~1060 hPa Atmospheric pressure Transport and storage conditions  10℃~60℃ Temperature  15% ~ 85% Relative Humidity Section XIII: Disposal Please follow county and state regulations for disposal of the iM3 P6. - 21 -...
  • Page 23 Bonart Co., Ltd. No.80, Wuxun St., Anle Dist., Keelung City, 20446, Taiwan, R.O.C. Tel: 886-2-22983980 2460 Fax:886-2-22983981 Email:generalinquiries@bonartmed.com COPYRIGHT© BONART CO., LTD. - 22 -...
