iM3 42-12
Veterinary Dental Scaler
Instruction Manual

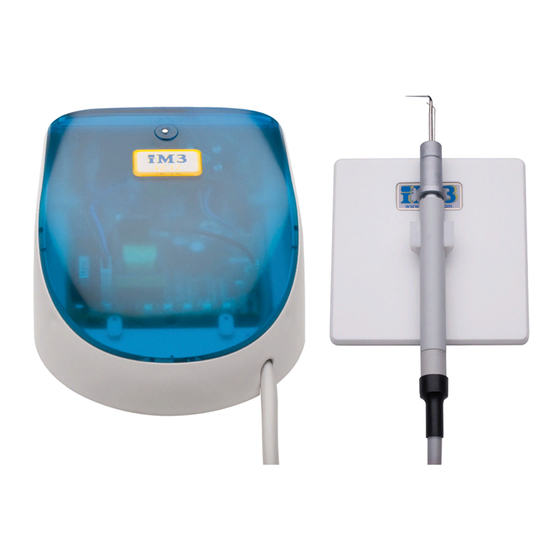

The 42-12 is a „State of the Art‟ Scaler. The unique Titanium Scaler tips, high
operating frequency (42,000Hz), with their circular tip movement, (with a very
small amplitude 0.01 – 0.02mm), produces a truly unique instrument. It not
only scales in half the time of conventional "Jack Hammer" scalers, but also
produces less enamel damage due to its circular tip movement. It can also
scale sub-gingival pockets safely to a depth of 12mm – hence the name 42-
12.
iM3 Inc.
12119 NE 99
Suite 2060
Vancouver, WA 98682
U.S.A
Web: www.im3vet.com
©
iM3 Pty Ltd (Australia)
th
Street
9/31-33 Chaplin Drive
Lane Cove N.S.W. 2066
Sydney, Australia
Tel (02) 9420 5766
iM3 Inc
2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iM3 42-12

Summary of Contents for iM3 42-12

  • Page 1 Veterinary Dental Scaler Instruction Manual The 42-12 is a „State of the Art‟ Scaler. The unique Titanium Scaler tips, high operating frequency (42,000Hz), with their circular tip movement, (with a very small amplitude 0.01 – 0.02mm), produces a truly unique instrument. It not only scales in half the time of conventional “Jack Hammer”...
  • Page 2 42-12 Scaler Unit Components (see page 8)
  • Page 3 17) Power setting display Lights 18) Coolant Filter #W0530 US #P7235 The iM3 42-12 comes with 2 tip inserts. 1. A Universal Tip approximately 12mm (1/2”) long and US #O0809 2. A Perio Tip 18mm (3/4”) long. See p8 for tips US #O0806...

  • Page 4: Getting Started

    Handpiece down, place it in the holder. It will help reduce accidental stack breakage. 2 The iM3 2000 Professional Dental Unit has a handpiece holder on the front for the 42-12.

  • Page 5: Operation

    OPERATION 1. The 42-12 is turned on or off at the rear of the Control Box (16). When „On‟, the switch will be illuminated red. The Power lights will also be illuminated. 2. The Handpiece tip is activated by sliding the silver control ring (5) to the „ON‟...

  • Page 6: Operating Technique

    OPERATING TECHNIQUE It is important to use the 42-12 correctly to benefit from its unique features. 1. Always use the tip parallel to the tooth, with the side of the tip on the tooth. 2. Do not use the tip as a pick or chisel at right angles to the tooth, as this will scratch the enamel.
  • Page 7 7. Changing Scaler Tips. Hold the scaler tip by the metal collar, and twist out of the handpiece. A twisting motion is recommended as the best way of removing and inserting scaler tip inserts through the internal handpiece sealing O ring. Shake the Handpiece to remove coolant liquid.

  • Page 8: Handling And Care

    HANDLING & CARE The scaler tip inserts – The shape of the tip is vital to the efficiency of the circular motion and ultrasonic effect.DO NOT SHARPEN, BEND OR RE- SHAPE THE TIP. Ferrite Rod Changing Instructions...
  • Page 9 INSTRUMENT TIPS 1. Universal Tip AUS #O6840 US #O0809 (supplied with 42-12) For removal of Supra and Sub-gingival calculi in all areas. For general scaling with moderate calculi. 2. Perio Tip. AUS #O6850 US #O0806 (supplied with 42-12) Removes Supra and sub-gingival calculi in all areas. Particularly useful in sub-gingival pockets, as deep as 13mm.

  • Page 10: Troubleshooting

    Steam sterilise the Handpiece at a maximum temperature of 121ºC / 250ºF (Rubber Pack Cycle). iM3 recommends autoclaving between patients. 3. Control Box & Cord (1) and (3) Wipe with alcohol, soap or water based disinfectant solution. Solutions...

  • Page 11: Service And Repair

    Do not attempt to open the control box (1). Service and repair can only be carried out by an approved iM3 Dealer. The equipment must be used strictly in accordance with the Manufacturer‟s Guidelines. Any alteration or repair carried out without the authority of iM3 will void all warranties. Contact your authorised dealer or:...

  • Page 12: Warranty

    (inserts), or broken handpiece tips. Freight to and from Repair Centre will be the Owner‟s responsibility. The iM3 42-12 has been specifically created and designed by Philip Bloom of iM3 Australia, exclusively for Veterinary Dental use. No other ultrasonic dental scaler meets the specific needs of the Veterinary Dental Professional as does the 42-12.
