Version: May 2008
iM3 Pty Ltd.
Unit 9/31-33 Chaplin Drive
Lane Cove NSW 2066
Tel: + 61 2 9420 5766
Fax: + 61 2 9420 5677

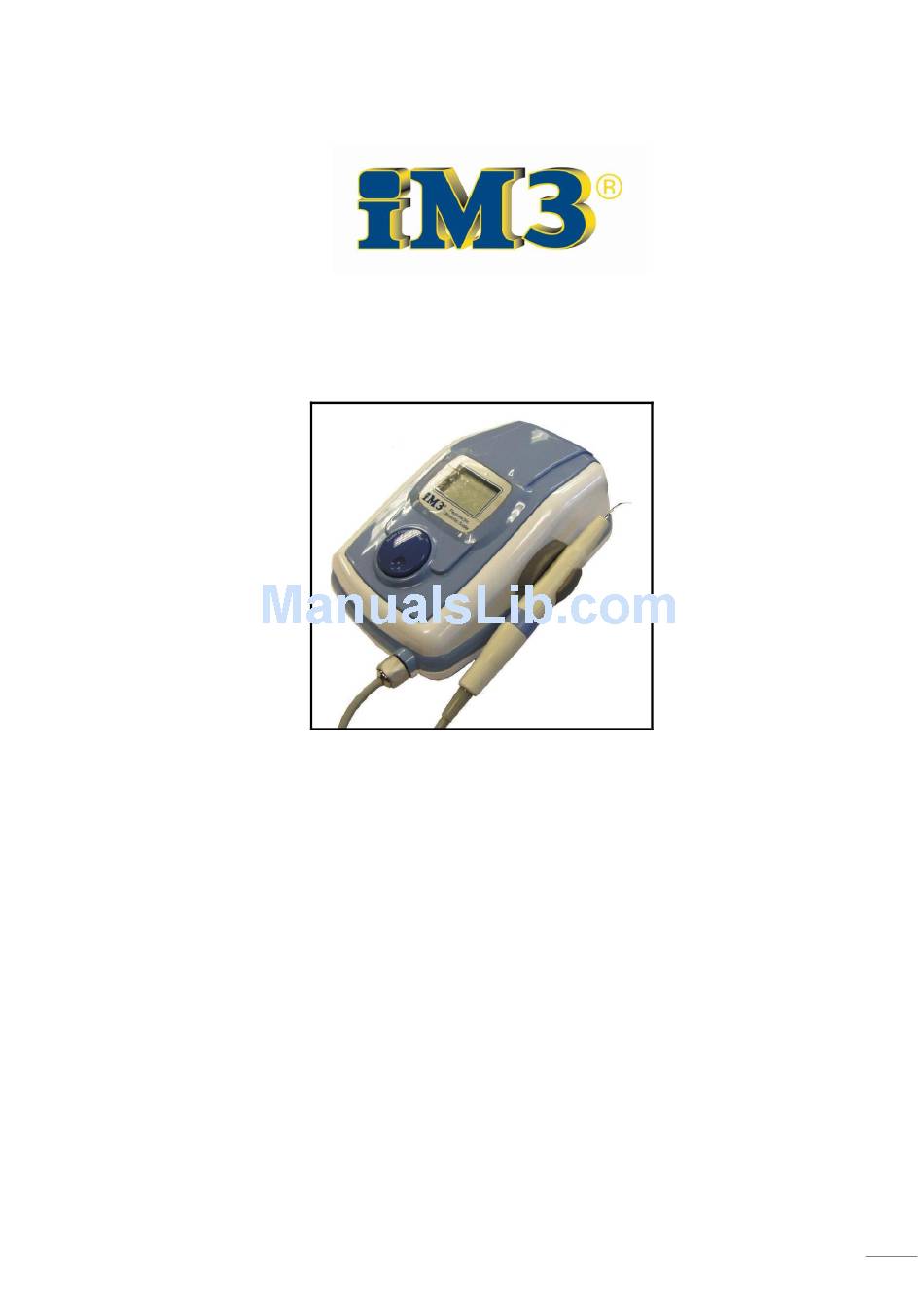

Model P4 Ultrasonic Scaler
Owners Manual
User Manual iM3 P4
Piezoelectric Ultrasonic Scaler
iM3, Inc.
th
12119 NE 99
Street, Suite 2060
Vancouver, Washington, USA
Tel: + 1 800 664 6348
Fax: + 1 360 254 2940
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iM3 P4
Summary of Contents for iM3 P4
-
Page 1: Owners Manual
Model P4 Ultrasonic Scaler Owners Manual Version: May 2008 User Manual iM3 P4 Piezoelectric Ultrasonic Scaler iM3 Pty Ltd. iM3, Inc. Unit 9/31-33 Chaplin Drive 12119 NE 99 Street, Suite 2060 Lane Cove NSW 2066 Vancouver, Washington, USA Tel: + 61 2 9420 5766... -
Page 2: Table Of Contents
Email: sales@im3vet.com Email: info@im3usa.com Web: www.im3vet.com Web: www.im3vet.com Contents Operator Safety………………………………………………………………….. Warnings……………………………………………………………………………… Notes before using…….………………………………………………………. Preface ………………………………………………………………………………. Contents …………………………………………………………………………….. I. Descriptions and Functionalities of Components …………… II. Installation Guide …………………………………………………………. III. Preparation and Practice before the First Use …………… IV. Operation Procedures …………………………………………………… V. -
Page 3: Operator Safety
Calls attention to a potential danger that requires correct procedures or practices in order to prevent personal injury. SYMBOLS “BF” symbol indicates the ART-P4 was manufactured according to the degree of protection against electric shock for this type BF equipment. -
Page 4: Warnings
A patient with pacemaker cannot be treated with the equipment. A shielded AC power cord must be used with this equipment. iM3 -P4 should be powered from a separate wall outlet with grounding point. Attention! Avoid use of this machine around Pacemakers. -
Page 5: Notes Before Using
Notes before using: The electric power used must be grounded. If this requirement is not met, it could cause damage to the Scaler and more importantly harm to the user. The machine should be placed on a steady and stabled platform or table. -
Page 6: Preface
The unit is a very powerful apparatus. There are linear scales of power adjustment for removing prostheses. This allows very fine adjustment to suit each clinical situation. With a large range of Tips, the unit is suitable with different kinds of works. iM3 - P4 Operation Modes: Perio, Scaling and Endo ... -
Page 7: Descriptions And Functionalities Of Components
I. Descriptions and Functionalities of Components 1. Main Unit It is the heart of the scaler. Functionally, the main unit generates the needed 29 KHz- operation-signal and passes it onto the handpiece, and thus induces power to vibrate the tip inside the handpiece accordingly. Due to loading variations, a signal from the handpiece will be fed back to the main unit so that the main unit can track the variation of the loading and adjust the intensity of the controlling signal accordingly. - Page 8 4. Power Cord 5. Water Tubing Connect to pressurized water supply 6. LCD Panel User can adjust the power level and operation mode clearly and easily by looking at the LCD panel. The figure and scale show the current power level. The operation mode tells user, which appropriate insert should be applied.
-
Page 9: Installation Guide
II. Installation Guide 1. Unpacking When unpacking the box, check iM3 - P4 for any damage. If damaged, please contact your dealer immediately. Enter the unit serial number on your warranty card mail it within 10 days after setting up the machine. - Page 10 Fit a new fuse with the correct rating and refit the cover of the fuse-holder. The fuse will be 2A/250V-delay action type. 4. Setting Up It is fairly simple to install the IM3 Scaler. Just unpack the IM3 Scaler box and connect the components as shown in the figure below. Figure 3. ART-P4 setting up diagram Check the “ART-P4”...
-
Page 11: Preparation And Practice Before The First Use
III. Preparation and Practice before the First Use To better utilize all the functions and maximize the performance of the IM3 Scaler, it is suggested that before treating patients, operators should practice on models/aluminum plates to familiarize themselves with the system. -
Page 12: Operation Procedures
Frontal application (E2 TIP) Using slight pressure, apply the flat end of the tip directly tartar buildup. The tip should be used in a chisel-like manner on the tartar with slight back and forth movement. Do not angle the tip so that the end is bearing down directly onto the tooth surface, damage to the enamel will result. -
Page 13: Maintenance
Place the tip into the patient’s mouth and use the foot control to activate the handpiece and water flow. V. Maintenance The iM3 unit does not need a special maintenance routine but it does need to be regularly and thoroughly cleaned and sterilized (as described in next section). Daily start-up When starting the unit at the beginning of the day: ... -
Page 14: Cleaning And Sterilization
Trouble shooting Product requiring any maintenance should be returned to the customer service department or authorized service facility. iM3 will repair or replace any product under warranty at no charge. VI. Cleaning and Sterilization In this section we describe the procedures to clean and sterilize the scaler. It is important to follow these procedures before using the machine otherwise, patients and/or operators may risk the possibility of infection. -
Page 15: Specifications
(If other detergent is used, choose one that will have no chemical effects on the surface of the plastic case of the Main Unit. If not sure, please test a small area first.) VII. Specifications The iM3 P4 scaler is designed and manufactured to meet the most demanding environment. It’s specifications are listed below Classifications ... - Page 16 Industrial, Scientific and Medical (ISM) Radio- Frequency Equipment Specification 230V ±5% ～50/60Hz 0.16A 36.8VA Power supply Working frequency 26KHz ~ 32KHz Water supply 25～60 PSIG(172~414KPa) Dimension 22.5cm(L) x 18cm(W) x 9.5cm(H) Weight 2.5 Kg(include handpiece) ...
