- Page 1 MT-7615/MT-7616 4 In 1 Fiber Optical Power Multimeter User's Manual...
- Page 2 WARING WARING You are cautioned that changes or modifications not expressly approved in this document could void your authority to operate this device. To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. To avoid electrical shock, do not open the cabinet.

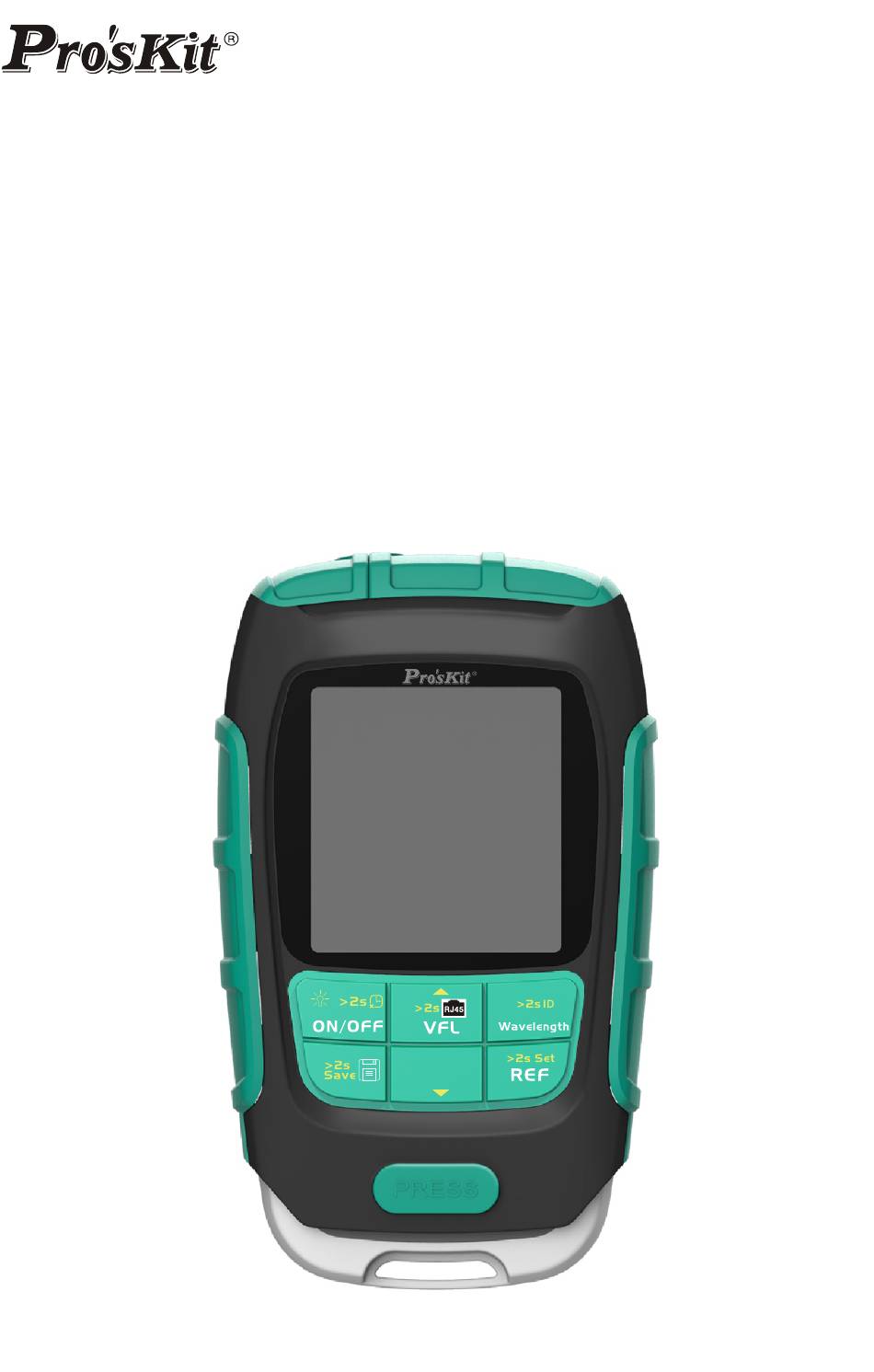

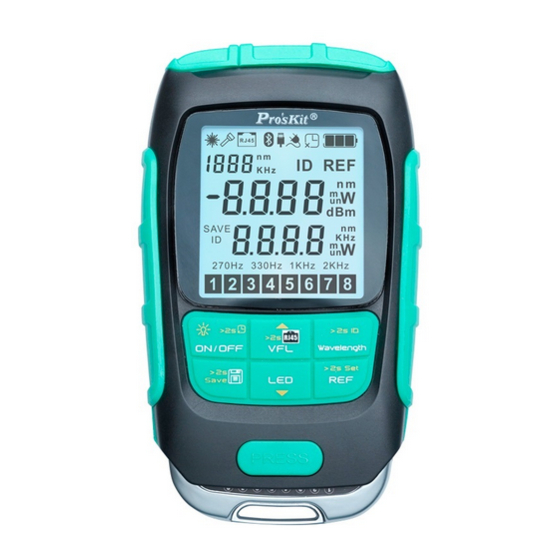

- Page 3 Description LED Lighting OPM Detector MicroUSB Charging Port VFL Detector VFL/Cable Test Wavelength/ID Power On/Off Power Save/Backlight Data Storage REF Function PRESS LED Light Module Lock Cable Test Module...
- Page 4 On/Off and Auto-off 2KHz PRESS Short press " " to turn on the device with auto-off function; to cancel the function, long press " " untill " "appears . After device on, short press " " to turn on/off backlight,long press to turn off the device.
- Page 5 Optical power meter and Offset(self-calibration)Setting 2KHz PRESS Turn on the device and enter OPM interface, short press " " key to switch unit and check REF value; long press to set current value as new REF value. Press " " key to select the wavelength;...
- Page 6 Data Storge SAVE PRESS Long press " " to save the current OPM value,Max 500 data storage;the initial data will be covered after more than 500 data are saved.Short press to check the saved data, switch pages by " "and " ".
- Page 7 VFL/Cable Test and LED Lighting RJ45 PRESS Short press " " to switch VFL output mode. Long press " " to turn on/off cable test mode . Short press " " to turn on/off LED lighting.
- Page 8 Cable Test Module RJ45 PRESS Remote Cable Types:Shielded or unshielded,Cat-5E,Cat-5, Cat-4,Cat-3 Interface:RJ-45 Press the module lock "press" key to pull out the module to test network cable , and push it back after testing;then make sure the module is locked tightly.Long press " "...
-
Page 9: Power Indicator
Power Indicator RJ45 PRESS Four levels indication of power detection Remain 80%---100% Remain 40%---80% Remain 20%---40% Remain less than 20%... - Page 10 Charge The device has a charging function. When the power is less than 20%, you should promptly shut down it and recharge. Long time undervoltage will shorten the lifetime of the rechargeable battery. Insert Micro USB cable to 5V/1A charging adapter, power bank or computer to charge the device, and charging time should be within 24 hours.
-
Page 11: Meter Maintenance
Meter Maintenance General maintenance Optical fiber connect the adapter should avoid contacting with hard objects and keep clean.Should be stored in a dry and ventilated place to avoid moisture. When unuse for long time,charge the battery every 3 months ,and charge 50%~80% of the power. Troubleshooting Failure Failure Cause... -
Page 12: Specification
Specification MT-7615 MT-7616 Detector Type InGaAs Wavelength Response 700-1700nm Range OPM Connector 2.5mm universal connector Measurement 850/ /1300/1310/1490/1550/1625/ 1650 Wavelengths Measurement -70~+10dB Range Resolution 0.01dB (1550,1310nm) 0.2dB/ Accuracy* (1490nm,1625nm,1650nm) 0.3dB/ (850nm,980nm,1300nm) 0.4dB dB,dBm, mW, uW, nW Unit Modulation 270/1k/2kHz Detection... - Page 13 Specification Testing Type Network sequence Testing Distance 600m Illumination Yes(no operation in 10 minutes) Auto Power-off Low Battery Indicator Battery level Charging Socket Micro USB Working Time >50 hours(only OPM) 3.7V/450mAh Power Source Li-ion -10~50 Operation Temperature <90%RH Size 98*59*27mm Weight 100g at 20...
