Summary of Contents for DAB PUMPS LEADER ECOTRONIC Series

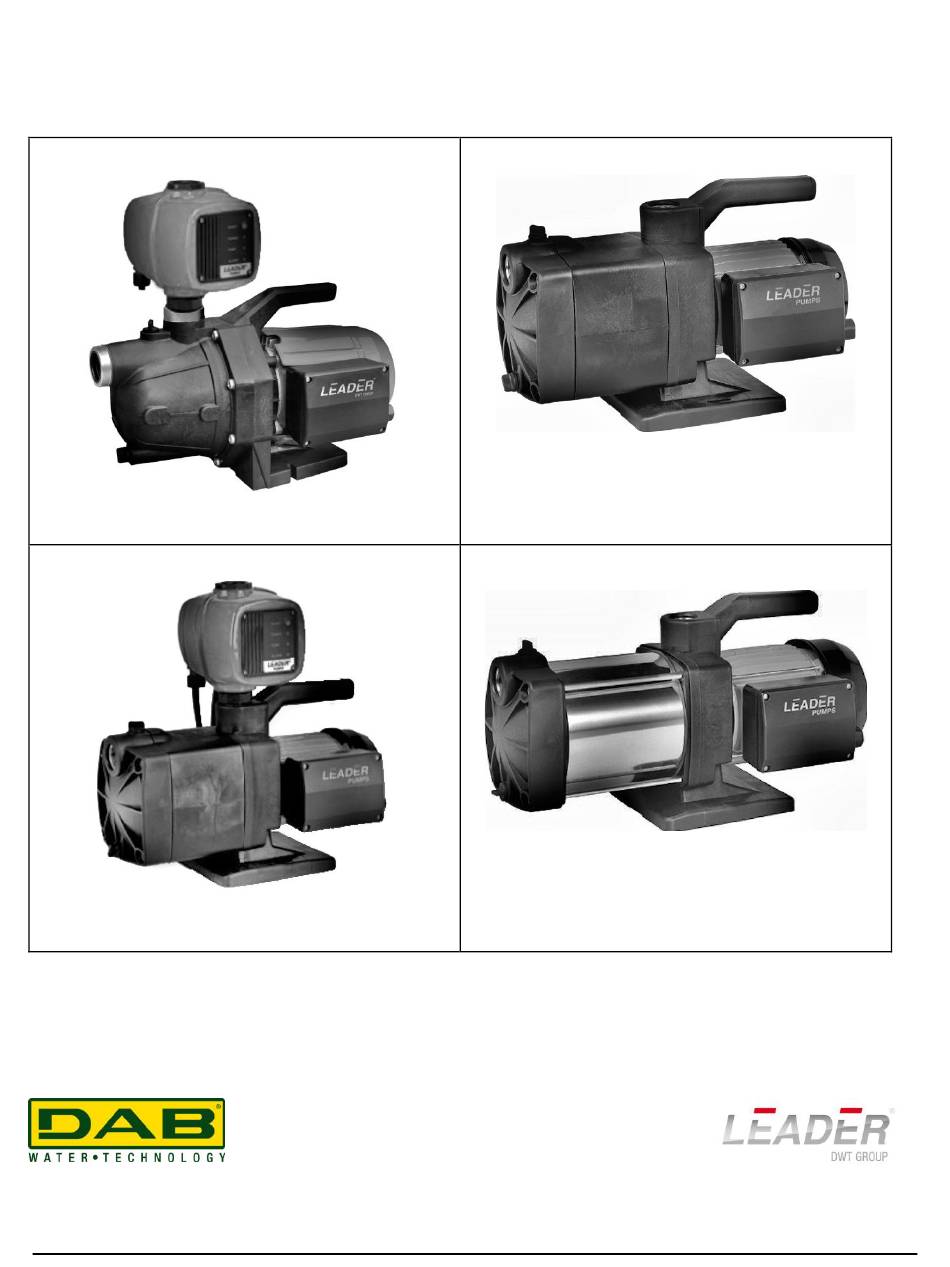

- Page 1 INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE ECOTRONIC ECOPLUS INOXPLUS ECOTRONIC...
-
Page 3: Table Of Contents
CONTENTS page SAFETY MEASURES USE OF VARIOUS TYPES OF PUMPS Self Priming multi-impller surface pumps Electronic boosters with external devices to prevent dry running Boosters with integrated electronics 2.4. Boosters with tank for domestic water supplies STARTING THE PUMP RECOMMENDATIONS TROBLESHOOTING DISPOSAL GUARANTEE... -
Page 4: Safety Measures
SAFETY MEASURES Before starting the pump, read this instruction booklet carefully and keep it in a safe place for future reference For safety reasons, the pump must not be used by anyone who has not read these instructions. The pump must not be used by anyone under 16 years of age or by anyone who has not read and understood the present instruction booklet. -
Page 5: Starting The Pump
° The temperature of the fluid being pumped must never exceed 95 The pump must not be used to pump salt water, sewage, flammable, corrosive or explosive liquids (e.g. petroleum oil, petrol, and thinners), grease, oils or foodstuffs. Comply with the rules and regulations of the local water authority when using the pump for the supply of domestic water. - Page 6 • During the self·priming phase, all laps, valves, etc. on the delivery hose must be fully open in order to allow the air inside the hose lo escape. Before plugging in and starting the pump for the first time, it is necessary that the suction hose and the pump are completely filled with water in order for suction to take place.
-
Page 7: Recommendations
The pump will automatically stop if suction does not occur within 120 seconds and will make another two attempts for another 120 seconds, If at this point the pump does not start, the cause of malfunction must be detected. Possible causes are: the suction hose is not in the water or is allowing air to be sucked in (it must be airtight), the priming connector is not closed properly (air enters), the suction height is excessive (this depends on the pump used but cannot be more than 26 feet deep), the air cannot escape because the delivery hose is blocked or it has a double bend (gooseneck), the suction hose does not have a foot valve or the pump... - Page 8 TROUBLESHOOTING Before taking any troubleshooting action, disconnect the pump from the power supply. lf there is any damage to the power cord or pump, any necessary repairs or replacements must be handled by the manufacturer or his authorized customer support service. or by an equally- qualified party, In order to prevent all risks.
-
Page 9: Disposal
Electronic boosters with electronic safety device FAULT CAUSE SOLUTION 1. The red LED Flashes Lack of water Re-establish the regular flow of water. 2. The red LED stays on Automatic reset Automatic reset attempts exceeded Disconnect and reconnect the power supply. 3.The pump continuously 1)the system is not air tight 1)Check the system and the pump connection. - Page 10 DAB PUMPS INC. 3226 BENCHMARK DRIVE LADSON, SC 29456 USA TEL: 1-843-797-5002 FAX: 1-843-797-3366...
