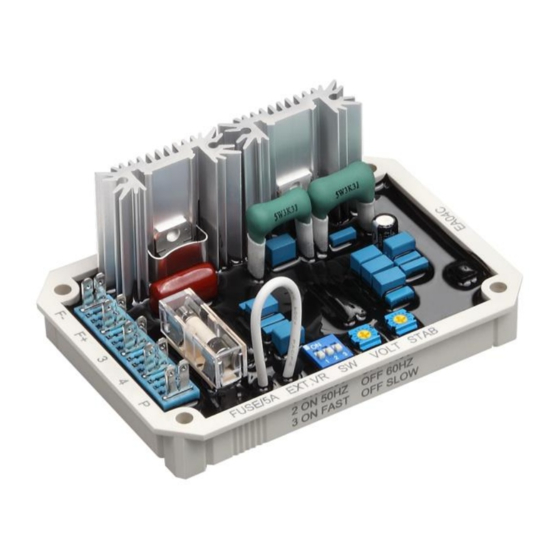

EA04C
Generator Automatic Voltage Regulator
Operation Manual
Self Excited Automatic Voltage Regulator
Compatible replacement for Basler VR63-4, VR63-4A and Marathon SE100A *
* Use for reference only and not genuine Basler product.
Use with Kutai EP200 Paralleling Module for parallel operation
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kutai electronics EA04C
Summary of Contents for Kutai electronics EA04C

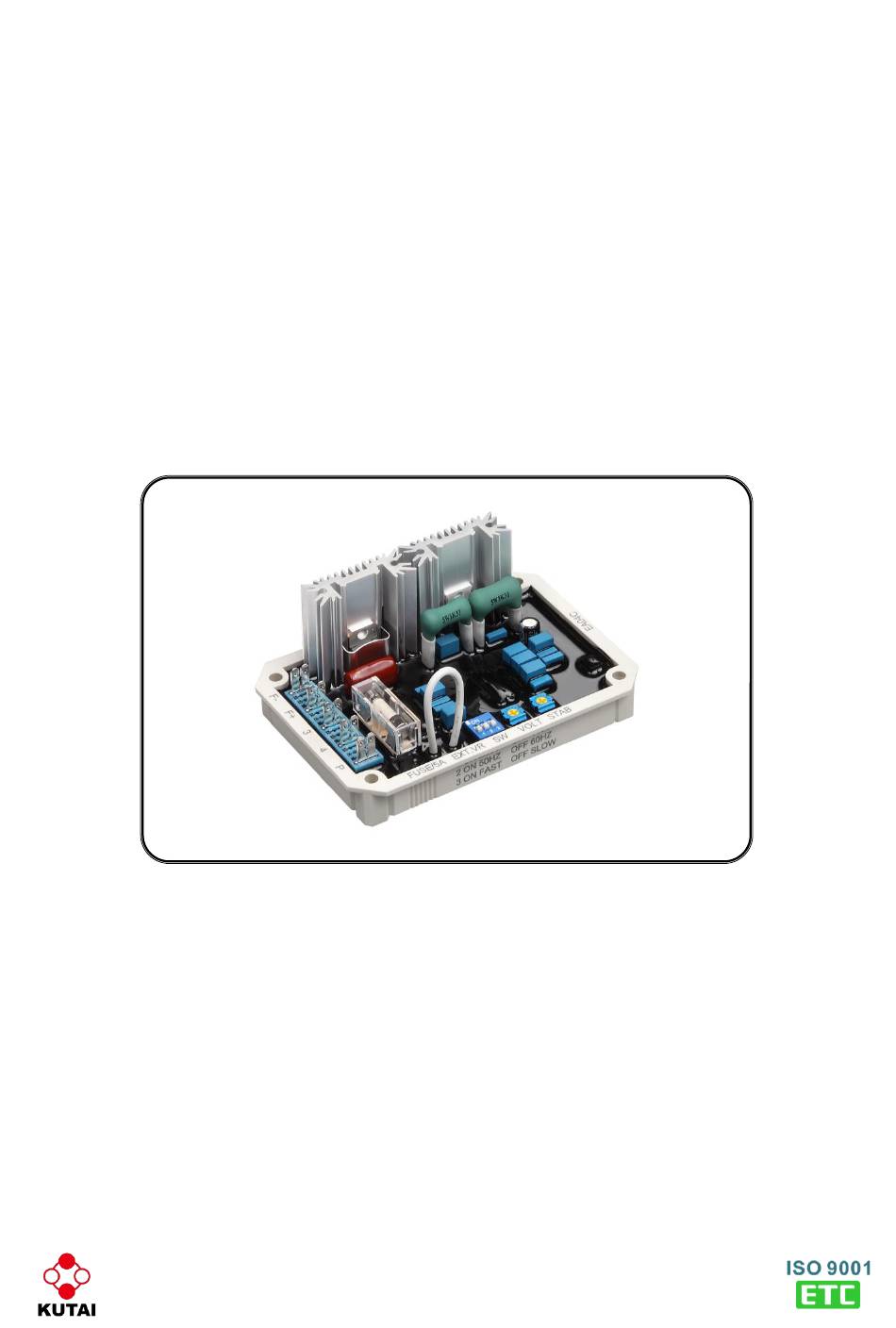

- Page 1 Compatible replacement for Basler VR63-4, VR63-4A and Marathon SE100A * * Use for reference only and not genuine Basler product. Use with Kutai EP200 Paralleling Module for parallel operation KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw...
- Page 2 2. Ensure all the wires of the regulator are correctly connected. ● DIP switch 1 OFF for sensing 300 ~ 550VAC. ● DIP switch 2 ON for 50Hz generator system. ● DIP switch 2 OFF for 60Hz generator system. 4. OVEREXCITATION SHUTDOWN ______________________________________________________________________________________ EA04C...
- Page 3 By doing so helps to improve and reduce the voltage change under heavy load. 50HZ 60HZ Stab Volt FUSE UNIT : mm FREQUENCY (HZ) Outline dimension Frequency compensation curves Figure 2 Figure 1 ______________________________________________________________________________________ EA04C...
- Page 4 Field Field 1K OHM 1K OHM 1 2 3 EA04C EA04C ※ SW-1 OFF for 380/480VAC system SW-1 ON for 220VAC system (3Ø 4W 380/480 VAC) Figure 4 Figure 3 8. SW DESCRIPTION (1) SW-1 Sensing voltage selector AC Power Input : ON for 220V OFF for 380 / 480V.
