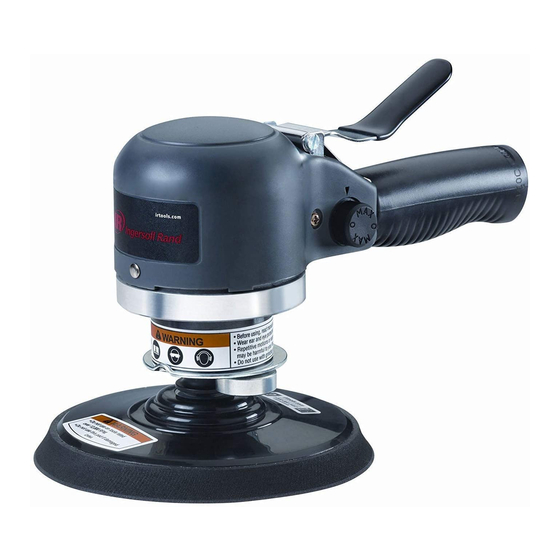

Model 311G Series Dual Action Sander is designed for feather edging, metal
preparation and finishing body filler in automotive applications.
IMPORTANT SAFETY INFORMATION ENCLOSED - SAVE THESE INSTRUCTIONS
READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS PRODUCT
IT IS YOUR RESPONSIBILITY TO MAKE THIS SAFETY INFORMATION
AVAILABLE TO OTHERS THAT WILL OPERATE THIS PRODUCT
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY
Always install, operate, inspect and maintain
this product in accordance with all applicable
standards and regulations (local, state, country,
federal, etc.).
Always use clean, dry air at 90 psig (6.2 bar/620
kPa) maximum air pressure at the inlet. Higher
pressure may result in hazardous situations
including excessive speed, rupture, or incorrect
output torque or force.
Be sure all hoses and fittings are the correct size
and are tightly secured. See Dwg. TPD905-2 for
a typical piping arrangement.
Ensure an accessible emergency shut off valve
has been installed in the air supply line, and
make others aware of its location.
Do not use damaged, frayed or deteriorated air
hoses and fittings.
Keep clear of whipping air hoses. Shut off the
compressed air before approaching a whipping
hose.
Always wear eye protection when operating or
performing maintenance on this tool.
Always wear hearing protection when operating
this tool.
Always use Personal Protective Equipment
appropriate to the tool used and material
worked. This may include dust mask or other
breathing apparatus, safety glasses, ear plugs,
gloves, apron, safety shoes, hard hat and other
equipment.
When wearing gloves always be sure that the
gloves will not prevent the throttle mechanism
from being released.
This tool is not designed for working in explo-
sive environments, including those caused by
fumes and dust, or near flammable materials.
This tool is not insulated against electric shock.
Prevent exposure and breathing of harmful dust
and particles created by power tool use.
Some dust created by power sanding, saw-
ing, grinding, drilling and other construc-
tion activities contains chemicals known to
cause cancer, birth defects or other repro-
ductive harm. Some examples of these
chemicals are:
Refer all communications to the nearest Ingersoll-Rand
Office or Distributor
© Ingersoll-Rand Company 2003
Printed in China
INSTRUCTIONS FOR
MODEL 311G SERIES
DUAL ACTION SANDER
NOTICE
WARNING
PLACING TOOL IN SERVICE
USING THE TOOL
04579637
Always turn off the air supply, bleed the air
pressure and disconnect the air supply hose
before installing, removing or adjusting any
accessory on this tool, or before performing any
maintenance on this tool or any accessory.
Do not lubricate tools with flammable or vola-
tile liquids such as kerosene, diesel or jet fuel.
Use only recommended lubricants.
Use only proper cleaning solvents to clean parts.
Use only cleaning solvents which meet current
safety and health standards. Use cleaning sol-
vents in a well ventilated area.
Keep work area clean, uncluttered, ventilated
and illuminated.
Do not remove any labels. Replace any damaged
label.
-
lead from lead based paints,
-
crystalline silica from bricks and
cement and other masonry products,
and
-
arsenic and chromium from chemi-
cally treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area,
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
Be aware of buried, hidden or other hazards in
your work environment. Do not contact or
damage cords, conduits, pipes or hoses that may
contain electrical wires, explosive gases or
harmful liquids.
Keep others a safe distance from your work
area, or ensure they use appropriate Personal
Protective Equipment.
Keep hands, loose clothing, long hair and jew-
elry away from working end of tool.
Form P7638
F
Edition 1
May, 2003
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 311G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand 311G Series

  • Page 1 INSTRUCTIONS FOR MODEL 311G SERIES DUAL ACTION SANDER NOTICE Model 311G Series Dual Action Sander is designed for feather edging, metal preparation and finishing body filler in automotive applications. WARNING IMPORTANT SAFETY INFORMATION ENCLOSED - SAVE THESE INSTRUCTIONS READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS PRODUCT...
  • Page 2 NOTICE The use of other than genuine Ingersoll-Rand replacement parts may result in safety hazards, decreased tool perfor- mance, and increased maintenance, and may invalidate all warranties. Repairs should be made only by authorized trained personnel. Consult your nearest Ingersoll-Rand Authorized Ser- vicenter.
  • Page 3: Installation

    Ingersoll-Rand No. 50 0.5 - 1.0 cc of Ingersoll-Rand No. 50 Oil into the air inlet. Always use an air line lubricator with these tools.
  • Page 4: Declaration Of Conformity

    (FIN) Vakuutamme ja kannamme yksin täyden vastuun siitä, että tuote: Kaksitoimiset ilmahiomakoneet Declaramos sob a nossa exclusiva responsabilidade que o produto: Lixadoras Pneumáticas de Acao Dupla Modelo (GR) δηλώνουµε µε αποχλειστιχή µας ευθύνη ότι αυτό το προϊόν: Τοιβείων ιπλής Ενέογειας Model: 311G Series Modele (D) Modell (I) Modello...
  • Page 5: Mise En Service De L'outil

    Adressez toutes vos communications au Bureau d'Ingersoll-Rand ou distributeur le plus proche. © Ingersoll-Rand Company 2003 Imprimé au Chine...
  • Page 6 NOTE L'utilisation de rechanges autres que les pièces d'origine Ingersoll-Rand peut causer des risques d'insécurité, réduire les performances de l'outil et augmenter l'entretien, et peut annuler toutes les garanties. Les réparations ne doivent être effectuées que par des réparateurs qualifiés autorisés. Consultez votre Centre de Ser- vice Ingersoll-Rand le plus proche.
  • Page 7: Spécifications

    Ingersoll-Rand No. 50 ible d’alimentation et verser environ 0,5 - 1 cm3 d’huile Ingersoll-Rand No. 50 dans le raccord Utiliser toujours un lubrificateur avec ces outils. Nous d’admission de l’outil. recommandons l'emploi du filtre-régulateur-lubrifica-...
  • Page 8 Evite respirar el polvo y partículas nocivos que para filtrar partículas microscópicas. se producen al utilizar la herramienta, así como exponerse a ellos: Toda comunicación se deberá dirigir a la oficina o al distribuidor más próximo. © Ingersoll-Rand Company 2003 Impreso en China...
  • Page 9 NOTA El uso de piezas de recambio que no sean las auténticas piezas Ingersoll-Rand puede poner en peligro la seguridad, reducir el rendimiento de la herramienta y aumentar los cuidados de mantenimiento necesarios, así como invalidar toda garantía.
  • Page 10 0,5 a 1,0 cc de Utilice siempre un lubricante de aire comprimido con Aceite Ingersoll-Rand Nº 50 en la admisión de aire. esta herramienta. Recomendamos la siguiente unidad de Filtro-Regulador-Lubricador (FRL):...
  • Page 11 MAINTENANCE INSTRUCTIONS SECTION D'ENTRETIEN INSTRUCCIONES DE MANTENIMIENTO (TPA2148) PART NUMBER FOR ORDERING REFERENCE POUR COMMANDE DE LA PIECE SIMBOLO DE LA PIEZA PARA PEDIDOS Item Part Description Part Number Item Part Description Part Number Motor Cover Assembly ..Lever Bracket .
  • Page 12 Nederland Tel: (31) 71 452200 Tel: (615) 672-0321 Fax: (31) 71 218671 Fax: (615) 672-0801 Ingersoll-Rand Company SA PO Box 3720 Ingersoll-Rand Sales Company Lim- Alrode 1451 ited South Africa Chorley New Road Tel: (27) 11 864 3930 Horwich, Bolton...
