ICOM IC-A3 AM PORTABLE RADIO BASIC OPERATION & CONTROLS
1. Turn power ON by turning the ON/OFF Volume knob clockwise.
2. Select a valid AM frequency form one of the memory locations or direct enter a valid AM frequency via the keypad.
3. Adjust the volume by turning the Squelch knob clockwise to open the squelch and set the volume to desired level.
4. Adjust the squelch by turning the Squelch knob counterclockwise until the squelch closes. This is the Threshold Squelch Setting.
Note: If the Squelch control is set too high, squelch may not open for weak signals.
5. Push the "ANL" side button to reduce pulse noise caused by engine ignitions or other outside interference.
The radio is ready to receive on that current frequency.
6. To Transmit, press and hold the Push-To-Talk ( PTT).
Note: The display will indicate the radio is transmitting by displaying a "TX" icon on the top portion of the LCD.
7. Pause 1 second and talk in a normal voice into the microphone.
Note: Try to shield the microphone from wind and other loud background noises for clearer transmissions.
8. Release the PTT to stop transmitting and receive incoming transmissions.
Antenna
LCD
Keypad
NIICD RADIOS ONLY 2007/J.Lopez
NATIONAL INTERAGENCY INCIDENT COMMUNICATIONS DIVISION
ICOM IC-A3 BASIC OPERATION AND CONTROLS
Speaker/Microphone
Clamshell

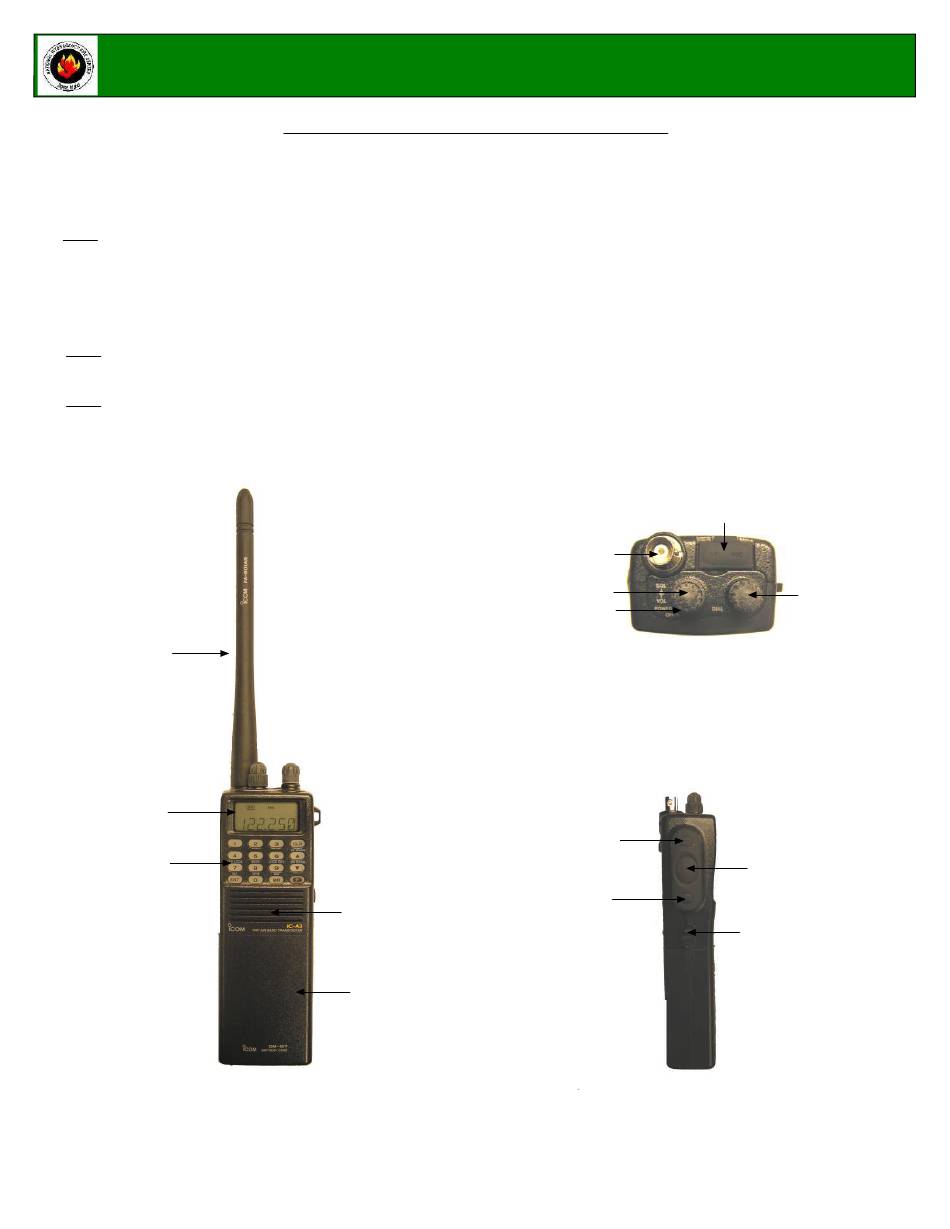

Figure 2: ICOM Front View
ICOM BASIC OPERATION AND CONTROLS
External Speaker/Mic
Antenna Port
ON/OFF Volum e
Squelch Control
Figure 1: ICOM Top View
ANL
Light
Figure 3: ICOM Side View
Jacks
Tuning Dial
Push-To-Talk (PTT)
Battery Release
Page 2 of 2
