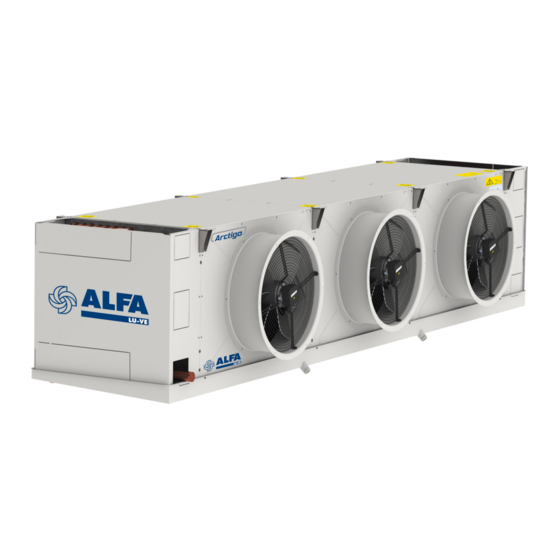

  • Page 1 Arctigo IS/IST Instruction manual • Product description • Product labels • Unpacking & lifting • Installation • Maintenance • Spare parts ORIGINAL INSTRUCTIONS AHE00041EN 2001 9460102298EN-06...

  • Page 3: Table Of Contents

    Fan replacement ........................18 Driptray .............................18 Side covers..........................18 Defrost heater elements replacement ..................18 Sockring mounting........................19 Shutupsock mounting........................20 Spare parts..........................22 AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 4: Important Information

    Air Cooler Product Manual AHE00042. Both manuals must be care- fully examined and instructions should be followed up at all times. Alfa LU-VE does not accept liability for any damage resulting from non-compliance to the instructions as given in the manuals and order-related documents.

  • Page 5: Product Description

    - Hotgas defrost - light, connected (HG1C) for Arctigo IS only - Hotgas defrost - heavy, connected (HG2C) for Arctigo IS only AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 6: Code Description

    Fan motor code Fan connection Refrigerant connection side (R=right, L=left - fan side view) Option code AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 7: Product Labels

    VERLADTER KÄLTEMITTELKREISLAUF MIT STICKSTOFF bill of delivery. ATTENTION! CIRCUIT FRIGORIFIQUE PRE-CHARGE AVEC AZOTE BHИМАНИЕ! СИСТЕМА ЗАПРАВЛНА АЗОТОМ 5.307 AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 8 WARNING factory READ INSTRUCTION MANUAL BEFORE INSTALLATIONS OPERATIONS AND MAINTENANCE TO AVOID INJURIES OR DAMAGE AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 9 Spare part item number 41103043SP Fan motor item number. 9/10. In/Out Refrigerant connections inlet and outlet. AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 10: Unpacking And Lifting

    AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 11 Alfa Laval. Alfa Laval will enforce its rights related to this document to the fullest extent of the law, including the seeking of criminal prosecution. Tolerance class M EN 22768-1 22768-2 AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 12: Installation

    Detailed drawings showing all required mounting and refrigerant connec- Dimensional drawings tion dimensions are available for download on alfa.luvegroup.com. Arctigo IS AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 13: Mounting Bracket

    Adequate spacing for driptray opening shall be left below the cooler. D > W +100 driptray driptray AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 14: Drain Line

    When in doubt always contact your local supplier or Alfa LU-VE Market Support for assistance. Electrical connections Arctigo IS AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 15: Hot Gas Defrost

    ISD pumped, top feed ISB pumped, top feed hot-gas OUT hot-gas OUT driptray OUT driptray IN driptray IN AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 16 ISB pumped, top feed, 4 connections ISD pumped, top feed, 4 connections driptray OUT driptray IN driptray IN AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 17 ISD pumped, bottom feed Top header Connection tube from HG serpentine Bottom header Connection tube from HG serpentine AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 18: Maintenance

    Mount new element in reverse order and restore electrical connections. AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 19: Sockring Mounting

    Fan guard fixed on the edge of the fan cowl Unscrew fixing bolts and remove the fan. AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 20: Shutupsock Mounting

    Slacken the shutupsock belt. Let the sock over- lap the sockring. Fasten the belt. AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 21 Fasten again the belt, tighter. Test tightness to verify correct mounting. AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.

  • Page 22: Spare Parts

    ⑩ Drain kit (adapter + click-on PVC connection) ⑪ Contact your local Alfa LU-VE representative for spare parts order and assistance. AHE00041EN 2001 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
