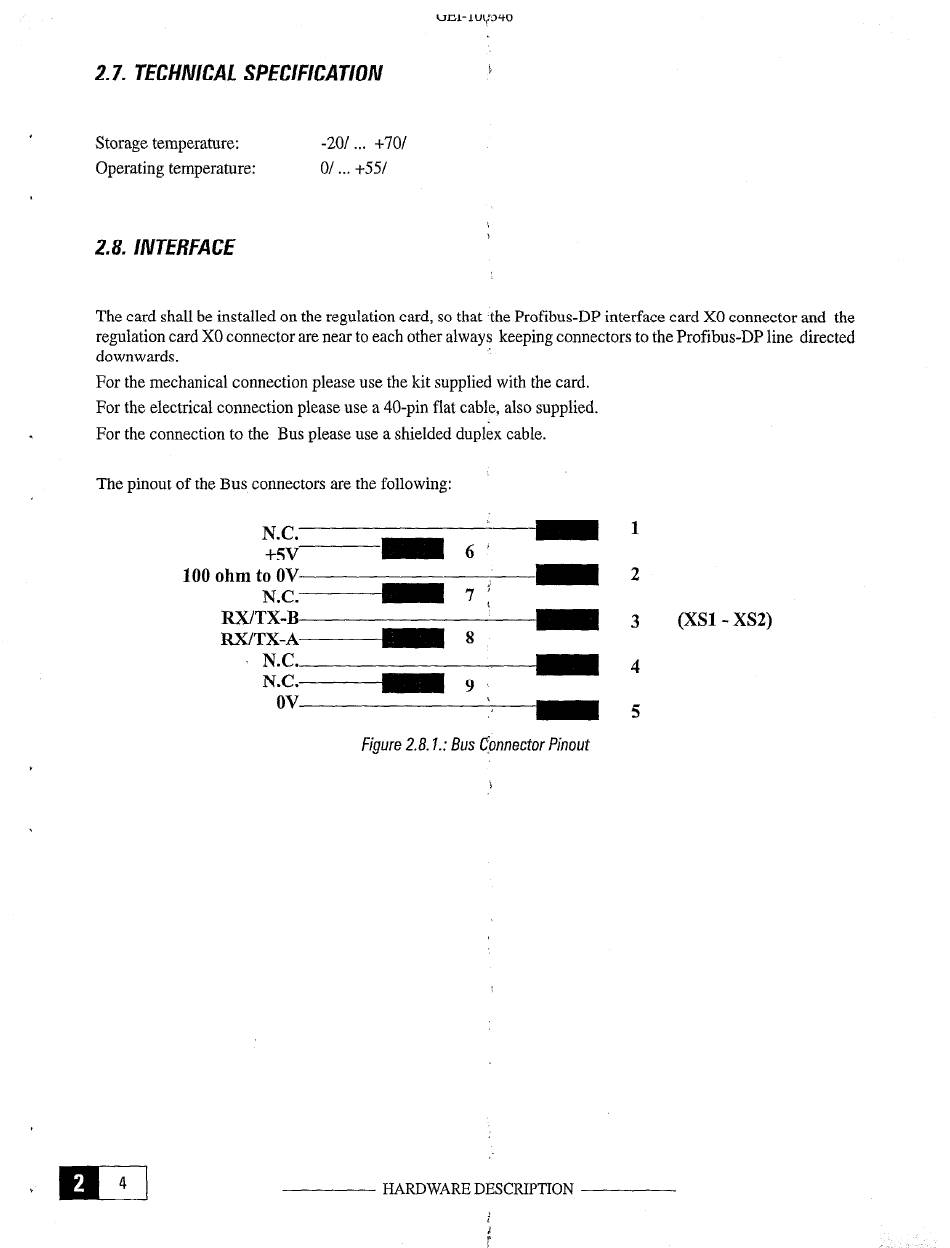

2.7. TECHNICAL SPECIFICATION
i
Storage temperature:
Operating temperature:
-2o/... i-701
Ol... t551
2.8. INTERFACE
The card shall be installed on the regulation card, so that the Profibus-DP interface card X0 connector and the
regulation card X0 connector are near to each other always keeping connectors to the Profibus-DP line directed
downwards,
For the mechanical connection please use the kit supplied with the card.
For the electrical connection please use a 40-pin flat cable, also supplied.
.
For the connection to the Bus please use a shielded duplex cable.
The pinout of the Bus connectors are the following:
N.C.
<
+5v
100 ohm to OV
N.C.-
'7 ;
-
N.C.
N.C.S
ov-
Figure 2.8.1.: Bus CY.onnector Pinout
1
2
3
(XSl - XS2)
4
5
HARDWARE
DESCRIPTION
