Bircher Reglomat ENT-R Assembly Instructions

EN ISO

Safety edges

9001
Quality
international
level
Translation of the original instructions

Application

Safety edges (sensors) in combination with a switching unit (signal processing) are components of a safety system (protection system for person detection).
The system, or more specifically the safety edges, are used to safeguard shearing and crushing points on power-operated doors, gates and similar automatic
fixtures. The safety edges can be installed in any horizontal or vertical position, either singly or in combination.
1

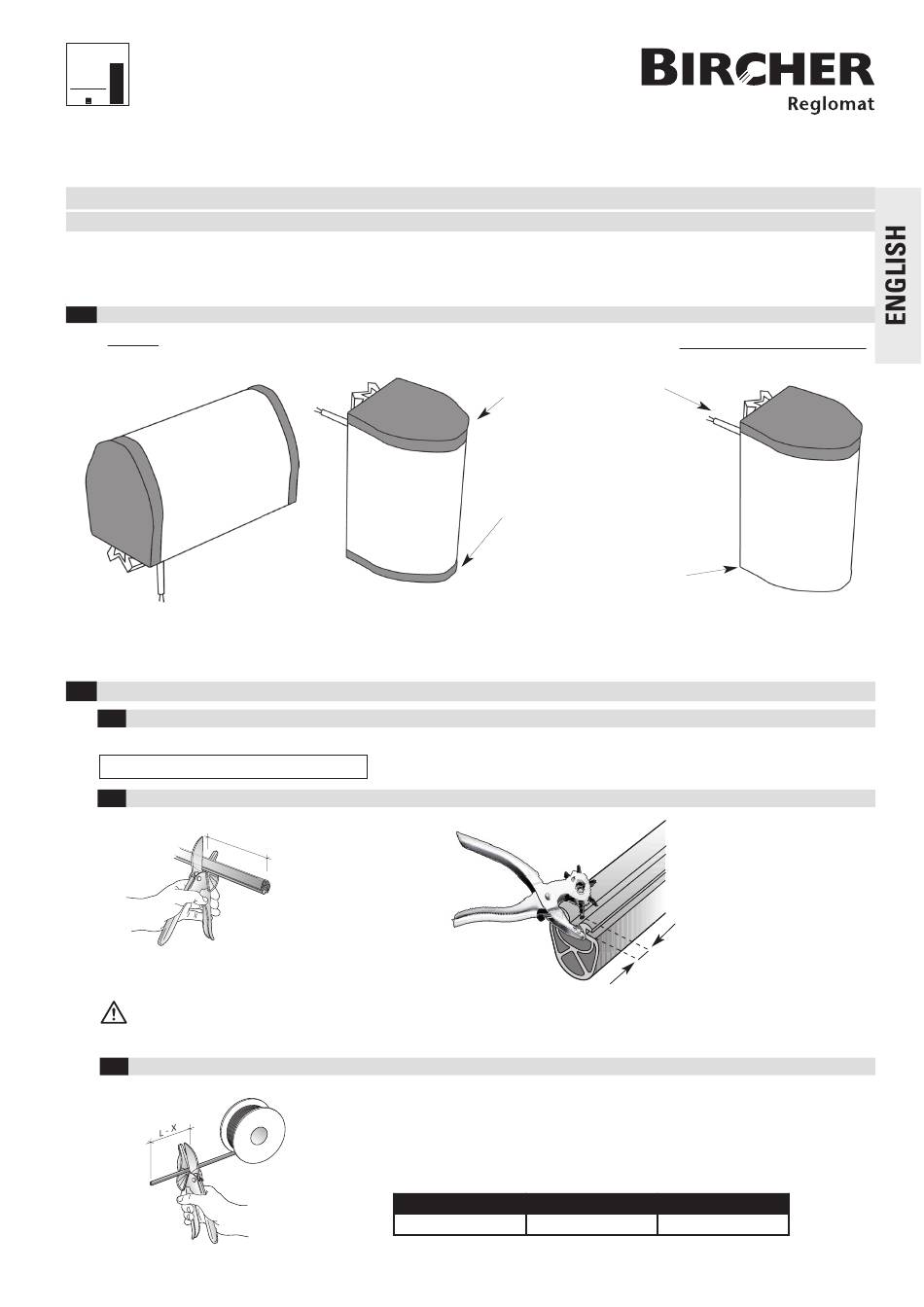

Types of mounting

Standard
End caps on both ends

Preparing the safety edge and assembling the contact strip

2
2.1

Measuring the safety edge

Trim aluminium profile to match length of protected area and plan type and manner of cable feed-through, drill holes (counterbores) and profile holders.
Aluminium profile length = Rubber profile length (L)
2.2

Trimming the rubber profile

L
The switching chamber for the contact strip must not be damaged unnecessarily as incoming water may impair the safety function
of the strip.
2.3

Trimming the contact strip

Using the rubber
shears, trim the rubber
profile to the desired
length L.
Trim the contact strip to length (L – X). Be sure to cut at right angles!
The contact strip is shorter than the rubber profile
by the length of the end pieces used:
X =
Self-assembly instructions for safety edges
(ENT-R, ENT-20, ENT-7, ENT-S)
Option for vertical applications
(dependent on enviromental conditions)
Top, rubber profile closed:
- 1 end cap
- Profile chamber sealed
Bottom, rubber profile closed:
- 1 end cap
- Profile chamber sealed
Bottom, rubber profile open:
(= no end cap and switching
chamber not sealed)
5 mm
Cable and end piece Cable (both ends)
55 mm
For the cable feed-through,
make a small hole (1/10 mm
smaller than the cable diame-
ter) hole punch pliers about
5mm from the edge.
60 mm
1
