Bircher Reglomat MicroScan User Manual

MicroScan
presence
Active-Infrared Presence Sensor
1. Safety Instructions
* The device must only be operated at a protective low voltage with safe electrical insulation. Product repairs must be performed solely by the manufacturer.
* Shut off all power going to the sensor before attempting any wiring procedures.
* Maintain a clean & safe environment when working in public areas.
* Constantly be aware of pedestrian traffic around the door area.
* Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.
* Always check placement of all wiring and components before powering up to ensure that moving door parts will not catch any wires and cause damage to equipment.
* Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.
D O N O T L E A V E A N Y P R O B L E M S U N R E S O L V E D - N E V E R S A C R I F I C E S A F E T Y F O R A N Y R E A S O N

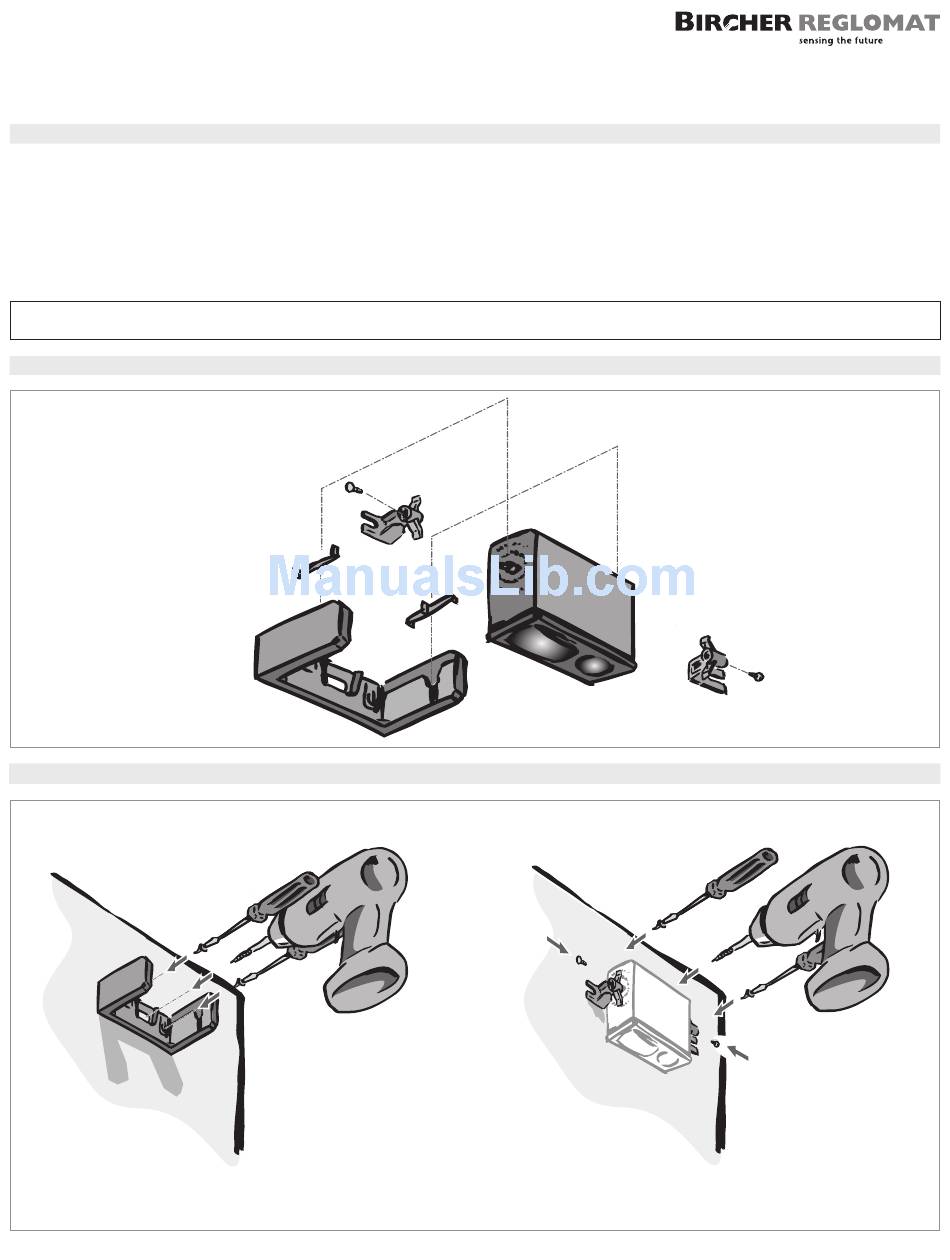

2. Disassembling the sensor
3. Mounting the sensor
Mounting with swivel bracket
1 Screw swivel bracket on surface
2 Use a drill to make an opening for the cable
User s guide
1
2
1
,
Mounting with fixed brackets
1
1 Screw mounting brackets onto device
2 Mount device
3 Use a drill to make an opening for the cable
Questions? Call us at 800 - 252-1272, 8am - 5pm central standard time.
