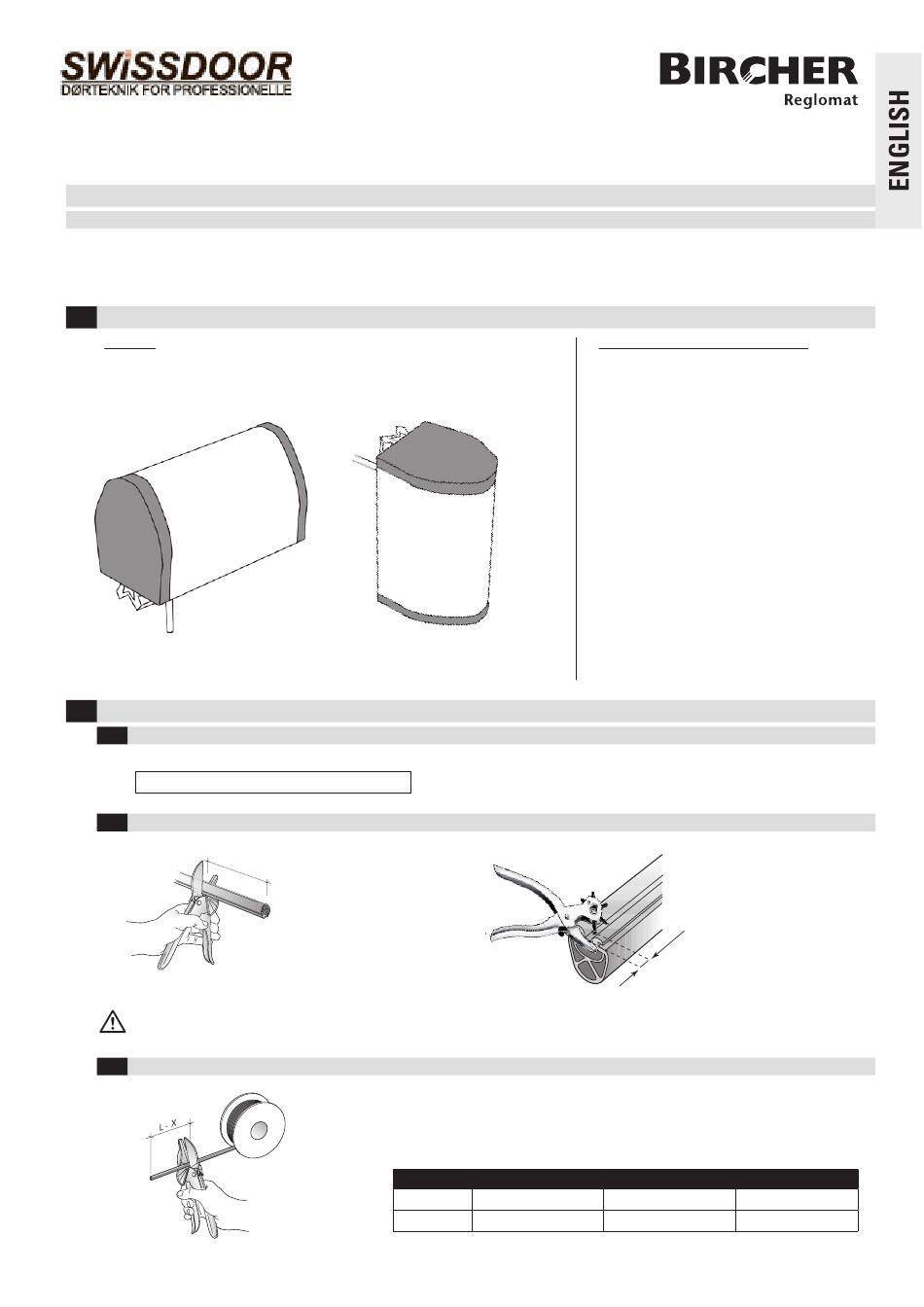

Bircher Reglomat Swissdoor ENT-R Assembly Instructions

Safety edges

Assembly instructions

Application

Safety edges (sensors) in combination with a switching unit (signal processing) are components of a safety system (protection system for person detection).
The system, or more specifically the safety edges, are used to safeguard shearing and crushing points on power-operated doors, gates and similar automatic
fixtures. The safety edges can be installed in any horizontal or vertical position, either single or in combination.
1

Types of mounting

Standard
End caps on both ends
2

Preparing the safety edge and assembling the contact strip

2.1 Measuring the safety edge
Trim aluminium profile to the correct length and plan type of cable entry/exit, drill holes (countersunk) .
Aluminium profile length = Rubber profile length (L)
2.2 Trimming the rubber profile
L
The switching chamber for the contact strip must not be damaged unnecessarily as incoming water may impair the safety function
of the strip.
2.3 Trimming the contact strip
Top, rubber profile closed:
- 1 end cap
- Profile chamber sealed
Bottom, rubber profile closed:
- 1 end cap
- Profile chamber sealed
Using the rubber
shears, trim the rubber
profile to the desired
length L.
Trim the contact strip to length (L – X). Be sure to cut at 90° angles!
The contact strip is shorter than the rubber profile
by the length of the end pieces used:
Cable and end piece
X =
X =
ENT-R, ENT-20, ENT-7, ENT-S
As an option for vertical applications
Top, rubber profile closed:
- 1 end cap
- Profile chamber sealed
Bottom, rubber profile open:
- no end cap
- switching chamber not sealed
5 – 8 mm
Cable (both ends)
55 mm 60 mm
50 mm 55 mm
Safety edges
For the cable feed-through,
make a small hole (3,5 mm) with
hole punch pliers about
5 – 8 mm from the edge.
Types
standard
vertical
267081C
04/15
