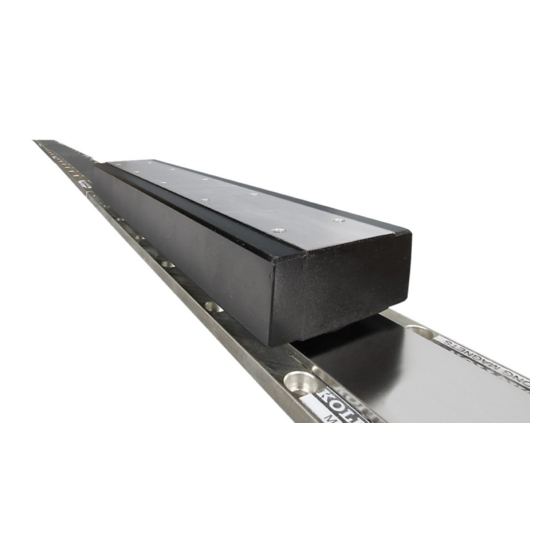

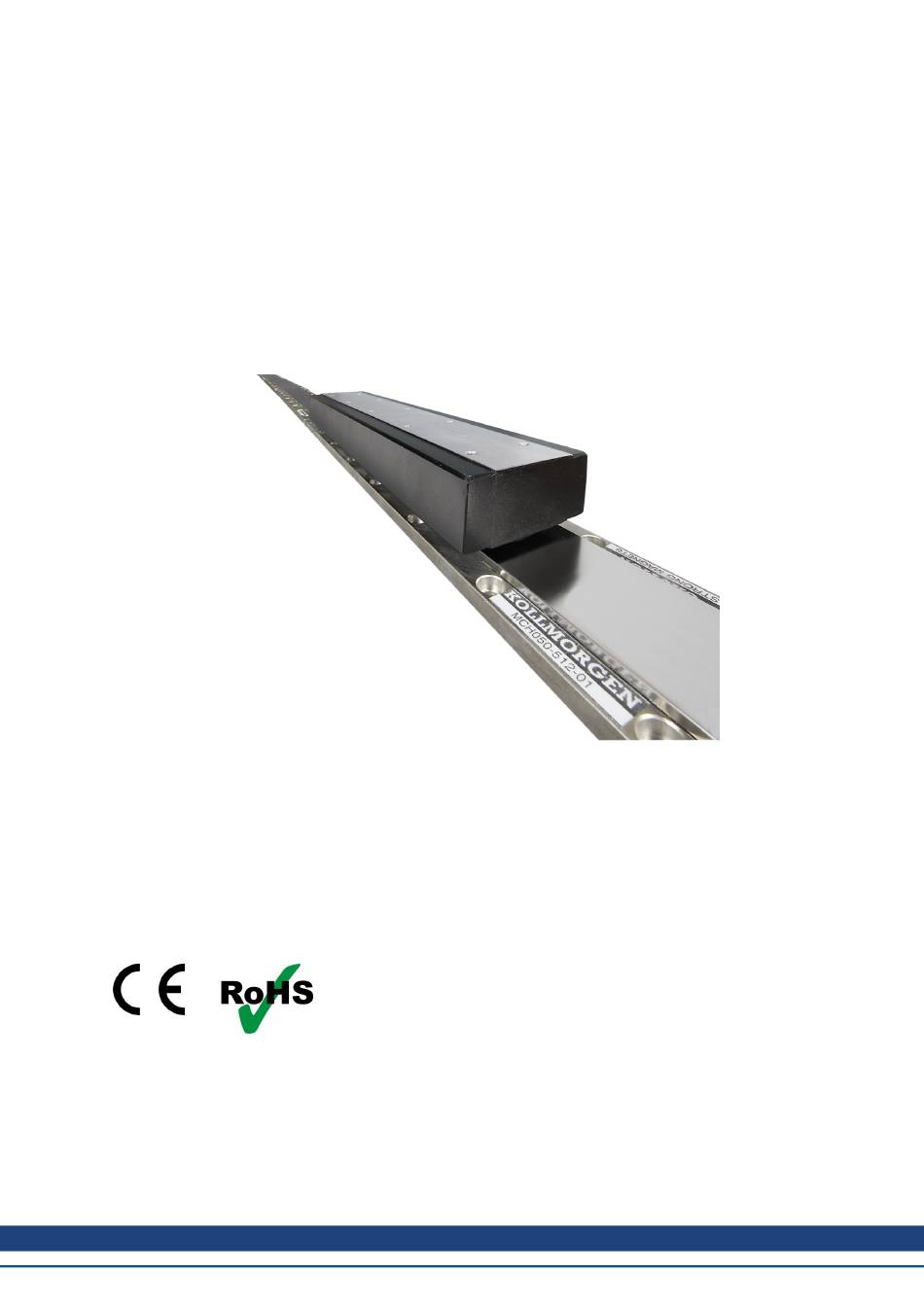

ICH Linear Motors
English
Installation Guide
Edition: C, April 2017
Part Number ICH-Installation-Guide-EN
Original language English
European Version (CE region)
Keep all manuals as a product component during the life
span of the product. Pass all manuals to future users and
owners of the product.
REACH
ICH Installation Guide |
Kollmorgen | April 2017
1
Advertisement
Table of Contents
Related Manuals for Kollmorgen ICH Series
Summary of Contents for Kollmorgen ICH Series
- Page 1 Part Number ICH-Installation-Guide-EN Original language English European Version (CE region) REACH Keep all manuals as a product component during the life span of the product. Pass all manuals to future users and owners of the product. Kollmorgen | April 2017...
- Page 2 Technical changes which improve the performance of the device may be made without prior notice! Printed in Czech Republic. This document is the intellectual property of Kollmorgen. All rights reserved. No part of this work may be repro- duced in any form (by photocopying, microfilm or any other method) or stored, processed, copied or distributed by electronic means without the written permission of Kollmorgen.
-
Page 3: Table Of Contents
1.1 Introduction 1.2 About this manual 1.3 Symbols Used 2 Safety 2.1 Safety notes 2.2 You should pay attention to this 2.3 Use as directed 2.4 Prohibited use 3 Mounting procedure 4 Record of document revisions Kollmorgen | April 2017... -
Page 4: General
1 General 1.1 Introduction Kollmorgen Linear Motor (ICH) is a part of a specific motion system. ICH can be combined with several devices. ICH motors fulfil CE requirements, but the user has to ensure that the machine as whole fulfils all CE requirements. - Page 5 Warning of danger from electricity and its effects. Warning of hot surfaces. Warning of suspended loads. Warning of magnetic forces. Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Mandatory safety sign - Wear gloves. Kollmorgen | April 2017...
-
Page 6: Safety
Read the documentation! Read carefully the applicable documentation before assembly, setup and using (available on Kollmorgen website or as a printed version on request). Incorrect handling of ICH can cause injury and damage to the persons and equipment. The operator must ensure the following of the safety instructions. The operator must ensure that all staff responsible for working with ICH have read and understood the product manual. - Page 7 (<50cm) of the linear motor. Place easily visible warning signs (e.g. permanent self-adhesive labels) on the machine: Caution: The linear motors on this machine are fitted with strong permanent magnets. "STRONG MAGNETIC FIELDS + HIGH MAGNETIC ATTRACTIVE FORCES!" Kollmorgen | April 2017...
-
Page 8: Use As Directed
Commissioning the motor is prohibited if the machine in which it was installed - does not meet the requirements of the EC Machinery Directive, - does not comply with the EMC Directive, - does not comply with the Low Voltage Directive. Kollmorgen | April 2017... -
Page 9: Mounting Procedure
Due to the high magnetic attractive forces of the magnet way (MCH), exercise extreme cau- tion during handling and installation to avoid damage to equipment or personnel injury. Kollmorgen will assume no responsibility if these mounting recommendations are not fol- lowed. - Page 10 4. Place the second magnetic plate from the top and parallel to the base. Mount and fix with the screws the sec- ond magnetic plate segment on the base. Pole marks to be located on same side to ensure correct north/south pole orientation. Kollmorgen | April 2017...
- Page 11 5. Mount and fix the motor assembly (forcer and customer’s interface) on the linear guides. WARNING Pay attention to leave a minimum gap of 10 cm between the magnetic way and the motor assembly in order to avoid unexpected movement of the motor assembly. Kollmorgen | April 2017...
- Page 12 ICH Installation Guide | 3 Mounting procedure Kollmorgen | April 2017...
- Page 13 7. Mount and fix the remaining magnetic plate segments with the fixing screws. 8. Test whether the motor moves without contact with the magnetic ways over the whole magnetic way. It is nor- mal to observe variations in the forces depending on the position (detent force). Kollmorgen | April 2017...
- Page 14 ICH Type X (mm) ICH11 34.9 ICH22 48.9 ICH33 60.9 ICH44 36.4 WARNING Flatness and height of magnet ways and coil units is defined at fastened to the flat base (steel plate with 30 mm thickness). Kollmorgen | April 2017...
-
Page 15: Record Of Document Revisions
ICH Installation Guide | 4 Record of document revisions 4 Record of document revisions Revision Remarks A, 10/2015 First version B, 07/2016 Mounting procedure added C, 04/2017 Tightening torque and flatness added Kollmorgen | April 2017... - Page 16 About KOLLMORGEN Kollmorgen is a leading provider of motion systems and components for machine builders. Through world- class knowledge in motion, industry-leading quality and deep expertise in linking and integrating standard and custom products, Kollmorgen delivers breakthrough solutions that are unmatched in performance, reliability and ease-of-use, giving machine builders an irrefutable marketplace advantage. ...
