INTRODUCTION

This M2 - 1.8" Micro SATA adapter is designed to enable M2 SSD, with
length of 30, 42 or 60 mm, to be used as a direct replacement of the
1.8" micro SATA hard drive. As a result, any equipment, such as
Notebook computer, iPOD that uses a 1.8" SATA hard drive can be
easily converted to use the low power and shock resistant M2 SSD, just
like a SATA solid state drive (SSD). Once installed, the M2 appears as
an ordinary SATA hard drive to any OS and can be configured as a boot
device.
This M2 adapter, coupled with the micro SATA - 2.5" HDD adapter, can
also be used like a removable flash media in the Addonics Pocket
UDD25 or Internal UDD25
access to the M2 SSD via USB 3.0 / 2.0 or eSATA connection to any
computer.

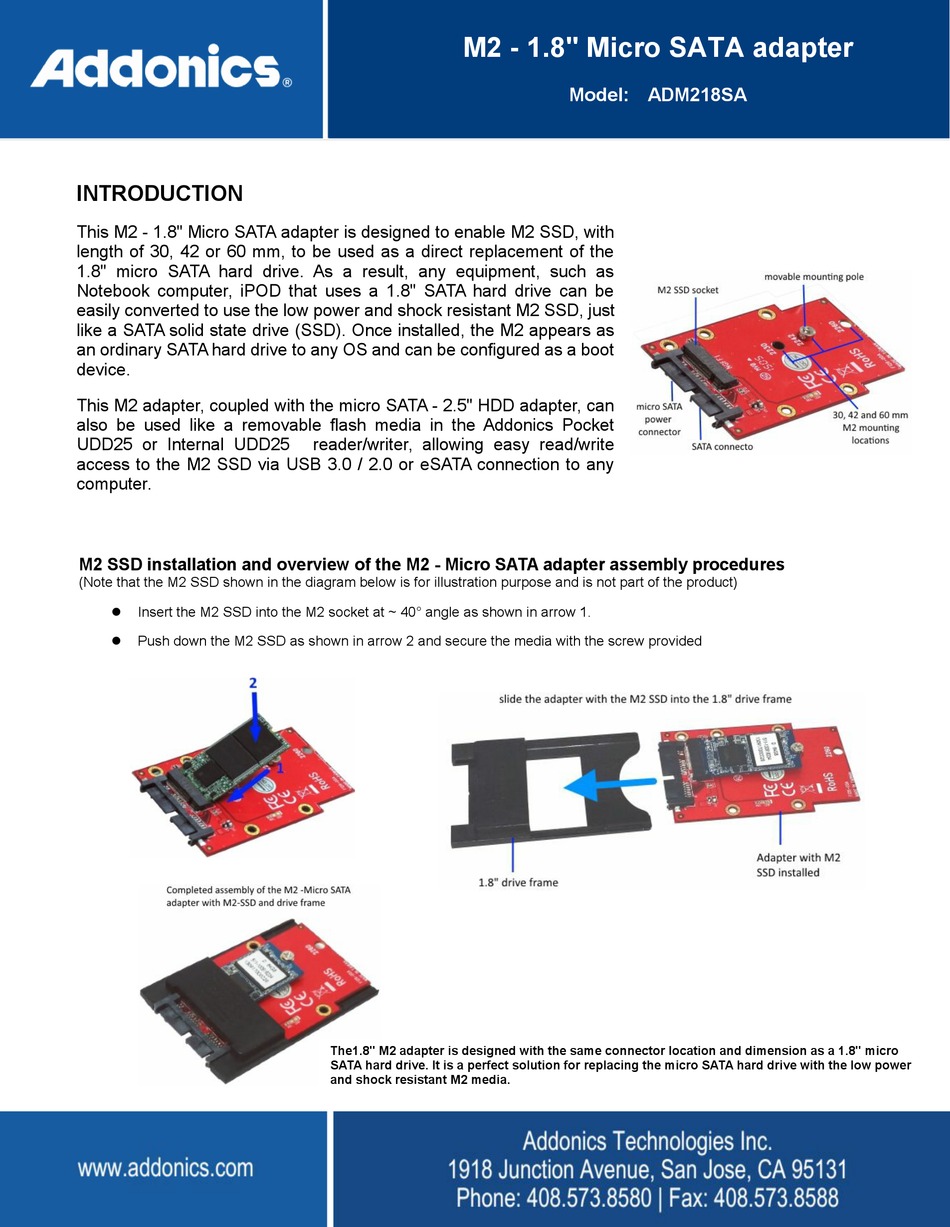

M2 SSD installation and overview of the M2 - Micro SATA adapter assembly procedures
(Note that the M2 SSD shown in the diagram below is for illustration purpose and is not part of the product)
 Insert the M2 SSD into the M2 socket at ~ 40° angle as shown in arrow 1.
 Push down the M2 SSD as shown in arrow 2 and secure the media with the screw provided
M2 - 1.8" Micro SATA adapter
reader/writer, allowing easy read/write
The1.8" M2 adapter is designed with the same connector location and dimension as a 1.8" micro
SATA hard drive. It is a perfect solution for replacing the micro SATA hard drive with the low power
and shock resistant M2 media.
Model: ADM218SA
