RAPID RESPONSE Series LFII Residential Sprinklers
4.2 K-factor Flush Horizontal Sidewall
Wet Pipe Systems
General
Description

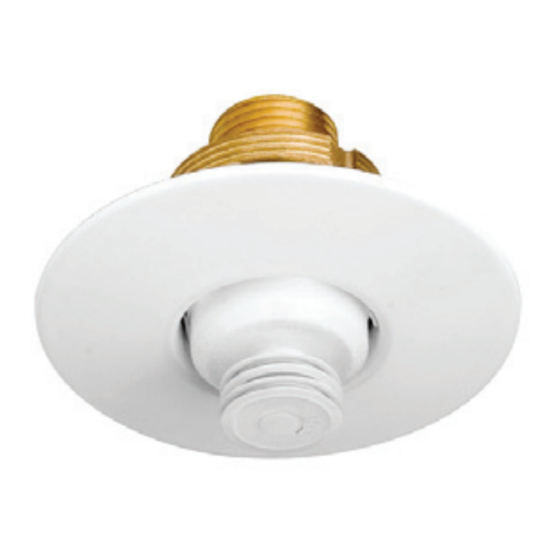

The TYCO RAPID RESPONSE Series
LFII Residential Flush Horizontal Side-
wall Sprinklers (TY2384) are decorative,
fast response, fusible solder sprinklers
designed for use in residential occu-
pancies such as homes, apartments,
dormitories, and hotels. When aesthet-
ics is the major consideration, the Se-
ries LFII Sprinklers (TY2384) should be
the first choice.
The Series LFII Residential Sprinklers
(TY2384) are intended for use in the fol-
lowing scenarios:
• wet-pipe residential sprinkler systems
for one- and two family dwellings and
manufactured homes per NFPA 13D;
• wet-pipe residential sprinkler sys-
tems for residential occupancies up
to and including four stories in height
per NFPA 13R
• wet-pipe sprinkler systems for the
residential portions of any occupan-
cy per NFPA 13
The flush design of the Series LFII Res-
idential Sprinklers (TY2384) features a
separable escutcheon providing 3/16
inch (4,8 mm) horizontal adjustment.
This adjustment reduces the accuracy
to which the pipe nipples to the sprin-
klers must be cut to help assure a per-
fect fit installation.
The Series LFII Residential Sprinklers
(TY2384) have been designed with heat
sensitivity and water distribution char-
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 6
acteristics proven to help in the control
of residential fires and to improve the
chance for occupants to escape or be
evacuated.
NOTICE
The Series LFII Residential Flush Hori-
zontal Sidewall Sprinklers (TY2384)
described herein must be installed
and maintained in compliance with
this document and with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any authorities having ju-
risdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted with
any questions.
Sprinkler
Identification
Number (SIN)
TY2384
Technical
Data
Approvals
UL and C-UL Listed
For details on approvals, refer to the
Design Criteria section.
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
K= 4.2 GPM/psi (60,5 LPM/bar
1/2
Temperature Rating
162°F (72°C)
Horizontal Adjustment
3/16 inch (4,8 mm)
APRIL 2013
Worldwide
Contacts
Finishes
Signal White
Jet Black
Chrome
Physical Characteristics
Body . . . . . . . . . . . . . . . .Copper Alloy
Deflector. . . . . . . . . . . . . . . . . Copper
Valve Cap . . . . . . . . . . . .Copper Alloy
Orifice Seal. . . . . . . . . . . . . . . . . PTFE
Heat Collectors . . . . . . . . . . . Copper
Operation
The sprinkler assembly contains a
small fusible solder element. When
exposed to sufficient heat from a fire,
the solder melts and enables the inter-
nal components of the sprinkler to fall
away. At this point the sprinkler acti-
vates with the deflector dropping into
its operated position (Figure 1C), per-
mitting water to flow.
)
1/2
TFP425
