RAPID RESPONSE Series LFII Residential Sprinklers
4.2 K-factor Flush Pendent
Wet Pipe and Dry Pipe Systems
General
Description

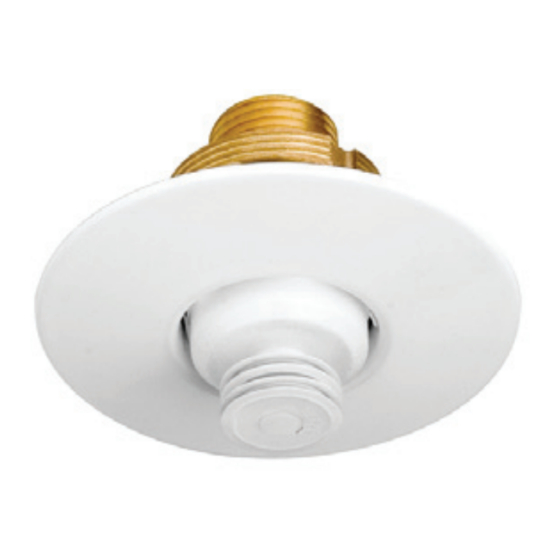

The TYCO RAPID RESPONSE Series
LFII Residential Flush
Sprinklers (TY2284) are decorative,
fast response, fusible solder sprinklers
designed for use in residential occu-
pancies such as homes, apart-
ments, dormitories, and hotels. When
aesthetics is the major consideration,
the Series LFII Residential Sprinklers
(TY2284) should be the first choice.
The Series LFII Residential Sprinklers
are intended for use in the following
scenarios:
• wet and dry pipe residential sprinkler
systems for one- and two-family
dwellings and mobile homes per
NFPA 13D
• wet and dry pipe residential sprinkler
systems for residential occupancies
up to and including four stories in
height per NFPA 13R
• wet and dry pipe sprinkler systems
for the residential portions of any
occupancy per NFPA 13
The flush design of the Series LFII
Residential Sprinklers
separable escutcheon providing 3/8
inch (9,5 mm) vertical adjustment. This
adjustment reduces the accuracy to
which the pipe drops to the sprinklers
must be cut.
The Series LFII Residential Sprinklers
have been designed
sensitivity and water
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling
installation of sprinkler systems and
components. Improper handling and
installation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 6
characteristics proven to help in the
control of residential fires and to
improve the chance for occupants to
escape or be evacuated.
Dry Pipe System Application
The Series LFII Residential Flush
Pendent
Pendent Sprinklers offers a laboratory
approved option for designing dry pipe
residential sprinkler systems, whereas,
most residential sprinklers are labora-
tory approved for wet systems only.
Through extensive testing, it has been
determined that the number of design
sprinklers (hydraulic design area)
for the Series LFII Residential Flush
Pendent Sprinklers (TY2284) need
not be increased over the number of
design sprinklers (hydraulic design
area) as specified for wet pipe sprinkler
systems, as is customary for density/
area sprinkler systems designed per
NFPA 13.
Consequently,
Residential Sprinklers (TY2284) offer
the features of non-water filled pipe in
addition to not having to increase the
number of design sprinklers (hydraulic
design area) for systems designed
to NFPA 13, 13D, or 13R. Non-water
filled pipe will permit options for areas
sensitive to freezing.
features a
NOTICE
The Series LFII Residential Flush
Pendent Sprinklers (TY2284) described
herein must be installed and maintained
in compliance with this document and
with heat
the applicable standards of the National
distribution
Fire Protection Association, in addition
to the standards of any authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system and
and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted with
any questions.
the Series LFII
APRIL 2013
Worldwide
Worldwide
www.tyco-fire.com
www.tyco-fire.com
Contacts
Contacts
Sprinkler
Identification
Number (SIN)
TY2284
TFP420
