Risco RWX73M Manual

2-Way Wireless
Magnetic/Door Contact
(Model RWX73M)
© RISCO Group 11/2012
GENERAL DESCRIPTION
English

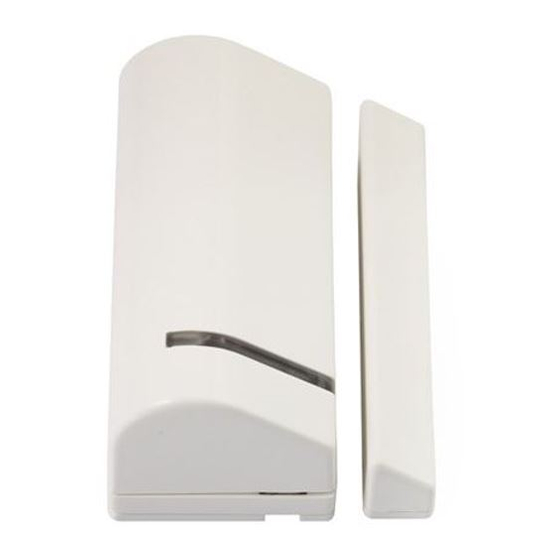

The RWX73M is a 2-way supervised transmitter that
combines Magnetic/Door contact against opening doors
and windows with additional universal input.
The RWX73M operates with RISCO Group 2-Way
wireless systems
Operating Mode
The RWX73M reports events from IN1 and from the magnetic reed switch. In normal operation mode alarm is sent when the
input or magnet are triggered. When restored, it transmits a restoral message
INSTALLATION
Step 1: Transmitter Receiver Communication Set Up
The RWX73M must identify itself to the system's receiver
by writing its coded message into the receiver's address
memory.
This registration is performed either by entering the
RWX73M's 11-digit serial code number or by performing
the following RF allocation steps:
1. Remove the front cover (Fig 1)
2. Set the main unit to Learn Mode.
3. Remove the battery from the insulation material and
reinsert it into the transmitter, paying attention to the
polarity (Fig. 4).
4. Send a write message by pressing both tamper
switches (bac and cover) for at least 3 seconds
until panel recognition is displayed.
Step 2: Input Wiring
Use the following diagrams for appropriate input
termination wiring. For DEOL termination connect
two 10K Ohm resistors (supplied) illustrated as follows:
NORMALLY CLOSED
NORMALLY OPEN INPUT
INPUT CONFIGURATION CONFIGURATION
ALARM
ALARM
DETECTOR
DETECTOR
DOU LE END OF LINE INPUT CONFIGURATION
10k 10k
ALARM TAMPER
DETECTOR
Step 3: Select The Mounting Location
1. Select a location best suited for communication quality
and near the intended wired detector. RISCO recom-
mends you place the unit at the highest possible position.
2. Temporarily attach the unit to this point using two sided
adhesive tape
3. Generate an Alarm signal (by momentarily opening or
closing the input terminals) and verify that the receiver
has received the signal. If the alarm signal is not
detected, reposition the transmitter and try again.
Fig. 1
Fig. 5
5IN1943
MAIN FEATURES
Communication: i-directional
Range: up to 1,000 ft. (300m) range (Outdoor)
Supervision: Up to 255 minutes
Selective input termination : NO, NC, DEOL
Selective input response: 10 / 500ms
Tamper protection: ac
Step 4: Final Mounting (Figures 1,2 and 3)
1. Separate the bac part of the transmitter and mount all
the parts in place (Fig. 2 and 3)
2. Mount the magnet (Fig. 5).
Notes:
1. The mar on the magnet's plastic case should be
aligned with the mar on the transmitter's case (Fig. ).
2. For installations on wood or alloy, the maximum
distance for normal operation is 10mm, while for metal
ferromagnetic materials (iron) it is 5mm.
Step 5: Parameters
The following parameters can be de ned for RWX73M:
Parameter Option
Supervision Yes/No
LED Enable Yes/No
Magnet Enable/Disable
Alarm Hold On/Off
Termination IN1: NO/NC/DEOL
Response 10ms/500ms
LED INDICATION
Upon successful learning: short ash sequence
Normal operation: brief light upon transmission
Low battery: short ash sequence during transmission
TECHNICAL SPECIFICATIONS
ELECTRICAL
attery Type:
Current Consumption:
Frequency:
Dead Time (HOLD ON):
Supervision Transmission: 0-255 minutes
Modulation Type:
attery Life:
Contact Si e: 32 x 35 x 72 mm (1.3 x 1.4 x 2. in.)
Magnet Si e: 1 X 11 X 72 mm (. X .44 X 2. in.)
ENVIRONMENTAL
RF immunity:
Operating temperature:
Storage temperature:
Speci cations are sub ect to change without prior notice.
Should any questions arise please contact your supplier.
Fig. 2
3
Fig. 6
-
Cover
CR123 3 Lithium attery
11 A standby
RWX73M 00A . 5 MH
RWX73M43300A 433.92 MH
2.5 minutes
ASK
3 years (Upon usage)
According to EN50130-4
0°C to 40°C (32°F to 104°F)
-20°C to 0°C (-4°F to 140°F)
Fig. 3
1
2
+
ATTERY
LED
T.
SW1
RTTE Compliance Statement
Hereby, RISCO Group declares that this equipment is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. For the CE
Declaration of Conformity please refer to our website:
www.riscogroup.com
EN 50131-2- Grade 2 Environmental Class II
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and af liates ("Seller") warrants its
products to be free from defects in materials and wor manship under
normal use for 24 months from the date of production. ecause Seller
does not install or connect the product and because the product may
be used in con unction with products not manufactured by the Seller,
Seller cannot guarantee the performance of the security system
which uses this product. Seller's obligation and liability under this
warranty is expressly limited to repairing and replacing, at Seller's
option, within a reasonable time after the date of delivery, any product
not meeting the speci cations. Seller ma es no other warranty,
expressed or implied, and ma es no warranty of merchantability or of
tness for any particular purpose. In no case shall seller be liable for
any consequential or incidental damages for breach of this or any
other warranty, expressed or implied, or upon any other basis of
liability whatsoever.
Seller's obligation under this warranty shall not include any transporta-
tion charges or costs of installation or any liability for direct, indirect,
or consequential damages or delay. Seller does not represent that its
product may not be compromised or circumvented; that the product
will prevent any personal in ury or property loss by burglary, robbery,
re or otherwise; or that the product will in all cases provide adequate
warning or protection.
Seller, in no event shall be liable for any direct or indirect damages or
any other losses occurred due to any type of tampering, whether
intentional or unintentional such as mas ing, painting or spraying on
the lenses, mirrors or any other part of the detector.
uyer understands that a properly installed and maintained alarm
may only reduce the ris of burglary, robbery or re without warning,
but is not insurance or a guaranty that such event will not occur or that
there will be no personal in ury or property loss as a result thereof.
Consequently seller shall have no liability for any personal in ury,
property damage or loss based on a claim that the product fails to
give warning. However, if seller is held liable, whether directly or
indirectly, for any loss or damage arising under this limited warranty
or otherwise, regardless of cause or origin, seller's maximum liability
shall not exceed the purchase price of the product, which shall be
complete and exclusive remedy against seller.
No employee or representative of Seller is authori ed to change this
warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a wee .
CAUTION: ris of explosion if battery is replaced by an incorrect type.
Dispose of used batteriess according to local regulations.
