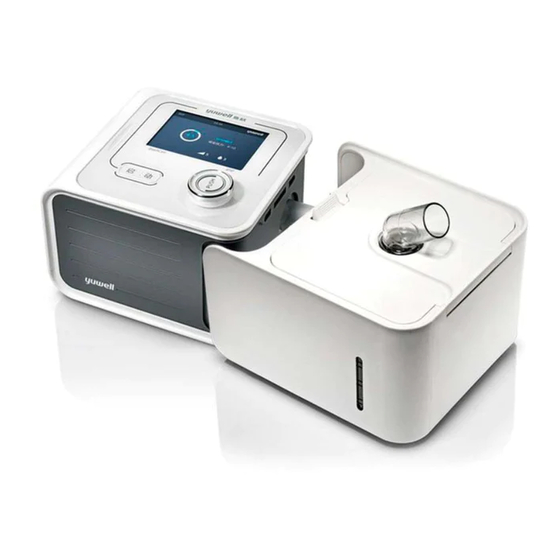

Yuwell BreathCare YH-360CPAP User Manual

Yuwell BreathCare YH-360CPAP User Manual

Positive airway pressure device

Advertisement

Suzhou Yuyue Medical Technology Co.Ltd
No.9 Jinfeng Road,Suzhou Science & T echnology
Town, Suzhou,Jiangsu,215163,PRC
http://www.yuwell.com
The manufacturer reserves the right to change the contents
Please read the user's manual closely before using!
BreathCare PAP
Positive Airway Pressure Device
User' s Manual
1030400-0A
Please read the user's manual closely before using!
Paper
Please check the certificate or the package for the production date.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BreathCare YH-360CPAP and is the answer not in the manual?

Questions and answers

Summary of Contents for Yuwell BreathCare YH-360CPAP

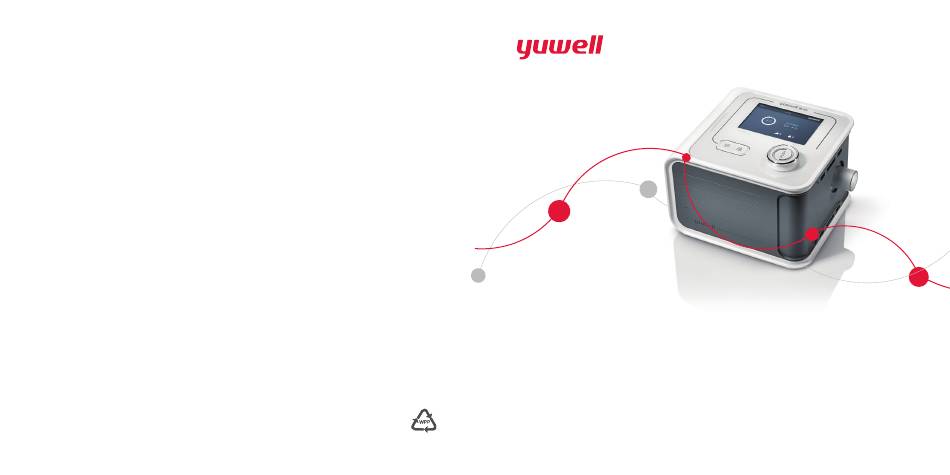

  • Page 1 Suzhou Yuyue Medical Technology Co.Ltd No.9 Jinfeng Road,Suzhou Science & T echnology User’ s Manual Town, Suzhou,Jiangsu,215163,PRC http://www.yuwell.com 1030400-0A The manufacturer reserves the right to change the contents Please read the user's manual closely before using! Please read the user's manual closely before using! Paper Please check the certificate or the package for the production date.
  • Page 2: Table Of Contents

    Contents Dear customers: This user's manual covers the guidance for installation, use, routine maintenance and other aspects of I. Intended uses ------------------------------------------------------------ YH-360CPAP/YH-380CPAP/YH-560APAP/YH-580APAP (hereinafter referred to as BreathCare PAP). II. Use notes ---------------------------------------------------------------- III. Side effects-------------------------------------------------------------- Warning IV. Product packing list ---------------------------------------------------- Please read the user's manual closely before using! V.
  • Page 3: Product Packing List

    IV. Product packing list VI. Button instructions Name Quantity Name Quantity START Press this button to start or stop the therapy. Host machine 1 set Heated Humidifier 1 set “Start/Stop”button Air hose 1 pc Power adapter and line 1 set Press the knob to enter the selected interface, to select the items or to save User’s manual 1 pc...
  • Page 4: Start/Stop The Therapy

    3. Press again “START” button to stop the therapy. 4. When the screen goes to sleep mode, press any button to wake it up and then press “START” again to stop the therapy. Fig. 1: Therapy start interface 3. Place the humidifying tank back in the 4.
  • Page 5: Ramp

    How to adjust the Humidity level: 2. RAMP Place the cursor on the Humidity option, press the knob to enter into the setting interface. This function makes the therapy more comfortable. The Ramp refers to the time duration required by Turn the knob to select the Humidity level, press the knob to save the settings and return to the stand the pressure to increase from the initial to the minimum gradually or the time duration of the therapy by interface.
  • Page 6: Clinical Menu

    Turn the knob to the return option and press the knob to return to the standby interface. (Fig. 6-2) In the APAP mode, set the maximum pressure, minimum pressure, therapy pressure and initial pressure by the same operational order. (Remark: No therapy pressure option is available in the network APAP mode) Description In the APAP mode, if the maximum pressure is set lower than the initial pressure, the therapy...
  • Page 7: Maintenance And Service

    Turn the knob to the return option and press the knob to return to the standby interface. (Fig. 6-2) XI. Maintenance and Service Daily maintenance is needed for the PAP device in order to ensure better therapy quality for users. The 5.
  • Page 8: Cleaning

    3. Inspection The humidifier tank, air hoses, air filters should be inspected regularly. A. Humidifier tank inspection: If there is any break or crack in the humidifier tank, the tankit should be replaced with a new one. If its separator's seal is damaged or cracked, the seal should be replaced with a new one. B.
  • Page 9: Reassembly

    Check the following table to see if the problem can be solved when any problem hashappened to the the PAP after reading or writing is prompted to have finished. device. Please contact yuwell company or the dealers if the table does not work. Do not disassemble the device privately.
  • Page 10: Warnings And Notes

    For any unusual noise, or the PAP device or power supply drop from desktop and caused damage and etc, please stop use and contact yuwell company or local dealers immediately. Do not disassemble the PAP device by yourself so as to avoid electric shocks.
  • Page 11: Technical Specifications

    The product should be used on a horizontal platform, and be kept away from water. Operation: +5℃ ~ +35℃ (+41℉ ~ + 95℉), (No condensation) All the parts of the device must use the products supplied by yuwell company, or the therapy Storage: -20℃~ +70℃ (-4℉ ~ +158℉) Temperature efficiency may be mitigated and damage caused to the device.
  • Page 12: Symbols

    Re-locate or re-set the receiving device. Ramp (min) 0-45min (adjustable , increment: 5 min) Increase the distance to this product. Maximum air 0-130LPM, Allowable tolerance ±5LPM Connect the device to a socket that located on another power line that leak compensation does not supply power to the units being interfered with.
  • Page 13 The instrument conforms to the requirements of electromagnetic compatibility of GB9706.1: Guidance and manufacturer's declaration – electromagnetic immunity 2007/YY0505-2012. The instrument doesn't require any installation. Please use and operate this –for all EQUIPMENT and SYSTEMS instrument according to the Guidance and Manufacturer's Declaration in below table. Guidance and manufacturer's declaration –...
  • Page 14 Radiation 3 V (Effective value) Recommended separation distance Power If image distortion occurs, it may be conduction 150 kHz ~ 80 MHz (Effective value) d=1.2√P frequency necessary to position the BreathCare PAP GB/T17626.6 d=1.2√P 26MHz ~ 800MHz magnetic field 3A/m 3A/m device further from sources of power d=1.2√P 800MHz ~ 2.5GHz...
  • Page 15: Warranty

    Dealer Any damage caused by splashed water. Yuwell Company has the final right to explain the warranty for this product. The following cases are not included in the warranty scope: 1. Failure or damage caused by any unauthorized modification and repair by non-authorized technicians from yuwell company.
  • Page 16 Dealer The following cases are not included in the warranty scope: 1. Failure or damage caused by any unauthorized modification and repair by non-authorized technicians from yuwell company. User: 2. Malfunction or damage caused by any improper use or maintenance.
  • Page 17 Rated maximum Over the frequency range 150 kHz ~ 80 MHz, field strengths should be less than 3 V/m. Separation distance according to frequency of transmitter/m output power of Over the frequency range 26MHz ~ 1GHz, and immunity test level less than 3V/m, continuously 150 kHz to 80 MHz 80 kHz to 800 MHz 800 MHz to 2.5 GHz...
