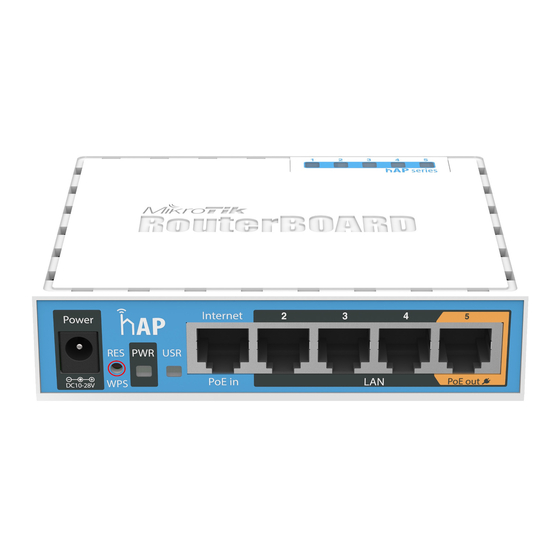

RouterBOARD 951-2n
Quick Setup Guide and Warranty Information
Connecting
1. Connect your WAN cable to port 1, and LAN PCs to ports 2-5
2. Set LAN computer IP configuration to automatic (DHCP)
3. Default IP address from LAN/WLAN is 192.168.88.1, open this
address in your web browser to start configuration. The username is
admin and there is no password (Alternatives are SSH, Telnet or
Winbox tool)
4. Wireless AP mode is enabled by default, you can connect to the SSID
"MikroTik". Log into your router and configure a WPA password to
secure your network
Powering
The device accepts powering from the power jack or from the first ethernet port (Passive PoE):
DC power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) accepts 8-30V DC
The first ethernet port accepts passive Power over Ethernet accepts 8-30V DC
Under maximum load, the power consumption of this device is 7W
Booting process
RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here
http://wiki.mikrotik.com/wiki/Category:Manual
This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet
cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of
192.168.88.1 with the username admin and no password.
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button
of the device when starting it until the LED light turns off, and Groove will start to look for Netinstall servers.
In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More
information here:
http://wiki.mikrotik.com/wiki/First_time_startup
Extension Slots and Ports
Five individual 10/100 Ethernet ports, supporting automatic cross/straight cable correction (Auto MDI/X),
so you can use either straight or cross-over cables for connecting to other network devices. The First
Ethernet port accepts 8-30V DC powering from a passive PoE injector.
One Integrated Wireless 2.4GHz 802.11b/g/n, 1x1 MIMO with two onboard PIF antennas, max gain 1.5dBi
One USB 2.0 port
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions.
7-May-2012
