MikroTik 912UAG Series Manual

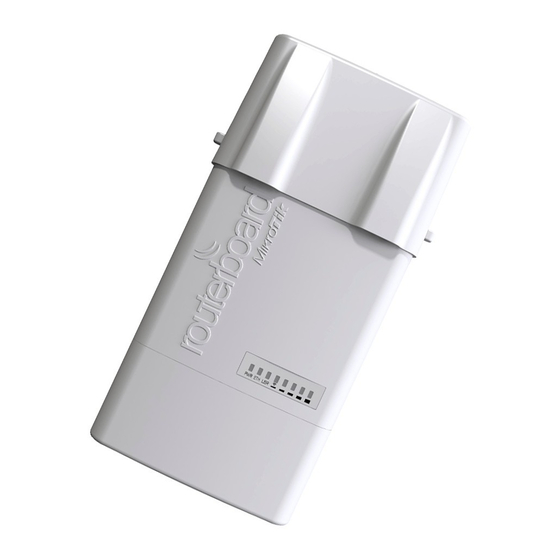

RouterBOARD 912UAG series

Mounting

912UAG series router for professional use. Each of the devices comes in ESD protective packaging. When
handling electrical equipment please observe the following safety precautions:
use a wrist grounding strap when unpacking and working with electrical components to avoid electrical
•
discharge (ESD) damage,
after unpacking please place the router on the anti-static mat,
•
when mounting unit make sure there are no objects that can damage or touch the PCB plate,
•
note that ETH, USB port and DC jack are extending over the perimeter of PCB plate.
•
The device can be mounted in your desired location using the factory provided four holes in a PCB plate, located
on each side of the device.
Warning! This equipment should be installed and operated with a minimum distance of 380 cm between the device
and your body. Operation of this equipment in the residential environment could cause radio interference.

Connecting

1. Choose your powering solution, please see
2. If needed, connect accessories to the miniPCIe slot, antenna cables to the miniPCIe card and insert SIM
card.
3. Connect your ethernet cable to the gigabit ethernet port.
4. Connect your direct input power jack if not using POE, to start up the device.
5. The device will boot up and after short beep Wireless network will be available for connecting.
6. Open network connections on your pc, mobile phone or other device and search for MikroTik wireless
network and connect to it.
7. Once connected to the wireless network, open http://192.168.88.1 in your web browser to start
configuration, since there is no password by default, you will be logged in automatically.
8. We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest
version to ensure the best performance and stability.
9. Choose your country, to apply country regulation settings and set up your password in the screen that
loads.

Powering

The device accepts power with the following modes:
Passive 10-30 V PoE to the ethernet port. The higher voltage needed to compensate for power loss on
•
long cables. At least 18 V is suggested.
Direct input to the power jack 10-30 V.
•
Maximum power consumption 14 W.

Configuration

RouterOS includes many configuration options in addition to what is described in this document. We suggest
starting here to get yourself accustomed to the possibilities: http://mt.lv/help. In case IP connection is not available,
the Winbox tool (http://mt.lv/winbox) can be used to connect to the MAC address of the device from the LAN side
(all access is blocked from the Internet port by default).
For recovery purposes, it is possible to boot the device from the network, see a section
See mikrotik.com/products for the latest version of this document.
P owering section for possibilities.
Reset button.
Document #49289 Modified on: 14.MAY.2019
