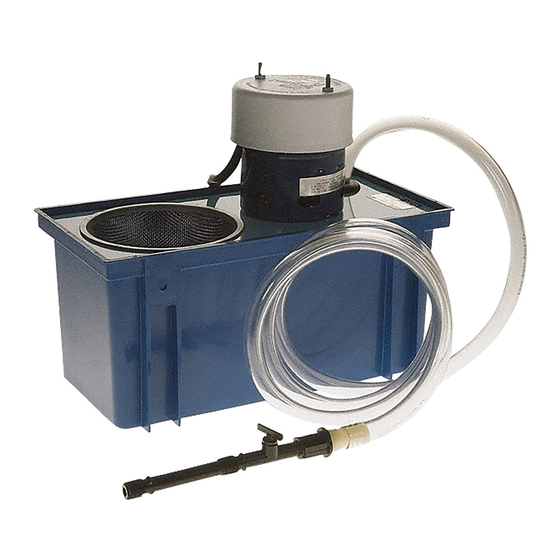

Little Giant VMC-1 Owner's Manual

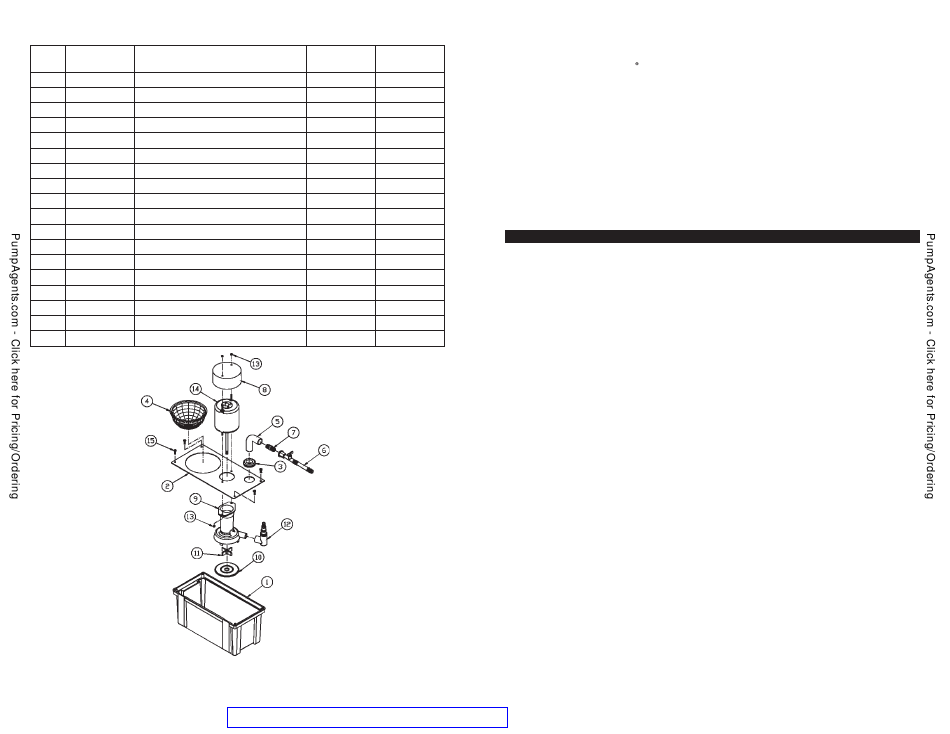

REPLACEMENT PARTS LIST
ITEM PART
DESCRIPTION
NO. NO.
1 153504 Tank
2 160920 Cover, Tank
3 925002 Grommet
4 160206 Screen, Chip
5 944202 Tubing, Vinyl, 1/2" I.D. x 6'
6 170387 Valve, Flow Control
7 941007 Adaptor, 1/4" MNPT x 1/2" Hose
8 140509 Cap, Motor
9 140229 Stand/Volute Assembly
10 140309 Plate, Base
11 140412 Impeller
12 140942 Elbow Assembly
13 920006 Nut, #8-32
14 977206 Motor, 115V, 4' Cord
14 977708 Motor, 230V, 6' Cord
15 902436 Screw, 8-18 x 1/2"
540452 Replacement Pump Assy.
540454 Replacement Pump Assy.
©Copyright 2003 Little Giant Pump Company
560610 560620
VMC-1 VMC-1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
4 4
1
1
4 4
1
1
Form 994529–8/03:
Machine Tool Coolant
GIANT
Little
Pump Company
Little Giant Pump Company
P. O. Box 12010
Oklahoma City, OK 73157-2010
(405) 947-2511 • Fax: (405) 947-8720
• Assembly
• Safety
CAUTION:
Read Safety Guidelines and Instructions Carefully.
INTRODUCTION
LITTLE GIANT MACHINE TOOL COOLANTS are carefully packaged, inspected and
tested to insure safe operation and delivery. When you receive the unit, examine it
carefully to determine that there are no broken or damaged parts that may have occurred
during shipment. If damage has occurred, make notation and then notify the firm from
which you purchased the unit. They will assist you in replacement or repair if required.
SAFETY GUIDELINES
1. Read all instructions and safety guidelines thoroughly. Failure to follow the guidelines
and instructions could result in serious bodily injury and/or property damage.
2. Do not pump flammable liquids such as gasoline or fuel oil with Little Giant pumps.
3. When working on the MACHINE TOOL COOLANT or pump, make sure that the power
is turned off. Make sure that the pump is disconnected from the power supply.
4. Make sure that the outlet for the pump is grounded.
MACHINE TOOL COOLANT PUMP ASSEMBLY
1. Unpack MACHINE TOOL COOLANT from the carton. Check the parts included with
the diagram in this instruction sheet for parts.
2. Assembly:
A. Feed tubing through grommeted discharge hole and attach it to pump discharge.
Attach flexible nozzle/valve assembly to the other end of flexible tubing.
B. Install motor/base assembly onto tank. Be sure chip collector is in place.
C. Your MACHINE TOOL COOLANT is now ready for operation. If any leakage
occurs, tighten the leaking connection.
MAINTENANCE
Never let sludge or excessive chips build up around pump. Periodically clear out the chip
collector and any sludge that may accumulate in the bottom of the tank. The chip
collector is designed to filter out abrasive media that may damage the pump.
Never operate MACHINE TOOL COOLANT without chip collector.
Do not use cutting oils with viscosities greater than the pump can handle.
Owner's Manual
VMC-1
• Maintenance
• Repair Parts
