Little Giant CONDENCATE Series Owner's Manual

OWNER'S MANUAL

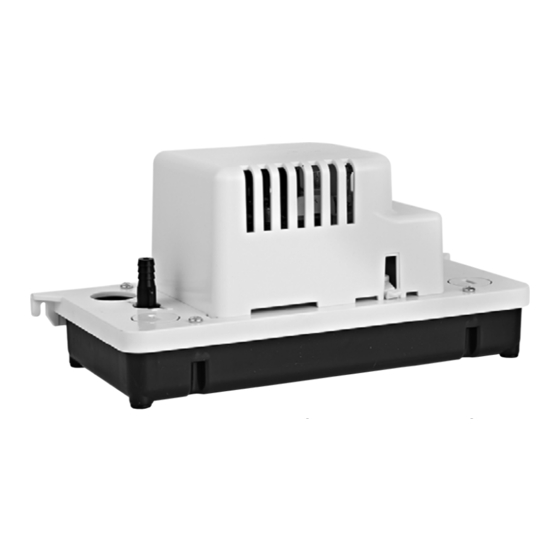

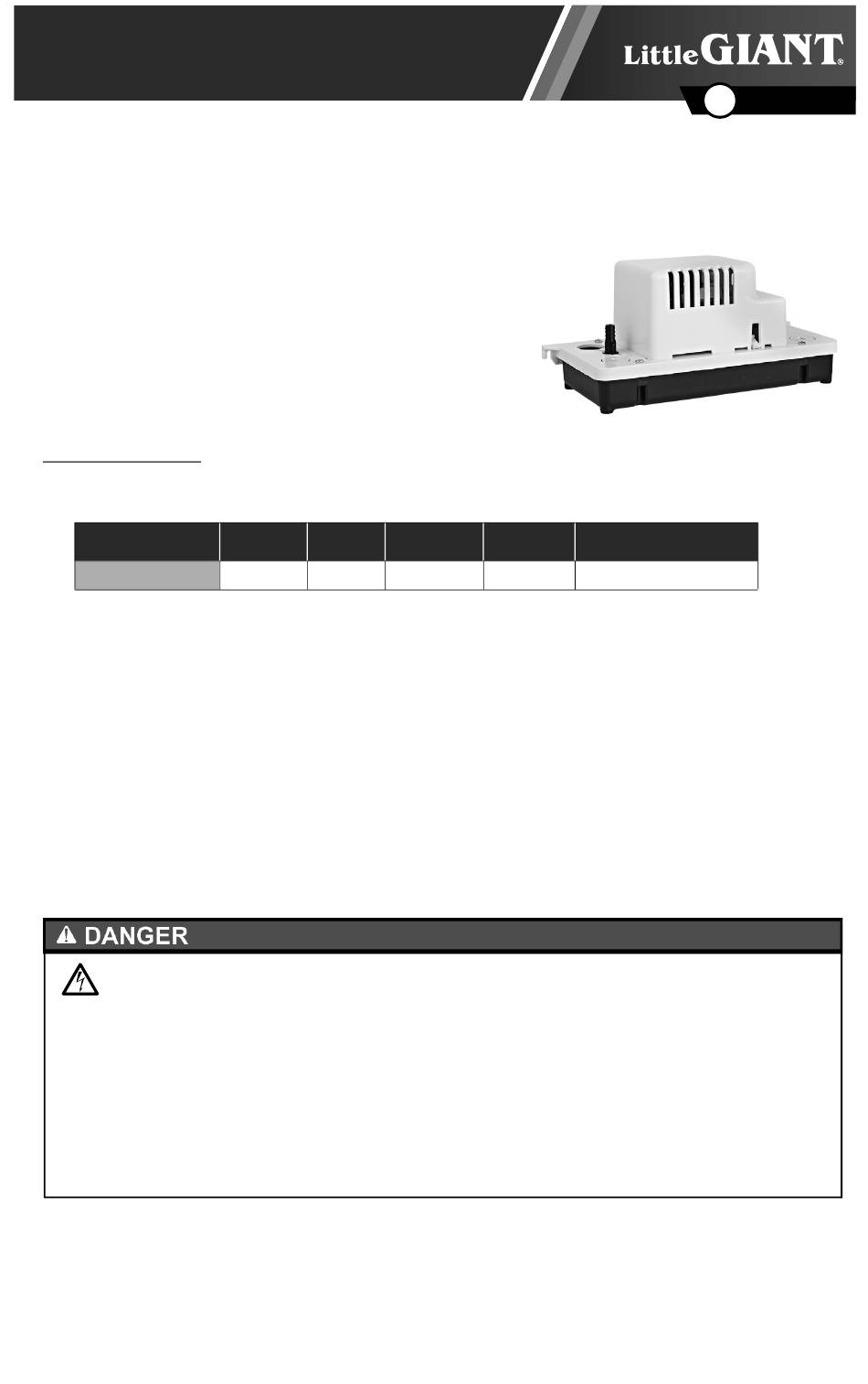

VCCA-20S CONDENSATE PUMP SERIES
This condensate pump automatically removes condensate water that drips from an air conditioner evapo-
rator coil, refrigeration equipment coil, condensing furnace, or condensing boiler. The pump is controlled
by a float switch mechanism, which automatically starts and stops the pump.
All models also include a high water level switch, which opens a
thermostat circuit when the pump reservoir is full, stopping pro-
duction of condensate. Alternatively, this switch can be reconfig-
ured to close a circuit, which can operate an external alarm or
relay, (purchased separately).
This product is covered by a Limited Warranty for a period of
12 months from the date of original purchase by the consumer. For complete warranty information, refer to
www.LittleGiant.com.
Specifications
Model
VCCA-20S
SAFETY INSTRUCTIONS
This equipment should be installed and serviced by technically qualified personnel who are familiar with
the correct selection and use of appropriate tools, equipment, and procedures. Failure to comply with
national and local electrical and plumbing codes and within Little Giant recommendations may result in
electrical shock or fire hazard, unsatisfactory performance, or equipment failure.
Know the product's application, limitations, and potential hazards. Read and follow instructions carefully to
avoid injury and property damage. Do not disassemble or repair unit unless described in this manual.
Refer to product data plate(s) for additional precautions, operating instructions and specifications.
Failure to follow installation or operation procedures and all applicable codes may result in the following
hazards:
Risk of death, personal injury, or property damage due to explosion,
fire, or electric shock.
• Do not use to pump flammable, combustible, or explosive fluids such as gasoline, fuel oil, kerosene, etc.
• Do not use in explosive atmospheres or hazardous locations as classified by the NEC, ANSI/NFPA70.
• Do not handle a pump or pump motor with wet hands or when standing on a wet or damp surface, or in water.
• When a pump is in its application, do not touch the motor, pipes, or water until the unit is unplugged or electri-
cally disconnected.
• If the power disconnect is out of sight, lock it in the open position and tag it to prevent unexpected application of
power.
Volts HZ
230 50
Amps Watts
0.6 75
EN
English
Shut Off
5.2 m
